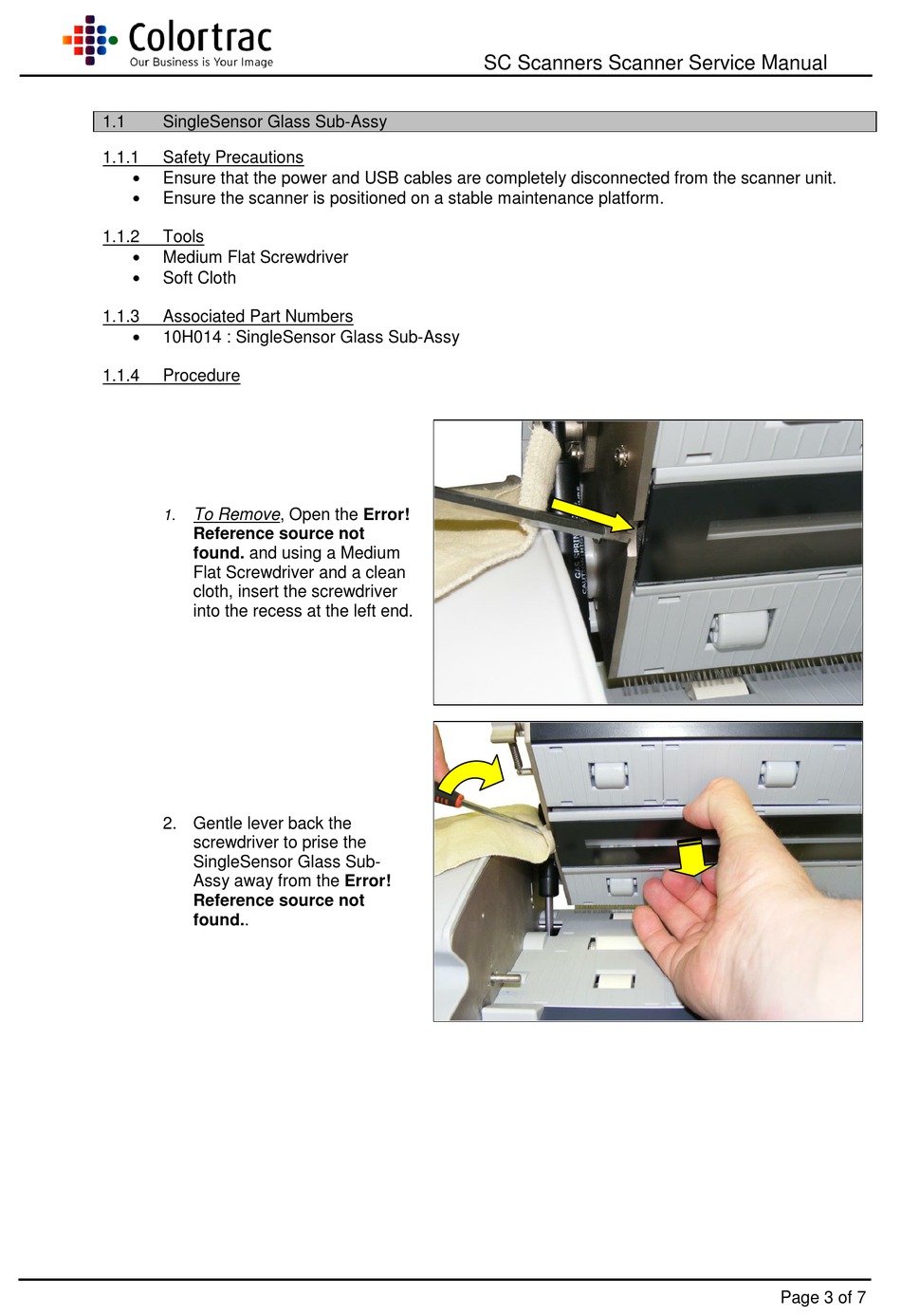

1.1

SingleSensor Glass Sub-Assy

1.1.1

Safety Precautions


Ensure that the power and USB cables are completely disconnected from the scanner unit.

Ensure the scanner is positioned on a stable maintenance platform.
1.1.2

Tools


Medium Flat Screwdriver

Soft Cloth
1.1.3

Associated Part Numbers


10H014 : SingleSensor Glass Sub-Assy
1.1.4

Procedure

To Remove, Open the Error!
1.
Reference source not
found. and using a Medium
Flat Screwdriver and a clean
cloth, insert the screwdriver
into the recess at the left end.
2. Gentle lever back the
screwdriver to prise the
SingleSensor Glass Sub-
Assy away from the Error!
Reference source not
found..
SC Scanners Scanner Service Manual
Page 3 of 7
