1

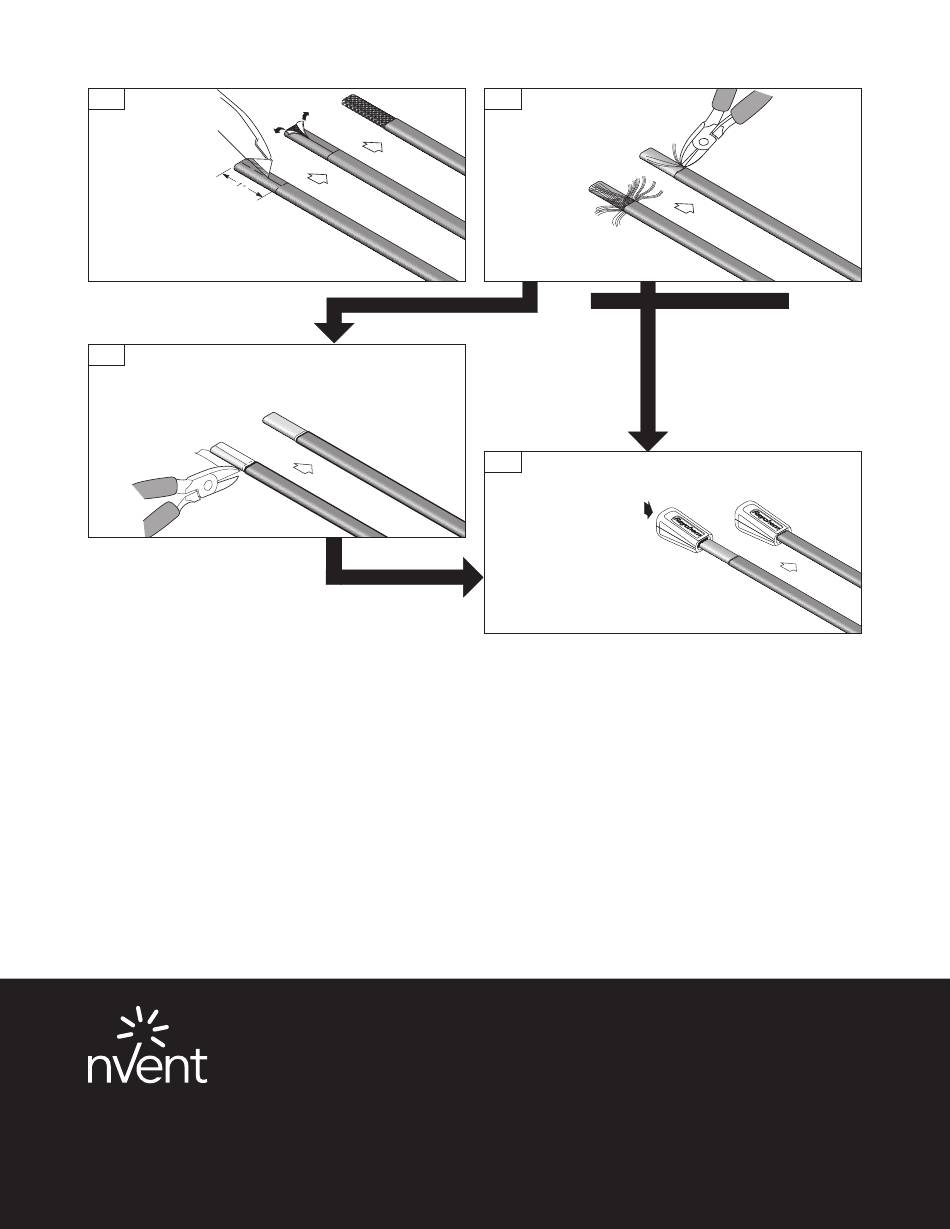

• Score down and around outer
jacket 1 inch from the end.
• Remove the outer jacket.
• Do not cut or damage inner jacket.
2A
• Using wire cutters, cut away aluminum wrap close to
braid and outer jacket.
North America
Tel +1.800.545.6258
Fax +1.800.527.5703
thermal.info@nvent.com
©2018 nVent. All nVent marks and logos are owned or licensed by nVent Services GmbH or its affiliates. All other trademarks are the property of their respective owners.
nVent reserves the right to change specifications without notice.
Raychem-IM-H55428-RayClicE-EN-1805
HWAT
Europe, Middle East, Africa
Tel +32.16.213.511
Fax +32.16.213.604
thermal.info@nvent.com
2
• Remove exposed braid.
IceStop, XL-Trace, and RaySol
3
• Push end seal completely onto heating cable.
Note: The end seal can be
installed only once; it cannot
be removed from the heating
cable. Do not use until ready
for final installation.
Asia Pacific
Tel +86.21.2412.1688
Fax +86.21.5426.3167
cn.thermal.info@nvent.com
Latin America
Tel +1.713.868.4800
Fax +1.713.868.2333
thermal.info@nvent.com
