nvent RAYCHEM RayClic-E Installation Instructions

RayClic-E
RayClic End Seal Kit Installation Instructions
APPROVALS
718K Pipe Heating Cable
877Z De-Icing and Snow Melting
Not UL Listed with XL-Trace
heating cable for buried piping
With HWAT, IceStop, and
XL-Trace heating cables
APPROVED
Class I, Div. 2, Groups A, B, C, D
hazardous locations with GM-XT only
KIT CONTENTS
Qty Description

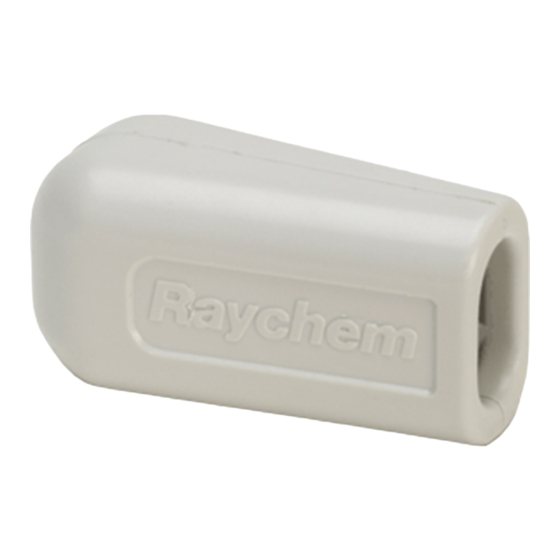

1 Gel-filled end seal
WARNING:
This component is an electrical device that
must be installed correctly to ensure proper
operation and to prevent shock or fire. Read
these important warnings and carefully follow
all the installation instructions.
• To minimize the danger of fire from
sustained electrical arcing if the heating
cable is damaged or improperly installed,
and to comply with the requirements of
DESCRIPTION
This end seal is for use with nVent RAYCHEM IceStop, XL-Trace,
HWAT and RaySol heating cables. Materials for one end seal
termination are included in this kit. The appropriate nVent
RAYCHEM power connection kit must also be used. These
installation instructions should be used in conjunction with the
IceStop, XL-Trace, HWAT and RaySol System Installation and
Operation Manuals. For technical support contact your nVent
representative or call nVent (800) 545-6258.
Note: The nVent RAYCHEM RayClic-E end seal can be installed
only once; it cannot be removed from the heating cable. Do not
use until ready for final installation.
TOOLS REQUIRED
• Utility knife
• Diagonal cutters
-w
nVent, agency certifications, and national
electrical codes, ground-fault equipment
protection must be used. Arcing may not be
stopped by conventional circuit breakers.
• Bus wires will short if they contact each
other. Keep bus wires separated.
• The black heating cable core is conductive
and can short. It must be properly insulated
and kept dry.
• Component approvals and performance are
based on the use of nVent-specified parts
only. Do not use substitute parts or vinyl
electrical tape.
• Use only fire-resistant insulation materials
such as fiberglass wrap.
• Leave these instructions with end user for
reference and future use.
