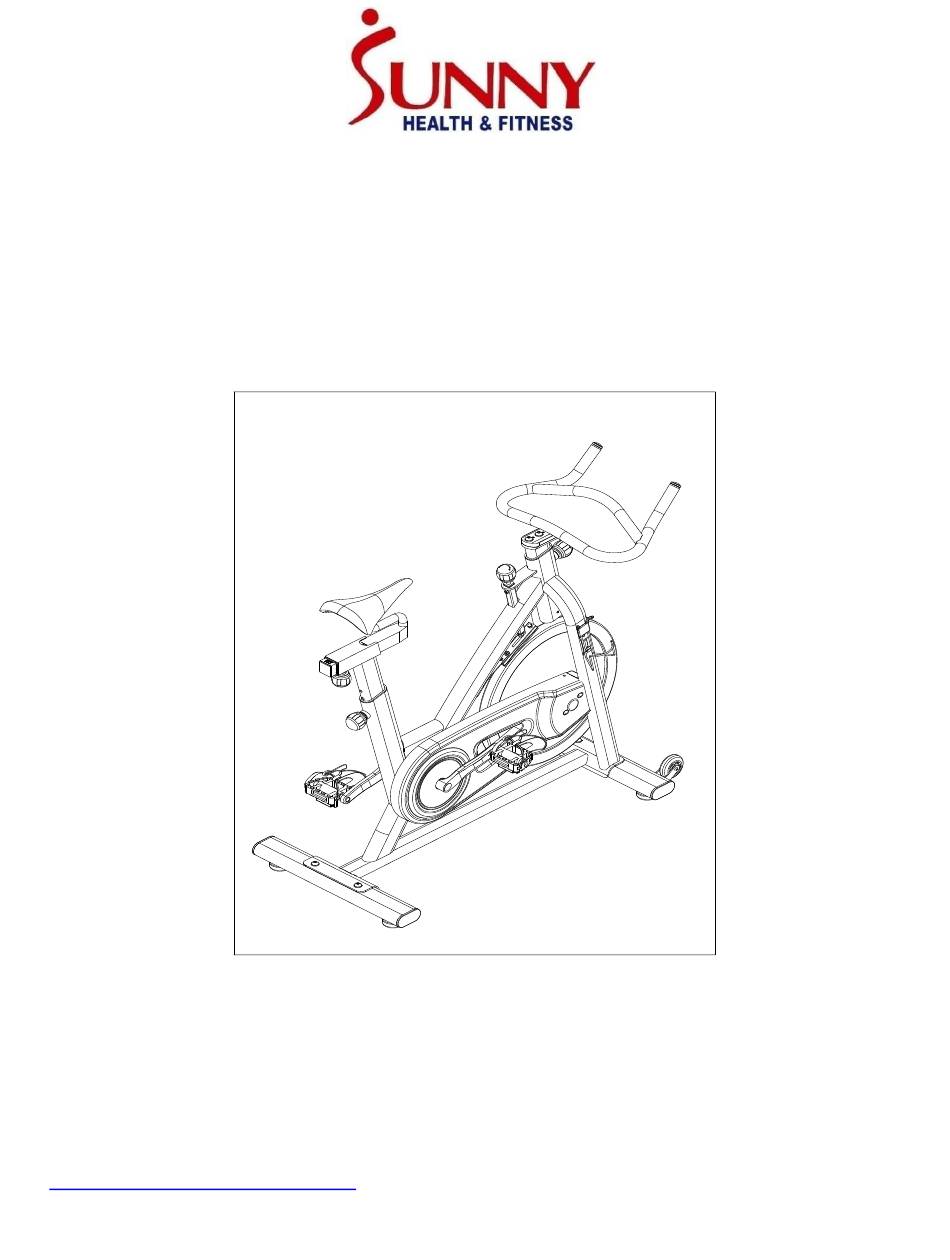

- Page 1 CHAIN DRIVE INDOOR CYCLING BIKE SF-B1002C USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. -
Page 3: Exploded Diagram
EXPLODED DIAGRAM... -
Page 4: Hardware Package
HARDWARE PACKAGE #10 (d10*Φ20*2.0) 4PCS #9 (M10*25*S6) 4PCS #20 (d10*Φ20*1.5) 2PCS #19 (M10*25*S6) 2PCS #78 (S6) 1PC #80 (S13-15) 1PC #79 (S13-14-15) 1PC #81 (S8-14-22) 1PC Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓... -
Page 5: Parts List
PARTS LIST DESCRIPTION SPECIFICATION QTY. DESCRIPTION SPECIFICATION QTY. Main Frame Jump Ring d20*Φ26*0.3 Seat Post Wave Washer Handlebar M10*1.25*H7.5*S14 Cover For Middle Φ50*Φ32*33 Handlebar Post Axle Front Stabilizer 47L/R Crank Arm 170 "L" "R" 9/16 M10*Φ49*46 Rear Stabilizer Knob Seat Slider M10*H7*S17 Φ10*240*M10*15*M M8*H7.5*S13... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP 1: Remove 4 Screws (No. 17) with Allen Wrench (No. 78), #78 S6 1PC then remove and discard Rear Shipping Tube (No. 76) and Front Shipping Tube (No. 77). You can save these parts for future packaging and transportation of the bike if desired. - Page 7 STEP 3: #82L/R 9/16*20*H8*S22 2PCS #81 S8-14-22 1PC Left Pedal: Remove the preassembled Left Nylon Nut (No. 82L) from the Left Crank Arm (No. 47L). Align the #80 S13-15 1PC Left Pedal (No. 83L) with the Left Crank Arm (No. 47L) at 90°...
- Page 8 STEP 5: #79 S13-14-15 1PC #80 S13-15 1PC Loosen and remove the [Seat Post] Adjustment Knob (No. 16). Insert Seat Post (No. 2) into the post housing located on the back of the Main Frame (No. 1). Adjust the Seat Post (No.
- Page 9 ADJUSTMENTS & USAGE GUIDE ADJUSTING THE BALANCE In order to achieve a smooth and comfortable ride, you must ensure that the stability of the bike is secured. If you notice that the bike is unbalanced during use, you can adjust the foot levelers located beneath the front and rear stabilizers.
- Page 10 DISMOUNTING THE BIKE WARNING! Do not dismount the bike or remove your feet from the pedals until the pedals have stopped completely. You can stop the flywheel at anytime by pushing down on Tension Knob (No. 48). ADJUSTING THE HANDLEBAR Loosen the [handlebar adjustment] Knob (No.
-
Page 11: Maintenance Instructions
MAINTENANCE INSTRUCTIONS This is general information for daily, weekly and monthly maintenance to be performed on your bike. DAILY MAINTENANCE MONTHLY MAINTENANCE After each exercise session, wipe down all 1. Check all hardware is secure, such as: water the equipment: seat, frame, handlebars. Pay bottle holder, flywheel nuts, belt/chain guard special attention to the seat post, handlebar bolts, brake caliper lock nuts and brake...
