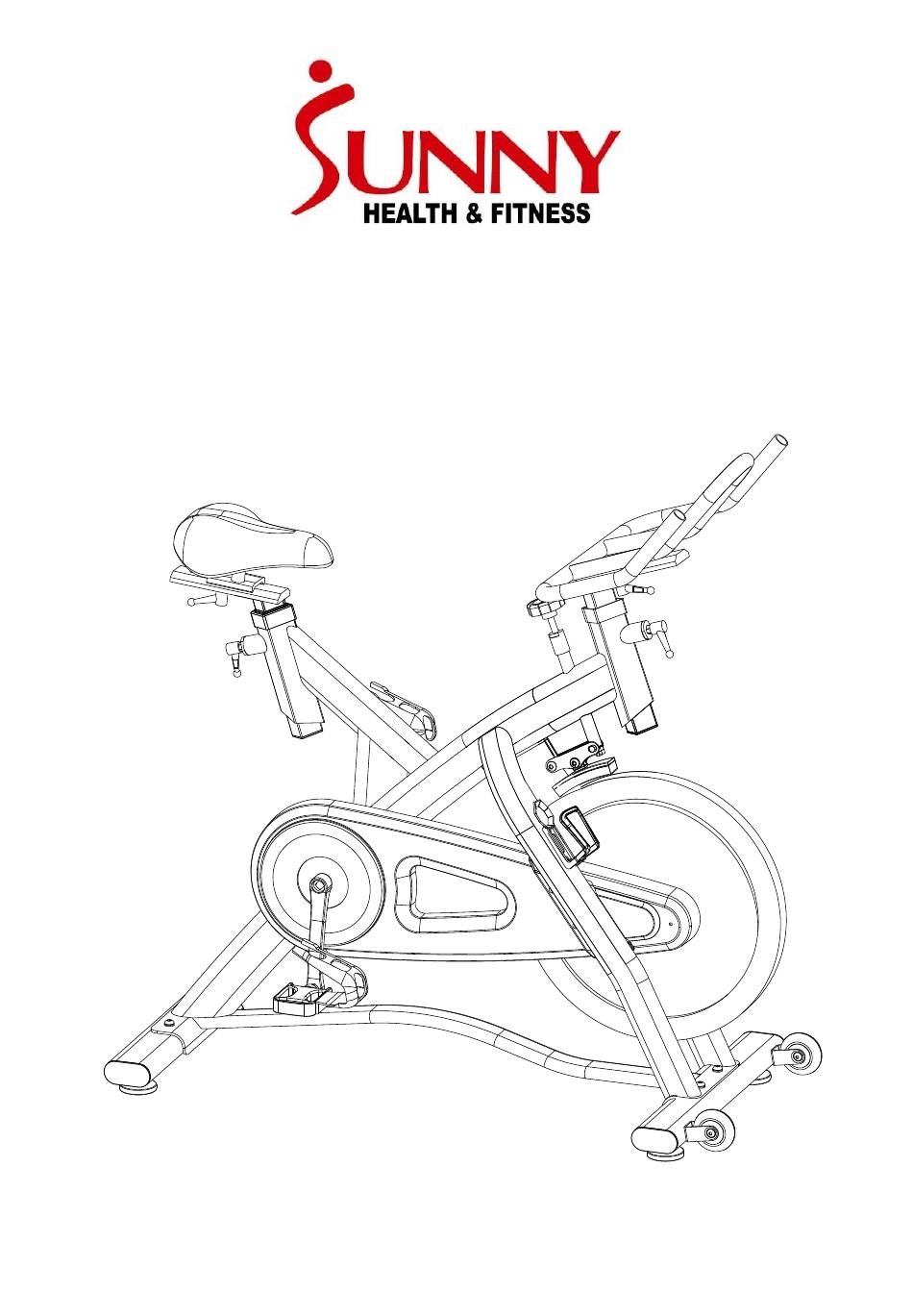

- Page 1 SUNNY INDOOR CYCLING BIKE USER MANUAL SF-B1003 Page 1 of 12...
-
Page 2: Table Of Contents
CONTENTS SAFETY GUIDELINE ………………………………………..…...…….……..…...3 UNIT GENERAL KNOWLEDGE …………..…………...……..…….…….…..4 EXPLODED DRAWING …………..…………...………………..………..……..5 PARTS LIST ………..…………...…………………………..……………..…....6 INSTALLATION …………………………………….………….…….……...…….…8 NOTICE …………………………………….………….…….……………..….……11 INSTRUCTION ON CHANGING BRAKE PAD…….…….…….…….…….….…12 Page 2 of 12... -
Page 3: Safety Guideline
SAFETY GUIDELINE 1. Once assemble fully, please inspect to make sure all hardware parts such as bolts, nuts and washers are positioned and in stability situation. 2. Always inspect the safety chain guard that protects the moving parts of the bike to be in safe and in good order. -
Page 4: Unit General Knowledge
UNIT GENERAL KNOWLEDGE The unit belongs to Aerobic Exercise equipment. Its training objective is to increase oxygen inhaled and blood recycling through long time training (stamina exercise), active your heart blood cycling and lung breath system so that all the organs of your body can get plenty of oxygen and nutrition, thus whole body maintains a good fitness situation. -
Page 5: Exploded Drawing
EXPLODED DRAWING Page 5 of 12... -
Page 6: Parts List
SPARE LIST DESCRIPTION SPECIFICATION Main Frame 40*80*1.5T*498L Rear Base Flat Oval Pedal House Hexagon Nut φ31*M24*14.5L Inner Nut 40*80*1.5T*498L Flat Oval Front Base 1 set 9/16“-20UNF Pedal □40*40*1.5T*250L Handlebar Post Handlebar M10*25L( ） Iron Handle φ10.2*φ30*4T Flat Washer Small Chain Cover Big Chain Cover Chain Cover Fixation Chain Adjuster Welding... - Page 7 DESCRIPTION SPECIFICATION 1-3/8“-24UNF-RH Bi-direction Small Chain Wheel Drop Resistant Screws ( Hexagonal, M8xP1.0x20L(30#), Subtense: 14) Class :8.8 Pedal Strap 40*40*2T Tube Mat Suitable for Square Tube 50*50*2T, Outer with Inner with 40*40 Tube Bushing Flat Washer φ12*φ20*2T R/L Crank 1set 9/16"...
-
Page 8: Installation
INSTALLATION Page 8 of 12... - Page 9 Steps of Installation: Step 1：Fix Front Base and Back One. According to the following figure, fix the Front Base (6) and Back Rear Base (2) to Main Frame (1) respectively with 4pcs of Inner Hexagon Flat Round Head Screw (34) and Flat Washer (33) by Inner Hexagon Wrench for fastening.
- Page 10 Step 4：Fasten Handlebar. Refer to the following figure, put the Handlebar (9) onto the Handlebar Post (8), and fasten them through Flat Washer (11) and Handle (10). Step 5：Fix Seat Slider and Seat. Refer to the following figure, fix Seat Slider(20) to Seat Post (19) through Flat Washer（11）and Handle (10), and then fasten Seat (21) to Seat Slider (20) through Opening Wrench 13# (22).
-
Page 11: Notice
Step 7: Installation complete. After installation, please check carefully whether all screws and nuts are fastened well or not. NOTICE 1. Please check all the nuts, nut caps and pedals are in securing state regularly. If you find any defective parts, please do not do any exercise until they are repaired well. -
Page 12: Instruction On Changing Brake Pad
INSTRUCTION ON CHANGING BRAKE PAD Step 1: adjust Tensioner Knob (26) counter-clockwise so that Brake Pad can be apart from Flywheel. Step 2: unscrew 2pcs Inner Hexagon Hollow Bolt with 2pcs of Inner Hexagon tools (Remarks: the center one should be unscrewed completely, the other one just be unscrewed for a half is OK), and then take down Brake Pad Holder and Brake Pad (27).
