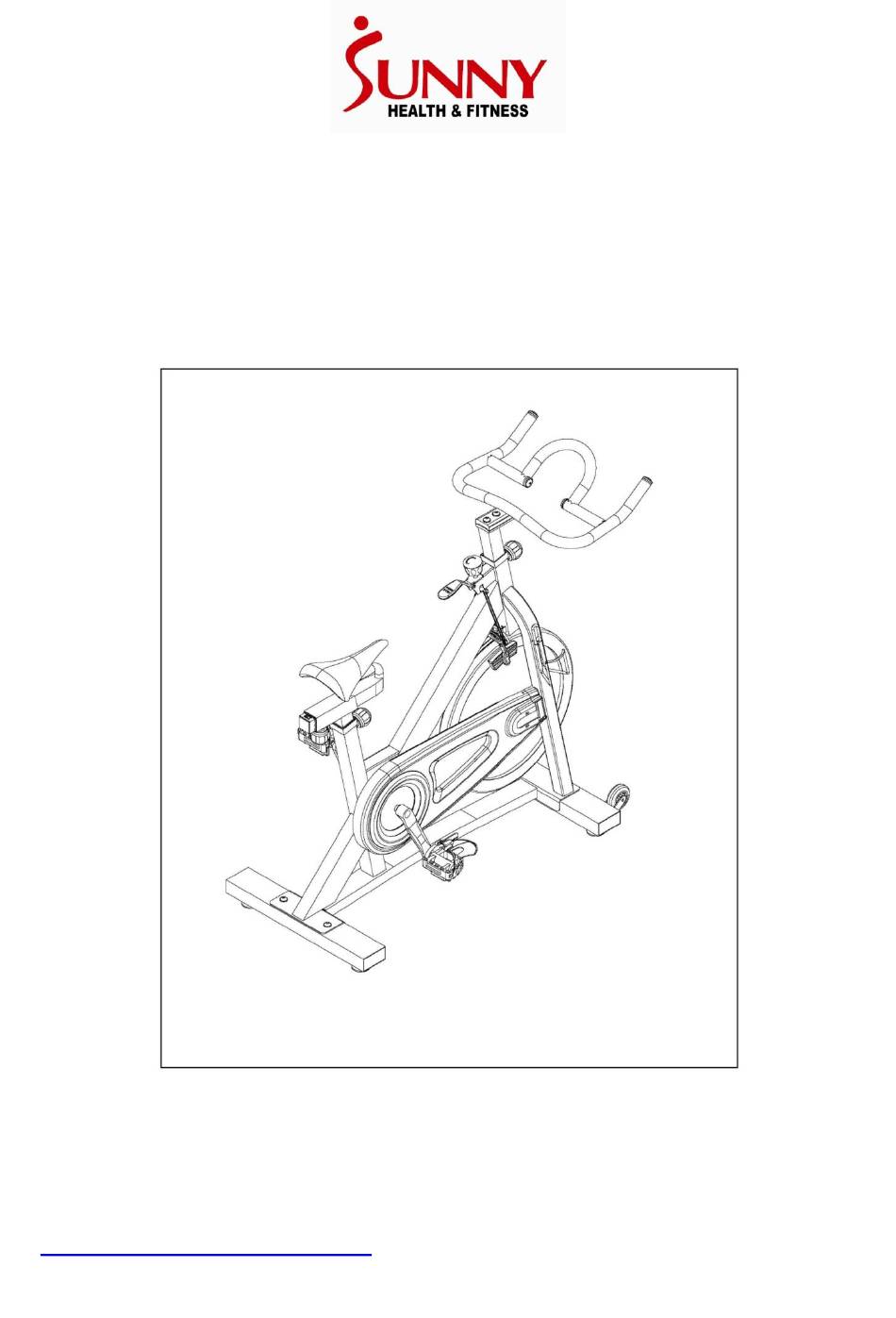

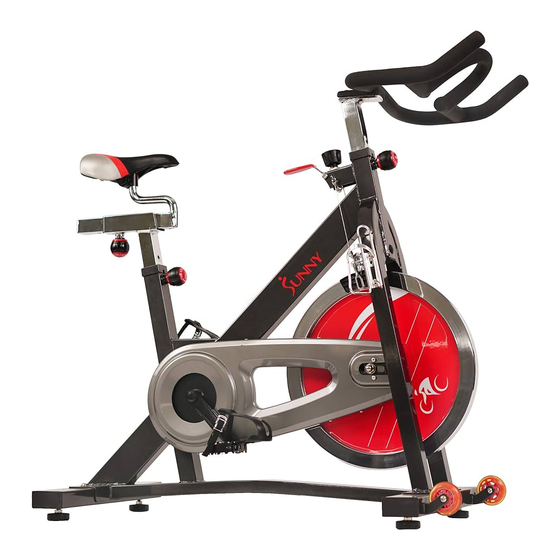

- Page 1 INDOOR CYCLING BIKE SF-B1401 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED or 1-877-90SUNNY (877-907-8669). support@sunnyhealthfitness.com...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. -
Page 3: Exploded Diagram
EXPLODED DIAGRAM... -
Page 4: Hardware Package
HARDWARE PACKAGE #34 (M10*25*S6) 4PCS #33 (d10*Φ20*1.5) 4PCS #66 (M10*25*S6) 2PCS #67 (d10*Φ20*1.5) 2PCS #74 (S6) 1PC #75 (S13-15) 1PC #78 (S8,14,22) 1PC #76 (S14,15,17) 1PC... -
Page 5: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. M10x25XS6 Main Frame Flat Roundhead Screw Seat Post 35L/R Pedal 1 pr. Seat Slider Flywheel Handlebar Post Flywheel Spindle M8*83* Ø12*5 Handlebar Chain Adjuster Welding M12*1.0 Ø18*Ø12.1*18.5 Cap Nut Sleeve M8*H7.5*S13 Rear Stabilizer Nylon Nut Front Stabilizer Brake Pad... - Page 6 d10*Φ20* 1.5 S13, S15 Flat Washer Wrench S14, S15, S17 Front Packing Base Spanner 9/16*20*H9*S22 Rear Packing Base Left Nylon Nut M10*16*S6 9/16*20*H9*S22 Flat Roundhead Screw Right Nylon Nut S8,14,22 Bottle Holder Spanner M5*12 ST4.2*16 Screw Screw D5*Φ13*1 Flat Washer Wave Washer Allen Wrench Ordering Replacement Parts (U.S.
-
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP 1: Unscrew the 4 Flat Roundhead Screws (No. 70) and 4 Washers (No. 33) from the Main Frame (No. 1) with Allen Wrench (No. 74), then remove the Front & Rear Packing Bases (No. 68 & No. 69). NOTE: You may discard the Front &... - Page 8 STEP 3: IMPORTANT! Read instructions carefully, failure to do so may cause permanent damage to your bike. Remove the 2 Left & Right Nylon Nuts (No.77L & 77R) located on the 2 Pedals (No.35L/R). The inside of the nuts are different colors.
- Page 9 STEP 5: Loosen the [seat adjustment] Knob (No. 23) and slide the Seat Slider (No. 3) into the Seat Post (No. 2). Retighten the Knob (No. 23) to fix the Seat (No. 22) onto the Seat Slider (No. 3) with Wrench (No.75). Attach the Handlebar (No.
- Page 10 ADJUSTMENTS & USAGE GUIDE ADJUSTING THE BALANCE In order to achieve a smooth and comfortable ride, during use you must ensure that the stability of the bike is correct. If during use you notice that the bike is unbalanced you can adjust the base levelers located beneath the front and rear bases.
- Page 11 ADJUSTING THE SEAT The seat of this bike is fully adjustable as it moves Up, Down, Fore (forward), Aft (backward). To adjust the height of the Seat Post (No. 2), loosen and pull the Knob (No. 23) outward, then raise or lower the seat to the desired height.
-
Page 12: Maintenance Instructions
MAINTENANCE INSTRUCTIONS This is general information for daily, weekly and monthly maintenance to be performed on your bike. DAILY MAINTENANCE MONTHLY MAINTENANCE After each exercise session, wipe down all 1. Check all hardware is secure, such as: water the equipment: seat, frame, handlebars. Pay bottle holder, flywheel nuts, belt/chain guard special attention to the seat post, handlebar bolts, brake caliper lock nuts and brake...
