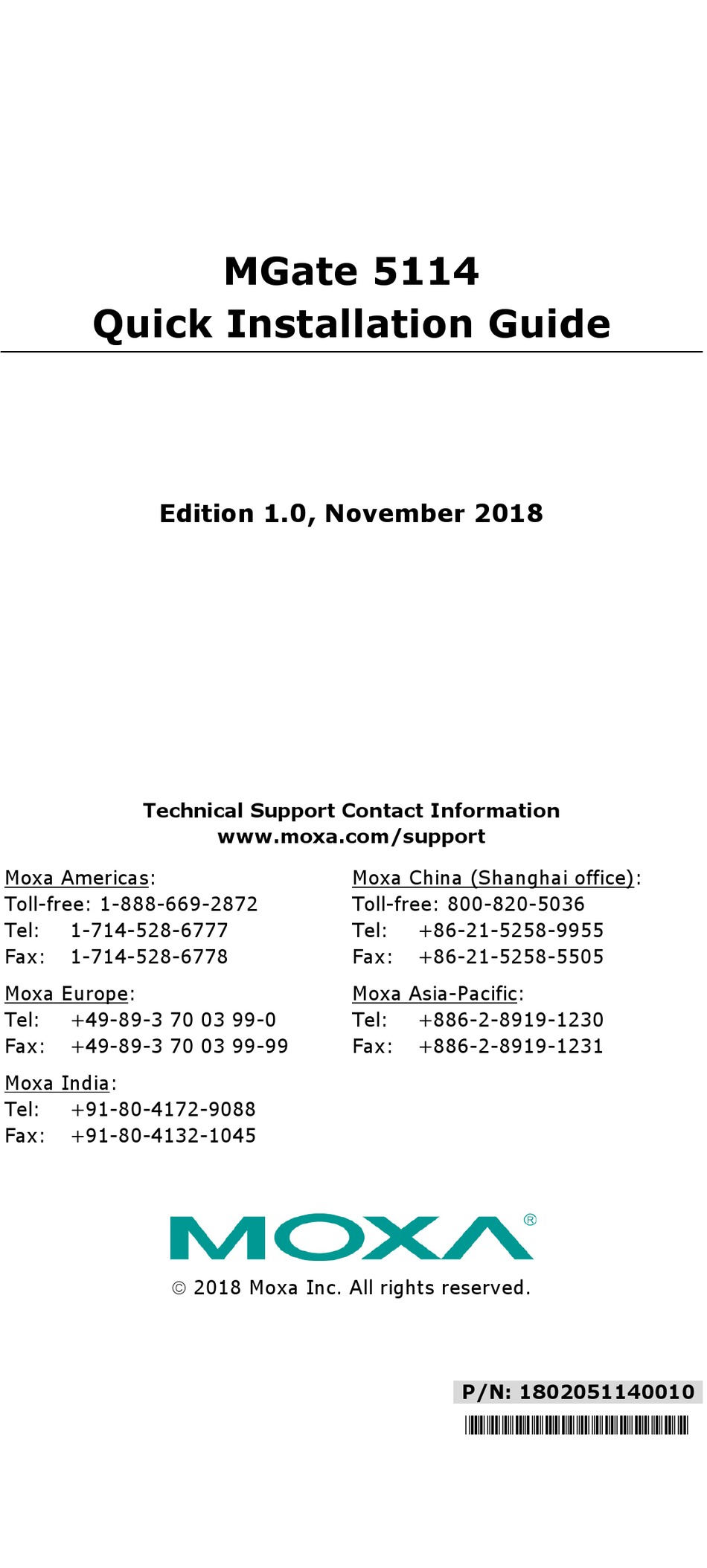

  • Page 1: Quick Installation Guide

    MGate 5114 Quick Installation Guide Edition 1.0, November 2018 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0...

  • Page 2: Package Checklist

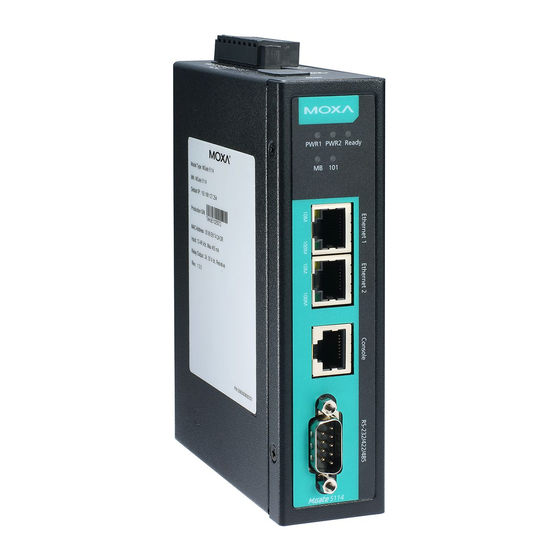

    Overview The MGate 5114 is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP and IEC 60870-5-101/104 network communications. Package Checklist Before installing the MGate 5114, verify that the package contains the following items: • 1 MGate 5114 gateway • 1 serial cable: DBL-RJ45F9-150 •...

  • Page 3: Reset Button

    Green Normal IEC 60870-5-101 serial communication in progress An error in serial communication occurred When the MGate 5114 acts as an IEC 60870-5- 101 master: 1. Received a slave exception (format error, checksum error, invalid data, slave responds are not supported) 2.

  • Page 4: Pull-High, Pull-Low, And Terminator For Rs-485

    3. Use an Ethernet cable to connect the MGate to the Modbus TCP or IEC 60870-5-104 device. 4. The MGate 5114 is designed to be attached to a DIN rail or mounted on a wall. For DIN-rail mounting, push down the spring and properly attach it to the DIN rail until it “snaps”...

  • Page 5: Pin Assignments

    Pin Assignments Serial Port (Male DB9) RS-422/ RS-232 RS-485 (2W) RS-485 (4W) TxD-(A) – TxD+(B) – RxD+(B) Data+(B) RxD-(A) Data-(A) – – – – – – – – – *Signal ground Ethernet Port (RJ45) Signal Power Input and Relay Output Pinouts Shielded Power Power...
