- Page 1 MGate 5111 Series Quick Installation Guide Version 1.3, April 2023 Technical Support Contact Information www.moxa.com/support 2023 Moxa Inc. All rights reserved. P/N: 1802051110013 *1802051110013*...
-
Page 2: Package Checklist

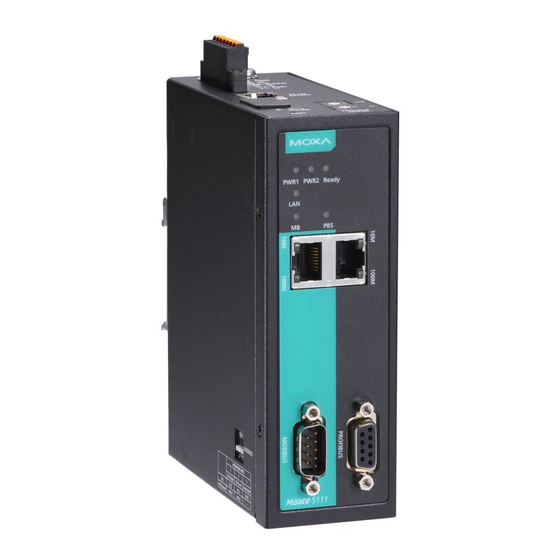

Overview The MGate 5111 is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP, PROFINET and EtherNet/IP to PROFIBUS slave network communications. Package Checklist Before installing the MGate 5111, verify that the package contains the following items: • MGate 5111 gateway • Quick installation guide (printed) •... -
Page 3: Led Indicators
LED Indicators Color Description Green Power is on PWR 1, PWR 2 Power is off Steady on: Power is on, and the unit is functioning normally Green Blinking: The unit is responding to the software’s Locate function Ready Steady on: Power is on, and the unit is booting up Blinking: Indicates an IP conflict, or the DHCP or BOOTP server is not responding properly Flashing quickly: the microSD card failed... -
Page 4: Reset Button
Color Description Green (Flashing PROFIBUS is receiving or transmitting data only) Error in the configuration or parameter data. (Steady) PROFIBUS offline or Slave ID is wrong. Green Indicates an 100 Mbps Ethernet connection Eth1, Amber Indicates a 10 Mbps Ethernet connection Eth2 The Ethernet cable is disconnected *Only indicates serial communication status;... -
Page 5: Software Installation Information
wall mounting, install the wall-mount kit (optional) first and then screw the device onto the wall. Wall or Cabinet Mounting Two metal plates are provided for mounting the unit on a wall or inside a cabinet. Attach the plates to the unit’s rear panel with screws. With the plates attached, use screws to mount the unit on a wall. - Page 6 PROFIBUS Serial Port (Female DB9) Signal PROFIBUS D+ Signal common PROFIBUS D- Console Port (RS-232) The MGate 5111 Series can use an RJ45 serial port to connect to a PC to configure the device. Signal Power Input and Relay Output Pinouts Shielded Power Power N.O.
-
Page 7: Specifications
Specifications Power Input 12 to 48 VDC Power Consumption 12 to 48 VDC, 416 mA (max.) (Input Rating) Operating Temperature Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) Storage Temperature -40 to 85°C (-40 to 185°F) ATEX and IECEx Information 1. - Page 8 ATTENTION For installations in hazardous locations (Class 1, Division 2): These devices are to be installed in an enclosure with a tool- removable cover or door, suitable for the environment. NOTE This equipment is suitable for use in Class 1, Division 2, Groups A, B, C, D or nonhazardous locations only WARNING EXPLOSION HAZARD...
- Page 9 No. 1111, Heping Rd., Bade Dist., Taoyuan City 334004, Taiwan - 9 -...
