User Manual
Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
MGate 5111
Edition 1.0, December 2017
Technical Support Contact Information
www.moxa.com/support
2017 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802051110010
*1802051110010*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies MGate 5111
Summary of Contents for Moxa Technologies MGate 5111
- Page 1 MGate 5111 Quick Installation Guide Edition 1.0, December 2017 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0...

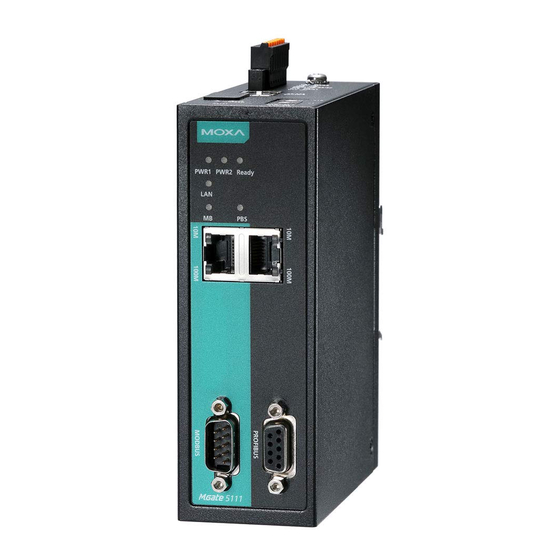

- Page 2 Overview The MGate 5111 is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP, PROFINET and EtherNet/IP to PROFIBUS slave network communications. Package Checklist Before installing the MGate 5111, verify that the package contains the following items: • MGate 5111 gateway •...
- Page 3 Color Description A communication error occurred (Flashing Modbus TCP Client: only) 1. Received an exception code or framing error (parity error, checksum error) 2. Command timeout (slave device is not responding) 3. TCP connection timeout Modbus TCP Server: 1. Received an invalid function code or framing error (parity error, checksum error) 2.
- Page 4 (such as a straightened paper clip) to hold the reset button down until the Ready LED stops blinking (approximately five seconds). Pull-Up, Pull-Down, and Terminator for RS-485 (Modbus) On the MGate 5111’s left side panel, you will find DIP switches to adjust each serial port’s pull-up resistor, pull-down resistor, and terminator.
- Page 5 Modbus TCP server device, PROFINET IO controller, or EtherNet/IP scanner device. 4. The MGate 5111 is designed to be attached to a DIN rail or mounted on a wall. For DIN-rail mounting, push down the spring and properly attach it to the DIN rail until it “snaps” into place. For wall mounting, install the wall-mount kit (optional) first and then screw the device onto the wall.
- Page 6 PROFIBUS Serial Port (Female DB9) Signal PROFIBUS D+ Signal common PROFIBUS D- Console Port (RS-232) The MGate 5111 Series can use an RJ45 serial port to connect to a PC to configure the device. Signal Power Input and Relay Output Pinouts Shielded Power Power N.O.
- Page 7 Specifications Power Requirements Power Input 12 to 48 VDC Power Consumption 416mA@12VDC, 195mA@24VDC, 110mA@48VDC Operating Temperature Standard model: 0 to 60°C (32 to 140°F) Wide temperature model: -40 to 75°C (-40 to 167°F) Ambient Relative Humidity 5 to 95% RH Dimensions 45.8 x 105 x 134 mm (1.80 x 4.13 x 5.28 in) Reliability...
- Page 8 NOTE This equipment is suitable for use in Class 1, Division 2, Groups A, B, C, D or nonhazardous locations only WARNING EXPLOSION HAZARD Do not disconnect the equipment unless the power has been switched off, or the area is known to be nonhazardous. WARNING EXPLOSION HAZARD The substitution of any components may impair suitability for...
