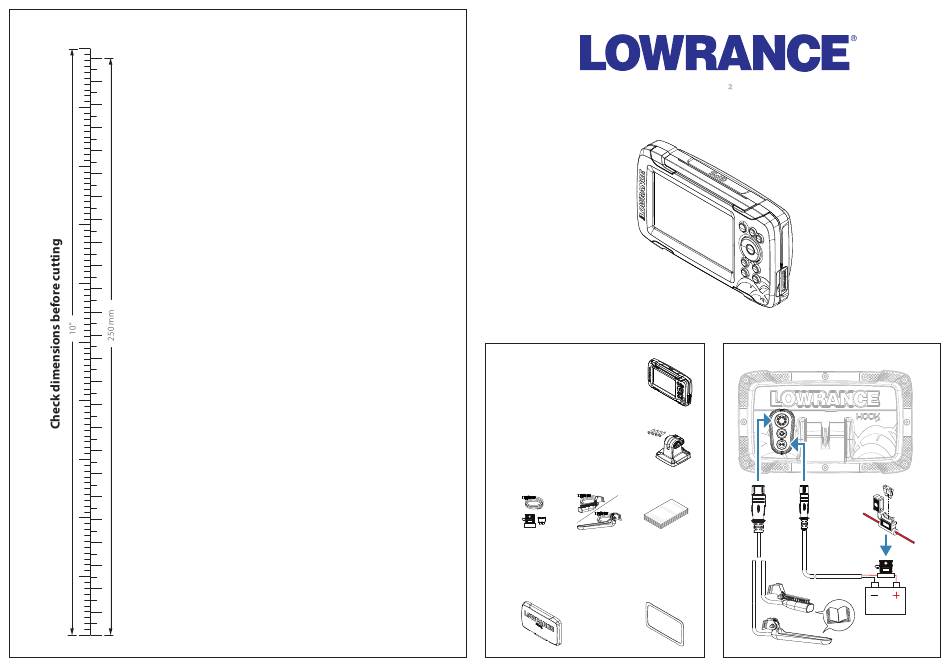

Mounting template (2/2)
IMPORTANT. Do not use this template if it has been rescaled by copying or
printing. If this is not the original, or is a print from a file, please check the
dimension lines below are to scale before use.
INSTALLATION GUIDE
Parts included
1.
Display unit
1.
2.
Bracket mounting kit
• Bracket
• 4x screws, self-tapping
#10 X 3/4 PN HD SS
3.
Cable and fuse kit
• Power cable
2.
• Fuse and holder
4.
SplitShot or TripleShot
transducer
5.
Document package
4.
3.
5.
Accessories (sold separately)
A.
Sun cover
Part no.: 000-14174-001
B.
Panel mounting gasket (adhesive)
Part no.: 000-14187-001
A.
B.
HOOK 5
Wiring
10.4 to 17.0 V DC
< 12.2 W (3 A fuse)
Advertisement
Related Manuals for Lowrance HOOK2 5
Summary of Contents for Lowrance HOOK2 5
- Page 1 Mounting template (2/2) IMPORTANT. Do not use this template if it has been rescaled by copying or printing. If this is not the original, or is a print from a file, please check the dimension lines below are to scale before use. HOOK 5 INSTALLATION GUIDE Parts included...
-
Page 2: Bracket Mounting
Details Mounting template (1/2) -15°C to +55°C 185.7 mm 28.9 mm 83.4 mm Sunlight readable +5°F to +131°F (7.31“) (1.14“) (3.28“) 58.2 mm (2.29”) 58.2 mm (2.29”) 70°/50°, top/bottom 0.46 Kg 55.6 mm (2.19”) 55.6 mm (2.19”) 70°/70°, left/right 1.00 lbs 44.2 mm (1.74”) 44.2 mm (1.74”) 1x card reader slot*... - Page 3 Parts included Bracket swivel adapter, 1x HOOK 4/5 BRACKET SWIVEL ADAPTER INSTALLATION GUIDE Unit to swivel adapter screws, 4x Swivel adapter to vessel screws, 4x Mounting 1/2...
- Page 4 Mounting 2/2 #10 X 3/4”, 4x pan-head, self tapping 2.5 mm x 8 mm, 4x pan-head, self tapping Looking for marine electronics and navigation? Visit our website.
