Parking Brake Group-Lower - Simplicity Colt ZT2148T Parts Manual

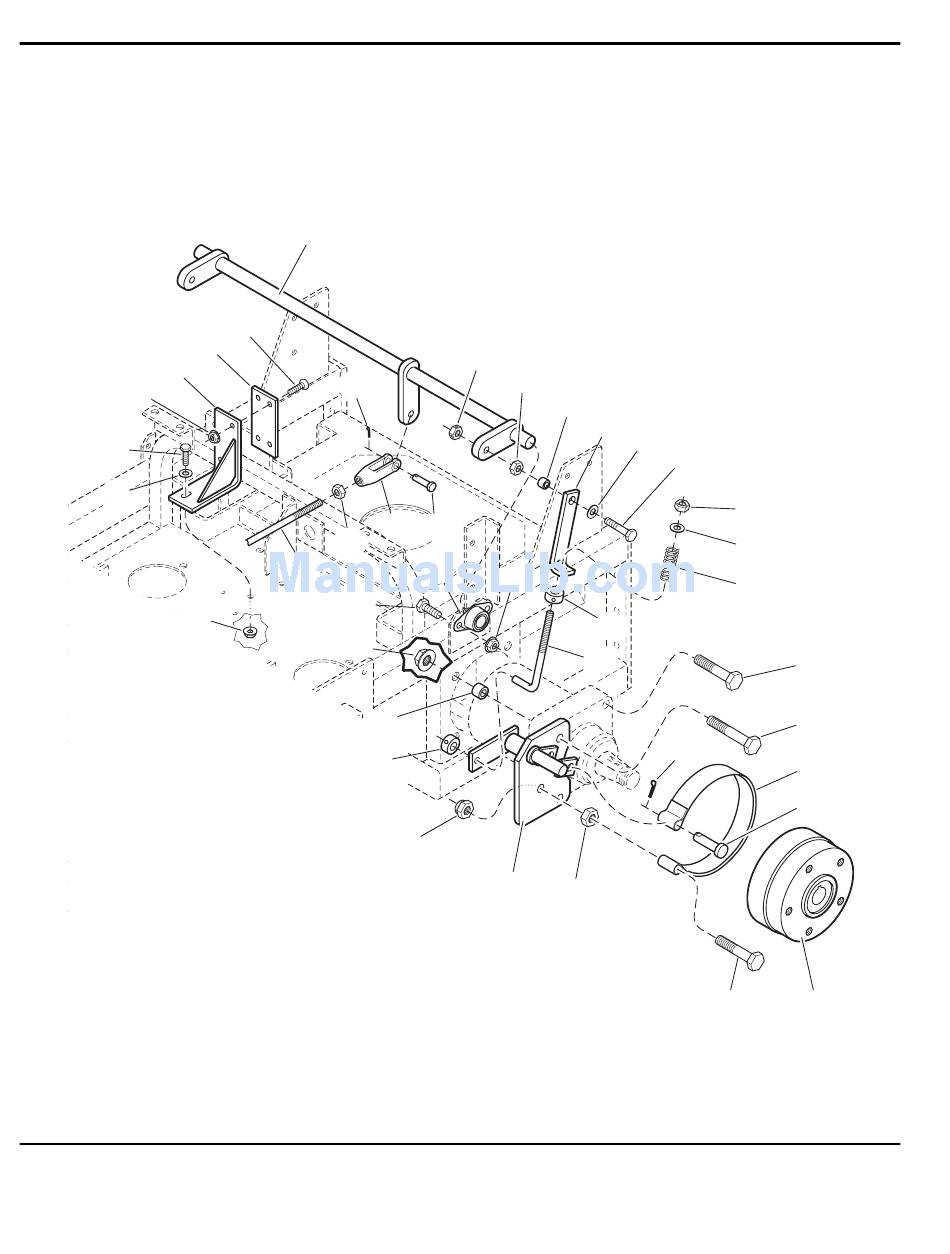

Parking Brake Group - Lower
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
4
5
6
7
5
The above parts group applies to the following Model Nos.:
ZT2148T
ZT2348T
ZT2352T
© Copyright 2004 Ferris Industries. All Rights Reserved.
1
2
3
8
11
12
23
26
27
21
NOTE: LH side shown. Unless otherwise noted,
components are identical for the RH side.
13
14
15
9
10
24
25
28
29
36
40
16
17
18
19
17
20
21
22
32
30
TP 400-7090-01-CT-D
37
31
33
34
35
