Single-Gang Mounting

The reader can be mounted on a wall or any suitable fl at surface. The Single-Gang mounted BluePass Reader can be installed as
a new device, or replace an existing one. If the BluePass Reader is replacing a legacy device, the Single-Gang mounting method is
recommended. The mounting plate can be utilized to cover various sized holes in the wall's surface. Depending on the mounting location,
new mounting screws may be necessary. These instructions assume no previous mounting hardware exists.
Follow these steps to properly mount a
single-gang BluePass Reader:
1. Identify a suitable location for mounting with proper power
supply.
2. Mark location on wall for mounting screws approximately 3
inches apart with power supply in center.
3. Drill two holes.
4. Install wall anchors to support mounting screws.
5. Feed power cable through mounting bracket's center opening.
12V
LED
BUZZ IN D0 IN D1 OUT D0 OUT D1
GND
GRN WHT BLK
RED BLU
SILVER
Note: A green wire pigtail for
earth ground is provided in all
enclosures. Reader shields
must be properly grounded per
IN READER
manufacturers installation
requirements.

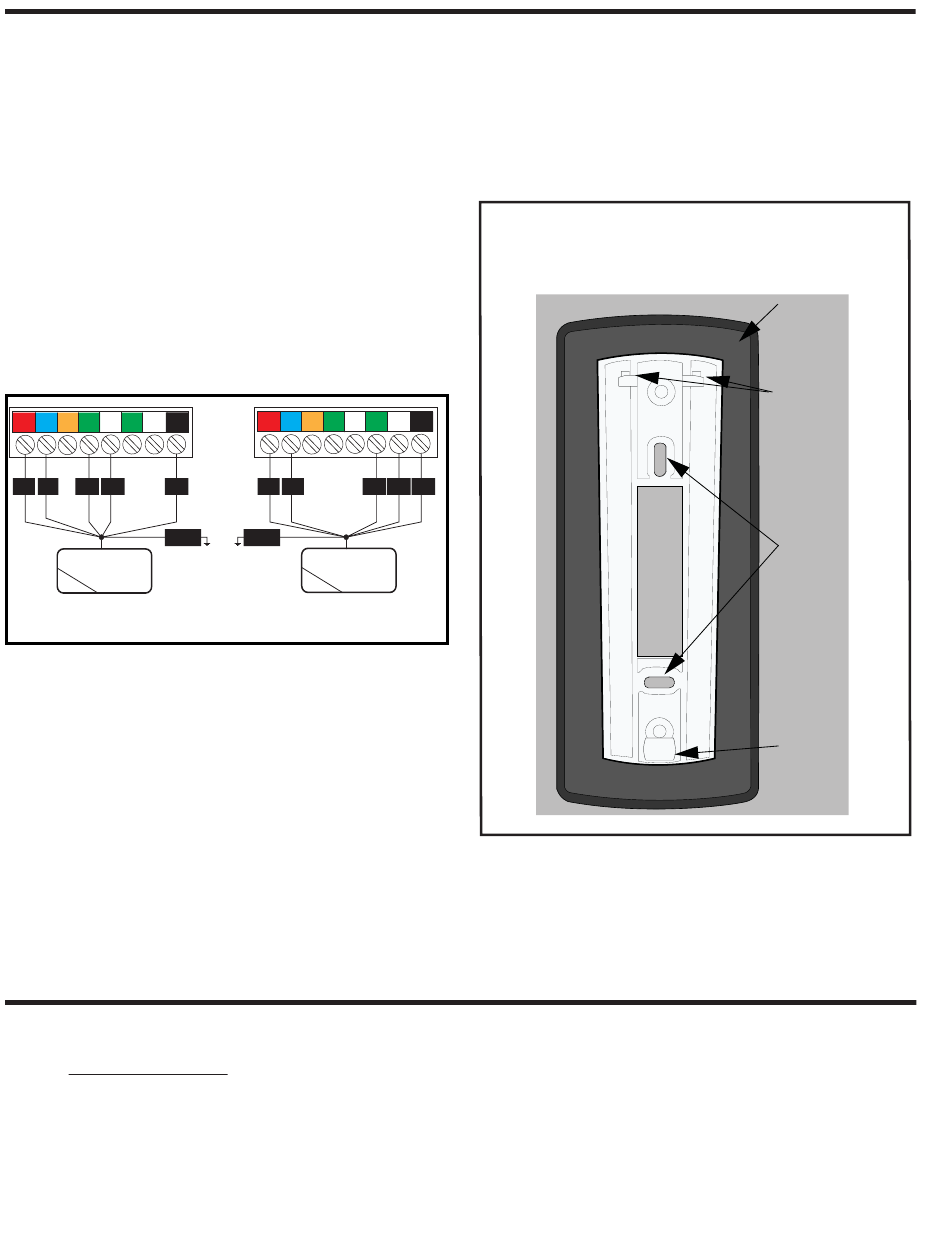

BluePass Reader Wiring Diagram
6. Place mounting bracket on wall, aligning screw mounting
positions with wall anchors.
7. Screw in two (2) screws.
8. Connect Reader wires to corresponding Wiegand wiring on
panel.
9. Connect the power supply wires to BluePass Reader.
Note: Ensure power supply is not energized at time until all
wires are properly connected and terminated.
10. Feed excess cable into wall.
11. Mount BluePass Reader unto upper and lower mounting stubs.
Once connected, the illumination ring will change to a default color of blue after the reader has been enrolled into an organization by the
the installer.

Setting Up an Account

Log onto https://bluepasscloud.io to set up an account. An Installer credential is required to confi gure the readers and test the system.
Standard 125Khz credentials can be read by touching the reader. The led ring will fl ash indicating it is ready for the user to present a card
or fob. The unit will beep if recognized but not enrolled. The BluePass reader LED will turn green if enrolled in the system the reader is
connected with.
4
Copyright © 2018 Nortek Security & Control LLC
12V
LED BUZZ IN D0 OUT D0 OUT D1
IN D1 GND
RED GRN WHT BLK
BLU
SILVER
OUT READER
Note: If a single gang box already exists there is no need to drill any
holes as the holes in the reader line up with the standard spacing for the
mounting of light switches and wall receptacle
BluePass Reader Single-Gang Mounting Bracket
SINGLE-GANG
MOUNTING
PLATE
UPPER
MOUNTING
STUBS
SCREW
MOUNTING
POSITIONS
LOWER
MOUNTING
STUB
