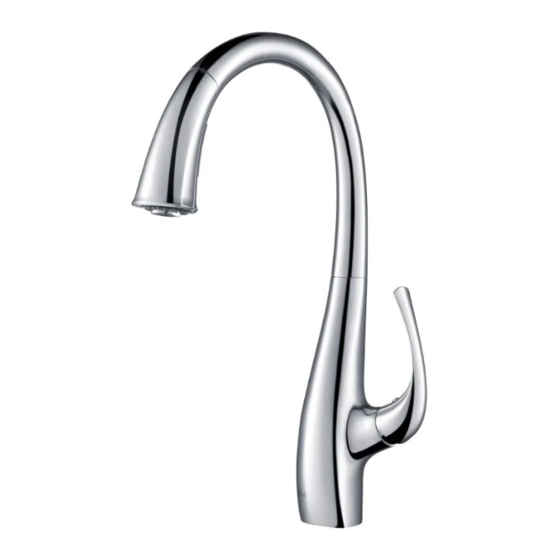

Kraus Ansel KPF-1675CH Installation Manual

Kraus Ansel KPF-1675CH Installation Manual

Single handle kitchen faucet

Advertisement

Quick Links

R
INSTALLATION MANUAL
Ansel
Single Handle
TM
Kitchen Faucet
KPF-1675
www.kraususa.com
I
Toll Free: 1.800.775.0703
I
© 2018 Kraus USA Inc.
I
REV. January 9, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ansel KPF-1675CH and is the answer not in the manual?

Questions and answers

Summary of Contents for Kraus Ansel KPF-1675CH

  • Page 1 INSTALLATION MANUAL Ansel Single Handle Kitchen Faucet KPF-1675 www.kraususa.com Toll Free: 1.800.775.0703 © 2018 Kraus USA Inc. REV. January 9, 2020...
  • Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
  • Page 3: Prior To Installation

    Prior to Installation: · Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. · Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built up pressure.
  • Page 4 Diagram and Parts List 1. Spray Head 2. Faucet Body 3. Hot and Cold Copper Lines A. Hot B. Cold 4. Quick Connector 5. Mounting Hardware A. Rubber & Metal Washer B. Mounting Nut C. Mounting Screws 6. Hot & Cold Waterlines 7.
  • Page 5 Faucet Dimensions 4 5/8” 11 1/4” 117mm 287mm 9 3/8” 238mm 16 1/2” 10 1/2” 8 3/8” 2” 2” 52mm 52mm 1 3/8” ~1 1/2” 35~38mm G 1/2" Installer Tip: Shut off main water supply before installing new faucet.
  • Page 6 Step 1A. Faucet installation - with deck plate For three-hole installation: Deck plate, base plate (see below), and silicone sealant (optional) are required. Note: optional deck plate not included Step 1B. Faucet installation - without deck plate For single-hole installation: Deck plate, base plate, and silicone sealant are NOT required.
  • Page 7 Step 2. Install faucet and mounting hardware Insert faucet body (2) into hole in countertop or deck plate assembly . Install mounting hardware (5A, B & C) from underneath the countertop. Step 3. Secure mounting hardware Adjust direction of faucet body (2) so that handle is on right side of faucet.
  • Page 8 Step 4. Attach spray hose and counterweight Connect spray hose (7) to quick connector (4) attached to supply line. Install weight (8) on lowest vertical point on spray hose (7). Step 5. Connect waterlines Connect waterlines (6) to hot and cold copper lines (3). Connect waterlines (6) to angle stops.
  • Page 9 Step 6. Flush spray hose Remove spray head (1) from spray hose (7). Hold tip of spray hose (7). Turn faucet on and let the water run for 60 seconds to flush any debris. Step 7. Check for leaks Check for leaks at the connections.
  • Page 10: Replacement Parts

    Replacement Parts Replacement Finish / Part # Parts List Color CH,SFS,MB* 1. Spray Head KP06093 2. Hose guide GR,BL* KP06004 GR,BL* 3. Spout clip KP06017 4. Handle Button CH,SFS,MB* KP06030 5. Set Screw KP06055 CH,SFS,MB* 6. Metal Handle KP06001 7. Cartridge Cover CH,SFS,MB* KP06021 8.
  • Page 11: Troubleshooting

    Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Leakage under faucet handle Locking nut has come loose or Remove button located at top of handle. cartridge needs to be reseated.
  • Page 12 Maintenance - Cartridge Replacement Step 1: Remove button located at the top of the handle. Loosen the set screw with a hex wrench. Remove the handle and unscrew cartridge cover by hand. Step 2: Unscrew the locking nut with an adjustable wrench. Remove ceramic disc cartridge.
  • Page 13 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
  • Page 14: Commercial Warranty

    This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date comprehensive warranty, go to www.kraususa.com/warranty...
  • Page 15 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...

This manual is also suitable for:

Ansel kpf-1675Ansel kpf-1675sfsAnsel kpf-1675mb
