30 | Hardware Installation and Maintenance Guide for SG6000 Appliances

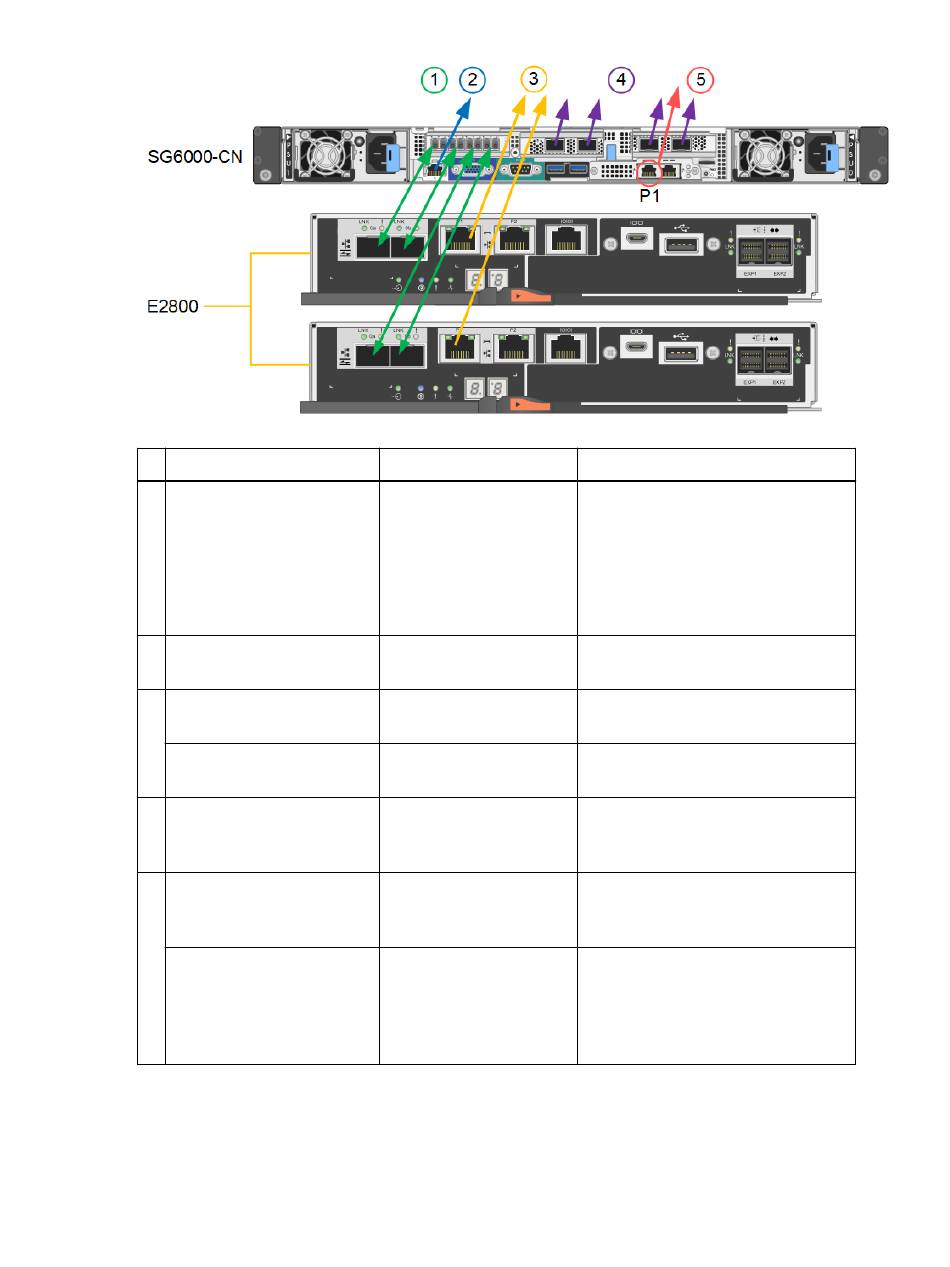

Port
1 FC connection ports:
• 4 on the SG6000-CN
controller
• 2 on each E2800
controller
2 BMC management port on
the SG6000-CN controller
3 Management port 1 on each
E2800 controller
Management port 2 on each
E2800 controller
4 Four network ports on the
SG6000-CN controller
5 Admin Network port on the
SG6000-CN controller
(labelled P1 in the figure)
Rightmost RJ-45 port on
the SG6000-CN controller
Steps
1. Connect the two FC ports on each E2800 controller to the FC ports on the SG6000-CN controller,
using four optical cables and four SFP+ transceivers for the E2800 controllers.
2. Connect the BMC management port on the SG6000-CN controller to the management network,
using an Ethernet cable.
Although this connection is optional, it is recommended to facilitate support.
Type of port
16-Gb/s FC optical SFP+
1-GbE (RJ-45)
1-GbE (RJ-45)
1-GbE (RJ-45)
10/25-GbE
1-GbE (RJ-45)
1-GbE (RJ-45)
Function
Connect each E2800 controller to
the SG6000-CN controller.
Connects to the network where you
access the BMC interface.
Connects to the network where you
access SANtricity System Manager.
Reserved for technical support.
Connect to the Grid Network and the
Client Network for StorageGRID
Webscale.
Connects the SG6000-CN controller
to the Admin Network for
StorageGRID Webscale.
Can be used to connect the SG6000-
CN controller to a service laptop
during installation, if a DHCP-
assigned IP address is not available
for the Admin Network port.
