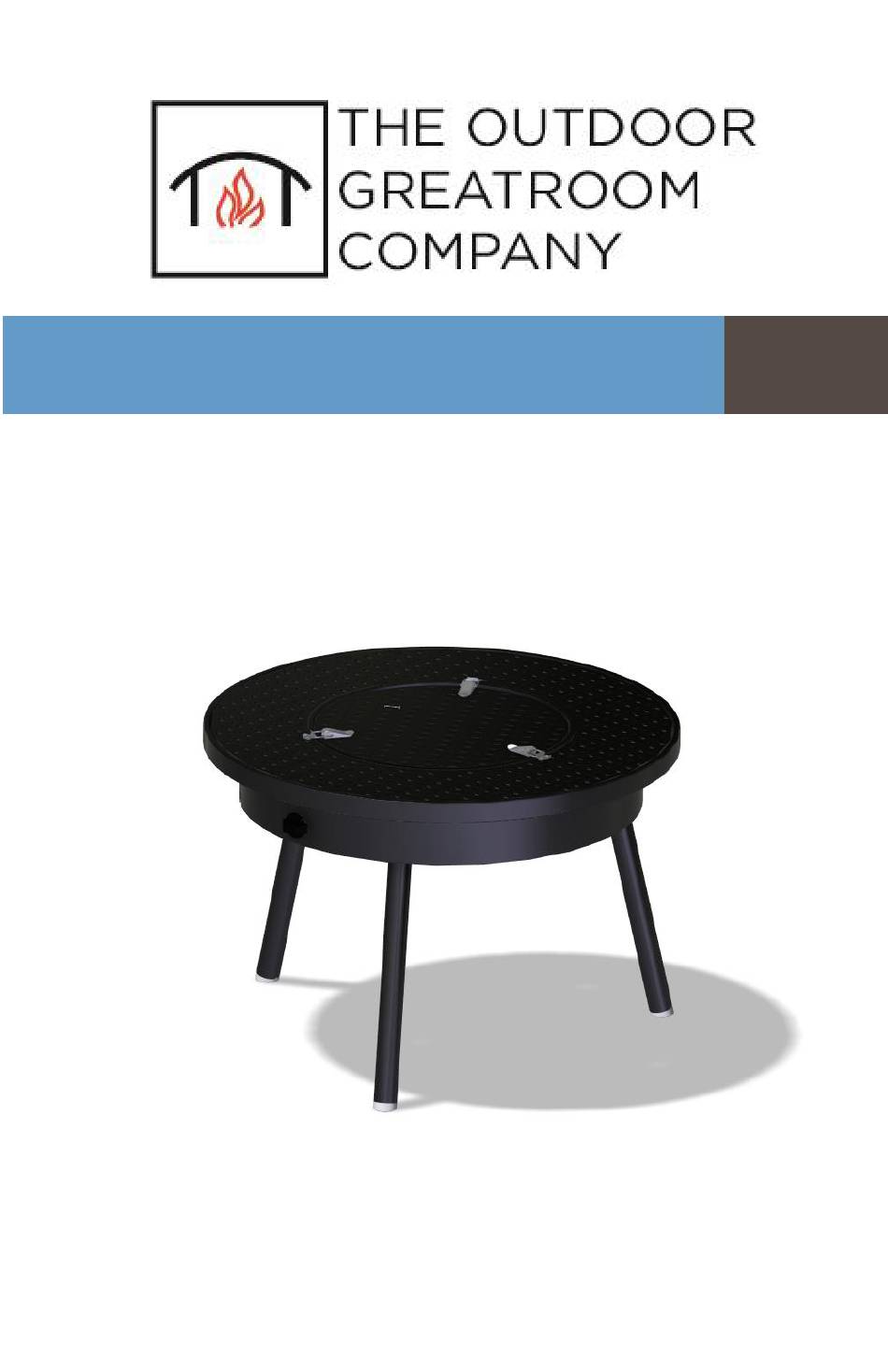

- Page 1 Renegade Fire Table Installation Instructions for RNG-32...
-
Page 3: Table Of Contents
IMPORTANT Contents Please consult your Crystal Fire instruction manual for detailed instructions and important information related to the burner Required Tools…………………………….…..2 installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. Included with your Fire Pit……………….3 DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE BURNER WITHOUT Assembly Instructions………………….………4 FIRST CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL. -
Page 4: Included With Your Fire Pit
Included with your Fire Pit TOUCH PAINT Burner Cover [1X] Media Retention Pad [1X] Part #: RNG-4 Part #: RNG-PAD Gas Valve Kit GM-KV Mounting Control knob Gas Valve [1X] screws [2X] [1X] NF-16-RD Burner [1X] Leg [3X] Part #: RNG-2 Carrying Bag [1X] Base [1X] Part #: CB-REN... -
Page 5: Assembly Instructions
Assembly Instructions Included with your Fire Pit NOTE: Before assembly, check for damage. Do not use damaged components. A. 4 Fasteners 1. Unpack all the contents from the box and remove the individual B. 4 B-Bolts packaging from each component. C. - Page 6 4. Once all Legs are securely attached to Base, move the clasps to the closed position. *NOTE*: Clasp arm can be rotated to adjust for tightness Flip table into the upright position.
-
Page 7: Gas Connections
Gas Connections Read and understand your Crystal Fire owner’s manual before beginning burner hookups or using the device. Do not use Teflon tape or pipe dope on flare fittings. 1. Attach natural gas supply line using a 3/8” flare fitting, or attach the included black rubber propane hose and regulator to the bottom fitting of the control valve. - Page 8 3. Attach flex line from the burner to gas valve as shown below. TIGHTEN CONNECTION SECURELY WITH WRENCH Metal flex line to burner ONLY WARNING Check all connections before each use when traveling with the table. This is to ensure no component has become lose during traveling or relocating the table.
- Page 9 CF-SPARKER Installation 1. Make sure the valve is in the OFF position before beginning. 2. Install CF-SPARKER as shown, using a AAA battery (not included). Negative end should be placed inside the CF-SPARKER, positive end outside of the CF-SPARKER. CF-SPARKER will not operate correctly without an ignition and ground wire attached.
-
Page 10: Install Fire Media
Install Fire Media 1. Scatter all of the included Glass Beads evenly onto burner surface. • DO NOT OPERATE CRYSTAL FIRE BURNER WITHOUT GLASS BEADS OR OTHER DECORATIVE MEDIA PRESENT • DO NOT OPERATE CRYSTAL FIRE BURNER WITH BURNER COVER OR FOAM PAD IN PLACE *NOTE*: Glass beads can be left in place within the table for quicker set up for the next usage. -
Page 11: Position Your Tank
After installing CF-SPARKER and making gas connections, verify that all connections are tight and that no leaks are present using a solution of soapy water or a commercially available leak-check solution. Position Your Tank (If Applicable) 1. Connect the propane hose/regulator to the propane tank and hand tighten (DO NOT USE A WRENCH) 2. -
Page 12: Storage
Storage Your Renegade Fire Table can safely be stored in its included carrying bag so it is ready to be quickly set up for the next use. 1. Ensure that control panel is in the off position and that the table is disconnected from the gas supply. Disconnect from gas supply and remove tank. - Page 13 3. Position Burner Cover over top of Media Retention Pad so that all cover latches line up with latches on table 4. Close all top latches to secure Burner Cover in place.
- Page 14 Store legs within Base cavity. 5. Collapse and remove all Legs from base latches. Legs can be stored within cavity of Base as shown above. 6. Place entire table assembly into Carrying Bag for easy storage. *REMINDER*: Wait 30 mins before beginning the storage process.
- Page 15 IMPORTANT Please consult your Crystal Fire instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL.
- Page 16 14400 Southcross Drive West • Suite 100 • Burnsville, MN 55306 Toll Free: 1-866-303-4028 • Sales@OutdoorRooms.com...
