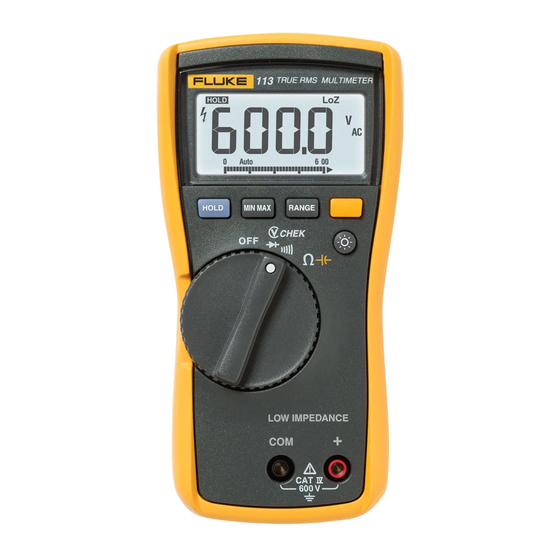

Fluke 113 Instruction Sheet

Electrical multimeter
Hide thumbs

Advertisement

Quick Links

Shop for Fluke products online at:
Model 113 English Instruction Sheet
Electrical Multimeter

Safety Information

A Warning statement identifies hazardous conditions and actions
that could cause bodily harm or death.
A Caution statement identifies conditions and actions that could
damage the Meter or the equipment under test.
To avoid possible electric shock or personal injury,
follow these guidelines:
Use the Meter only as specified in this instruction sheet
or the protection provided by the Meter might be
impaired.
Do not use the Meter or test leads if they appear
damaged, or if the Meter is not operating properly.
Always use proper terminals, switch position, and range
for measurements.
Verify the Meter's operation by measuring a known
voltage. If in doubt, have the Meter serviced.
Do not apply more than the rated voltage, as marked on
Meter, between terminals or between any terminal and
earth ground.
Use caution with voltages above 30 V ac rms, 42 V ac
peak, or 60 V dc. These voltages pose a shock hazard.
Disconnect circuit power and discharge all high-voltage
capacitors before testing resistance, continuity, diodes,
or capacitance.
PN 3083192 December 2007, Rev. 2, 6/11
2007 - 2011 Fluke Corporation. All rights reserved.
Specifications subject to change without notice. Printed in China
MyFlukeStore
www.
Page 1
®
113
Instruction Sheet
.com
1.888.610.7664

Advertisement

loading

  Related Manuals for Fluke 113

  Summary of Contents for Fluke 113

  • Page 1: Safety Information

    Disconnect circuit power and discharge all high-voltage capacitors before testing resistance, continuity, diodes, or capacitance. PN 3083192 December 2007, Rev. 2, 6/11 2007 - 2011 Fluke Corporation. All rights reserved. Specifications subject to change without notice. Printed in China MyFlukeStore 1.888.610.7664 www.
  • Page 2 Model 113 English Instruction Sheet Page 2  Do not use the Meter around explosive gas, vapor or in damp or wet environments.  When using test leads or probes, keep your fingers behind the finger guards.  Only use test leads that have the same voltage, category, and amperage ratings as the meter and that have been approved by a safety agency.
  • Page 3: Automatic Range Selection

    Model 113 English Instruction Sheet Page 3 Symbols   Earth ground Double Insulated   Hazardous voltage Hazardous voltage Battery (Low battery Important Information; Refer   when shown on the to manual display.) Do not dispose of this...
  • Page 4: Manual Range Selection

    Model 113 English Instruction Sheet Page 4  CHEK,  and  Manual Range Selection ( See each function in this instruction sheet for available ranges. RANGE fda01.eps MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 5: Battery Saver  (Sleep Mode)

    Model 113 English Instruction Sheet Page 5  Battery Saver (Sleep Mode) If the Meter is ON, but inactive and not connected to voltage for more than 20 minutes, the display goes blank to preserve battery life. To resume operation, press any button or turn the rotary switch.
  • Page 6: Power-Up Options

    Model 113 English Instruction Sheet Page 6 Power-Up Options To select a Power-Up Option, hold down the button indicated in the following table while turning the Meter from off to the  CHEK function. Power-Up Options are canceled when you turn the Meter off and when sleep mode is activated.
  • Page 7: Ac And Dc Voltage

    Model 113 English Instruction Sheet Page 7   CHEK If a dc or ac voltage greater than about 3 V is present across the inputs when the meter is set to  CHEK, the meter switches automatically to dc or ac voltage mode and displays the voltage.
  • Page 8: Diode Test

    Model 113 English Instruction Sheet Page 8 Diode Test  Turn off circuit power before testing. For best results, diodes should be measured out of circuit. Also refer to  CHEK Good Diode Good Diode Good Diode Single Beep Forward Bias Reverse Bias fda03.eps...
  • Page 9: Continuity Capture

    Model 113 English Instruction Sheet Page 9 Continuity  Turn off circuit power before testing. Open Short fda05.eps Continuity Capture Turn off circuit power before testing. MIN MAX fda06.eps MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 10 Model 113 English Instruction Sheet Page 10 Short Open Short to Open Open to Short fda10.eps Captures transitions longer than 500 s (1/2000 of a second). Transitions after the first transition cause the Meter to beep, but the display does not change.
  • Page 11 Model 113 English Instruction Sheet Page 11 Resistance  Turn off circuit power before testing. RANGE fda07.eps Capacitance  Turn off circuit power, then disconnect and discharge the capacitor before measuring capacitance. RANGE fda08.eps Note correct probe polarity for polarized capacitors.
  • Page 12 Model 113 English Instruction Sheet Page 12 MIN MAX (Records the lowest, highest, and calculated average measurements.) Autoranging, and Battery Saver are disabled. Put the meter in the proper range before entering MIN MAX. When a new minimum or maximum is recorded, the meter beeps.
  • Page 13: Disabling The Beeper

    Model 113 English Instruction Sheet Page 13 Disabling the Beeper To disable the beeper for all modes, hold down  for 2 seconds while turning the meter on to  Chek. Maintenance Wipe the case with a damp cloth and mild detergent. Do not use abrasives, isopropyl alcohol, or solvents to clean the case or lens/window.
  • Page 14: Specifications

    Model 113 English Instruction Sheet Page 14 Specifications Accuracy is specified for 1 year after calibration, at operating temperatures of 18 C to 28 C, with relative humidity at 0 % to 95 %. Accuracy specifications are given as follows: Note Specifications are subject to change without notice.
  • Page 15 Model 113 English Instruction Sheet Page 15 Maximum Voltage Between any Terminal and Earth Ground: 600 V Display: 3 3/4-digits, 6000 counts, updates 4/sec Operating Temperature: -10C to 50C (14F to 122F) Storage Temperature: -40C to 60C (-22F to 140F) 0.1 x (specified accuracy)/C (<18 C or...
  • Page 16 Model 113 English Instruction Sheet Page 16 Function Input Impedance (Nominal)  Chek ~3 k <300 pF Common Mode Rejection Ratio (1 k Unbalanced)  Chek >60 dB at dc, 50 or 60 Hz  Open Circuit Test Voltage Full Scale Voltage ...
  • Page 17 Model 113 English Instruction Sheet Page 17 LIMITED WARRANTY & LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for three years from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
