Operating instructions
DIAS 10
Range hood

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIAS 10 and is the answer not in the manual?

Questions and answers

Related Manuals for V-ZUG DIAS 10

Summary of Contents for V-ZUG DIAS 10

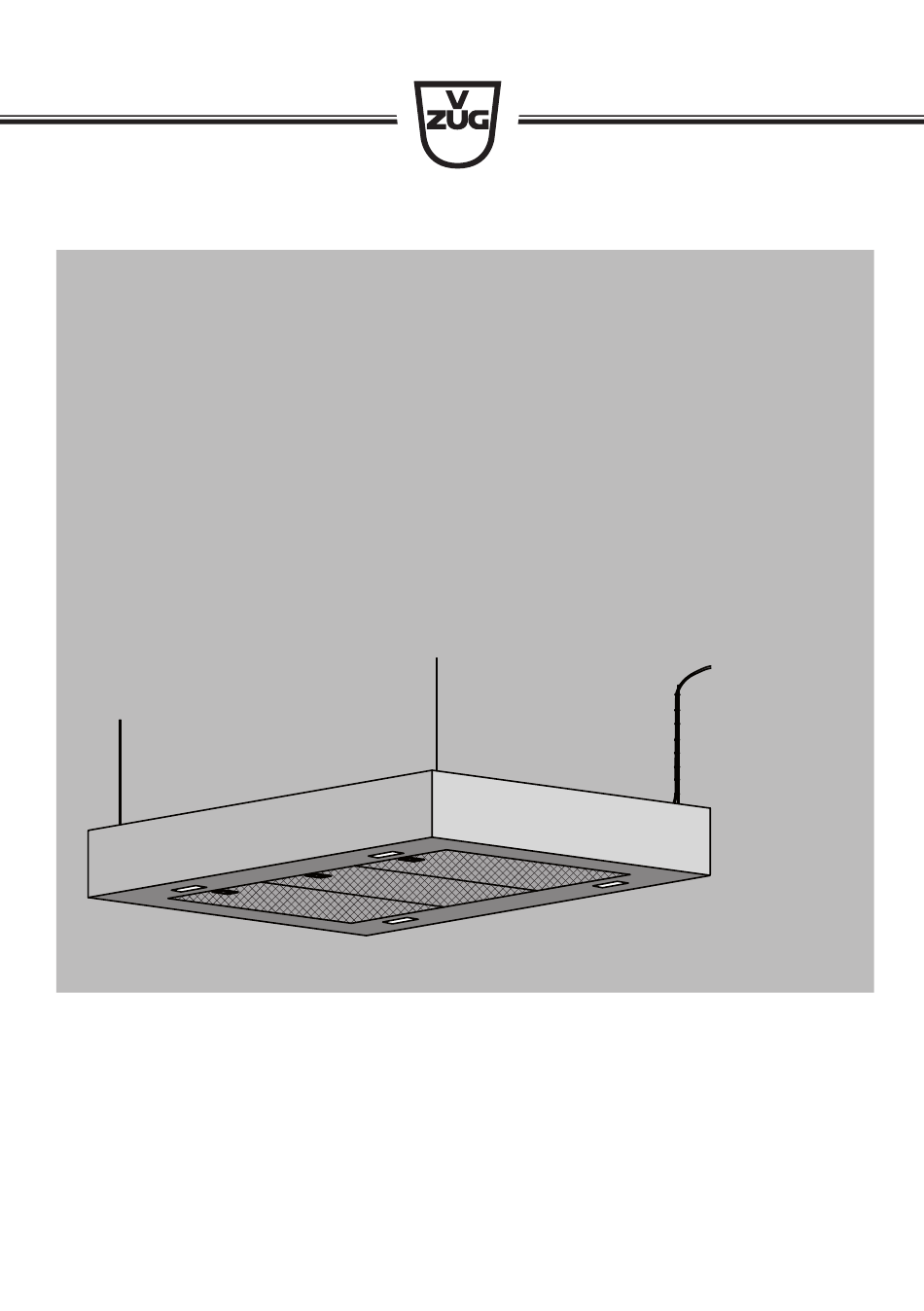

  • Page 1 Operating instructions DIAS 10 Range hood...
  • Page 2 The product family (model number) corresponds to the first alphanumerics on the identification plate. These operating instructions apply to: Type Product family Size system DIAS 10 63009 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2016...

  • Page 3: Table Of Contents

    Contents  2 1 Safety precautions  5 Symbols used ..................... 5 General safety precautions .............. 6 Before using for the first time .............. 7 Correct use.................... 7 Children in the home ................. 7 Note on use.................... 8 2 Disposal  10 3 Appliance description  11 Appliance description................ 11 Recirculation model ................
  • Page 4 What to do if … .................. 27 7 Accessories and spare parts  28 8 Technical data  29 9 Index  30 10 Notes  32 11 Service & Support  35...

  • Page 5: Safety Precautions

    Safety precautions Symbols used Denotes important safety precautions. Failure to observe said precautions can result in injury or in dam- age to the appliance or fittings! Information and precautions that should be observed. Information on disposal Information about the operating instructions ▸...

  • Page 6: General Safety Precautions

    1 Safety precautions General safety precautions ▪ Read the operating instructions before using the appliance for the first time! ▪ This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental cap- abilities, or lack of experience and/or knowledge, provided they are supervised or have been instructed on the safe use of the appliance and have understood the hazards involved.

  • Page 7: Before Using For The First Time

    1 Safety precautions Before using for the first time ▪ The appliance must be installed and connected to the electricity supply in accordance with the separate installation instructions. Have a qualified fitter/ electrician carry out the necessary work. ▪ Dispose of the packaging material in accordance with local regulations. Correct use ▪...

  • Page 8: Note On Use

    1 Safety precautions Note on use ▪ If the appliance is visibly damaged, do not use it. Contact our Customer Services. ▪ If the appliance is not functioning properly, disconnect it from the power supply immediately. ▪ If the mains cable of the appliance is damaged, it must be replaced by Cus- tomer Services in order to avoid hazard.
  • Page 9 1 Safety precautions ▪ When carrying out maintenance work on the appliance, including replacing the light bulb, cut off the electricity supply to the appliance: remove the screw fuse from the holder or switch the circuit breaker off, or disconnect from the mains supply.

  • Page 10: Disposal

    Disposal Packaging ▪ All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection ▪ Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety ▪...

  • Page 11: Appliance Description

    Appliance description Appliance description The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface. The appliance may only be operated in the recirculation mode. Recirculation model The cooking fumes and smells above the cooking area are first filtered through the metal grease filters and then passed through the activated char- coal filters.

  • Page 12: Construction

    3 Appliance description Construction 1 Operating and display elements 5 Illumination 2 Activated charcoal filters 6 Cable 3 Air outlet grilles fitted in the top 7 Electric cable 4 Metal grease filters fitted underneath...

  • Page 13: Operating And Display Elements

    3 Appliance description Operating and display elements Switch off / activate/deactivate wipe protection Power level 1 / activate/deactivate remote control Power level 2 Power level 3 Intensive level CleanAir function (air extraction every hour for 10 minutes) After-running time – delays the switching-off of the appliance by 15 minutes Illumination ON/OFF and change light intensity (hold depressed for two seconds)

  • Page 14: Remote Control

    3 Appliance description Remote control This appliance can be controlled by remote control, which requires standard 1.5 V LR03-AAA alkali zinc-carbon batteries (not supplied). Do not place the remote control near heat sources. Please dispose of the batteries according to the applicable regulations. Operating and display elements Switch illumination on/off / change light intensity Switch appliance on/off...

  • Page 15: Operating The Appliance

    Operating the appliance Operation Switching the appliance on ▸ Pressing the / / button switches the appliance on at power level 1, 2, 3 or intensive. – The corresponding button illuminates to indicate which power level is being used. We recommend switching the appliance on at power level 1 some five minutes before cooking.

  • Page 16: Changing The Light Intensity

    4 Operating the appliance Changing the light intensity ▸ When the illumination is switched on, hold the button depressed for two seconds. – The light intensity lowers. ▸ When the light intensity is low, press the button. – The light intensity increases. ▪...

  • Page 17: After-Running Time

    4 Operating the appliance After-running time With the after-running time function, the appliance runs for another 15 minutes and then switches off. ▸ Press the / or button and select the desired power level. ▸ Press the button. – The after-running time switches on. –...

  • Page 18: Cleanair

    4 Operating the appliance CleanAir Switching the CleanAir function on/off ▸ Press the button. – The button illuminates. – The button flashes. – The range hood switches on every hour for 10 minutes. ▸ Press the button. – The buttons no longer illuminate. –...

  • Page 19: Operation With Remote Control

    4 Operating the appliance Operation with remote control Activating/deactivating the remote control ▸ With the appliance switched off, hold the button depressed for five seconds. – All LEDs flash twice. – The range hood can now be operated using the remote control. ▸...
  • Page 20 4 Operating the appliance Changing the power level ▸ Press the button. – The next lower power level is activated. ▸ Press the button. – The next higher power level is activated. Switching the intensive level on / off before time ▸...

  • Page 21: Care And Maintenance

    Care and maintenance Cleaning the housing Take care that no water gets into the housing of the appliance! If water gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool, etc. for cleaning, as the surface could otherwise be damaged. Remove the screw fuse or switch off the circuit breaker.

  • Page 22: Removing The Metal Grease Filters And Air Outlet Grilles

    5 Care and maintenance Removing the metal grease filters and air outlet grilles Removing the lower metal grease filters ▸ Pull handle 1 down and take the metal grease filters 2 down and out. Removing the air outlet grilles in the top ▸...

  • Page 23: Cleaning The Metal Grease Filters

    5 Care and maintenance Cleaning the metal grease filters The lower grease filters 2 must be cleaned at least once a month with normal use or whenever the indic- ator light flashes. ▸ Clean the metal grease filters 2 in the dishwasher. ▸...

  • Page 24: Cleaning The Air Outlet Grilles

    5 Care and maintenance Cleaning the air outlet grilles The air outlet grilles can be cleaned in the same way as the metal grease filters. This can be done when the activated charcoal filters are replaced. Installing the metal grease filters and air outlet grilles Installing the metal grease filters underneath ▸...

  • Page 25: Activated Charcoal Filters

    5 Care and maintenance Activated charcoal filters Before replacing the activated charcoal filters, it is necessary to unscrew the fuse or switch off the automatic circuit breaker. Activating the activated charcoal filter display ▸ With the appliance switched off, hold the button depressed for five seconds.
  • Page 26 5 Care and maintenance Installing the activated charcoal filters ▸ Insert the new activated charcoal fil- ters. ▸ Insert each of the air outlet grilles 5 into the holder 7. ▸ Pull handle 4 up and allow the air outlet grille 5 to engage. ▸...

  • Page 27: Trouble-Shooting

    Trouble-shooting What to do if … … the illumination is not working Possible cause Solution ▪ Fuse or automatic circuit ▸ Replace the fuse. breaker for electrical in- ▸ Reset the automatic circuit breaker. stallations in the home is defective. ▪...
  • Page 28 Accessories and spare parts Please give model number of the appliance and exact designation of the ac- cessory or spare part when ordering parts. Metal grease filter fitted underneath Air outlet grille fitted in the top Activated charcoal filter...
  • Page 29 Technical data Electrical connection ▸ See identification plate. ▸ Remove the metal grease filters. – The identification plate is located on the inside of the appliance.
  • Page 30 Index Accessories and spare parts ....28 Identification plate........29 Activated charcoal filter ......25 Illumination After-running time........17 Hood ............  15 Switching off before time .... 20 Remote control ........ 19 Switching on........ 20 Intensive level Air outlet grille On the hood ........
  • Page 31 9 Index Recirculation model......... 11 Remote control......... 14 Activating/deactivating .....  19 Safety ............10 Safety precautions Before using for the first time .... 7 Children in the home ...... 7 Correct use.......... 7 General........... 6 Note on use........... 8 Saturation indicator Activated charcoal filters.... 18 Grease filters ........
  • Page 32 Notes...
  • Page 35 Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an onsite visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our progress- ive service agreements.
  • Page 36 Infrared port for the remote control Flashing: Clean the grease filters Flashing: Clean the activated charcoal filters 1011439-R03 V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
