V-ZUG Ltd
Range Hood
DF-S5 / DF-S6
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF-S5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for V-ZUG DF-S5

Summary of Contents for V-ZUG DF-S5

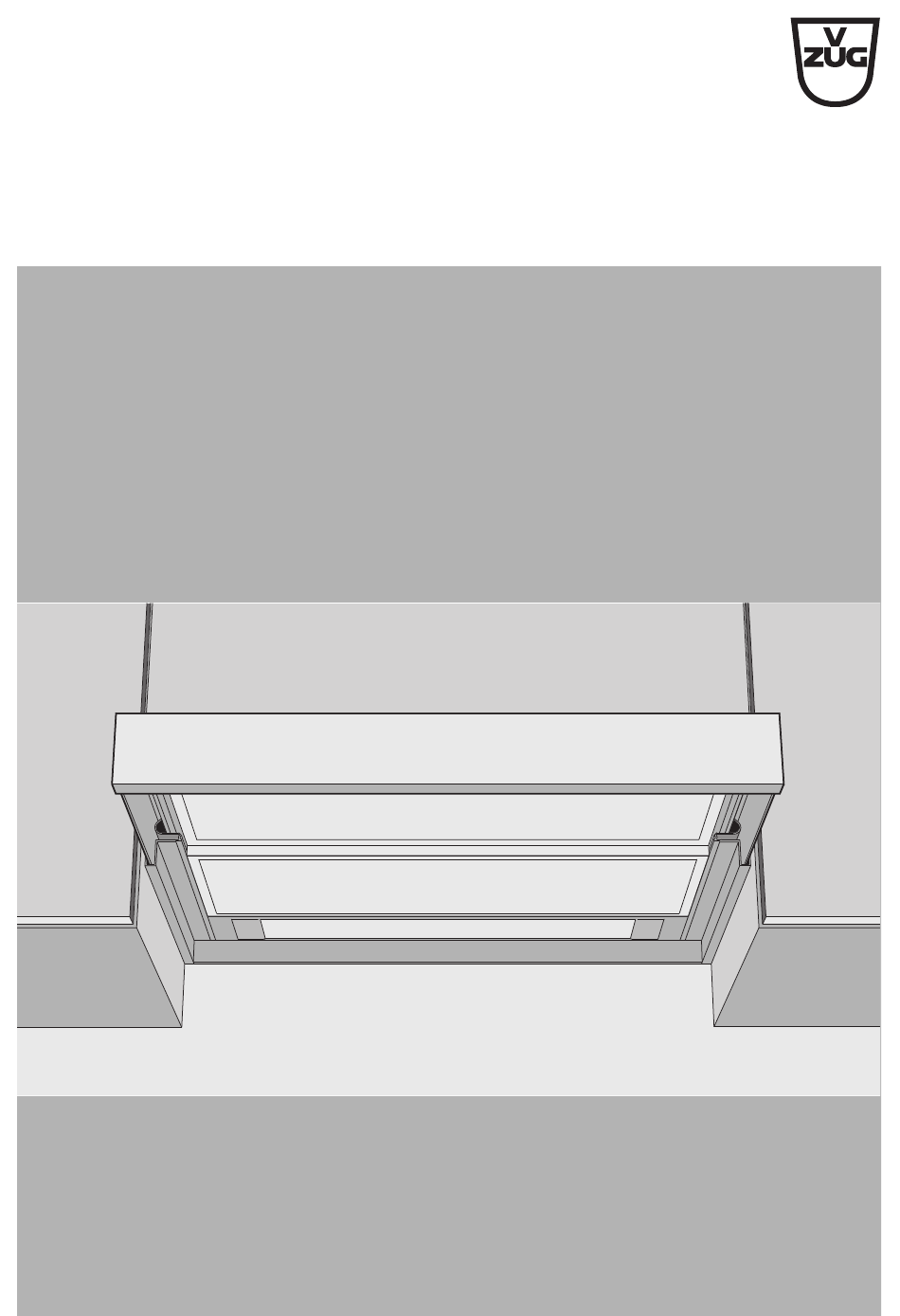

  • Page 1 V-ZUG Ltd Range Hood DF-S5 / DF-S6 Operating instructions...
  • Page 2 The model number corresponds to the first 3 digits on the identification plate. These operating instructions apply to the models: Type Model no. Size system DF-S5 DF-S6 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2009...

  • Page 3: Table Of Contents

    Contents Safety precautions Before using for the first time ......Correct use ........Children in the home .
  • Page 4 … Contents Accessories and spare parts Technical data Disposal Index Repair service Quick instructions...

  • Page 5: Safety Precautions

    Safety precautions The appliance corresponds to recognised technology standards and the relevant safety regulations. Proper use of the appliance is however essential to avoid damage and accidents. Please there- fore follow the precautions given in these operating instructions. In accordance with the requirements of IEC 60335-1: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless supervised or unless they have been given instruction...

  • Page 6: Correct Use

    … Safety precautions Correct use The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface. Any repairs, modifications or manipulations to the appliance, especially any electrically live parts, should only be carried out by the manufacturer, its Customer Services or similarly qualified persons.

  • Page 7: Note On Use

    … Safety precautions Note on use If the appliance is visibly damaged, do not use it. Contact our Customer Services. If the appliance is not operating properly, disconnect it from the electricity supply immediately. Do not flambé food underneath the hood as the grease filters if laden with grease could catch fire.
  • Page 8 … Safety precautions If other appliances – fuelled by gas or other fuels – are being used at the same time, ensure that there is a sufficient supply of fresh air. This does not apply to air recirculation appliances. If other firing systems are being used at the same time (e.g. wood, gas, oil or coal-fired heating appliances), safe operation is only possible providing a room negative pressure of 4 Pa (0.04 mbar) is not exceeded at the loca- tion of the appliance.

  • Page 9: Appliance Description

    Appliance description The appliance is used to extract cooking fumes and smells from a cooking area and is normally installed in an overhead unit. This particular model can be used in the extraction mode or the recirculation mode. Extraction model The integrated fan extracts cooking fumes and smells from above the cooking surface.

  • Page 10: Features

    … Appliance description Features Flat pull-out deflector plate 2 extractor fans 2 metal grease filters Cooking surface illumination 1 activated charcoal filter (only with air recirculation, not supplied) The extractor fan has 3 power levels: 1 = low, 2 = medium, 3 = high capacity Levels 1 and 2 are suitable for longer periods of use.

  • Page 11: Operating Elements

    … Appliance description Operating elements Slide switch Extractor fan ON / OFF (3 levels) Illumination ON / OFF Depending on the model and design, the specification of your appli- ance may differ from the standard specification herein.

  • Page 12: Use

    Switching appliance on The illumination and the extractor fans can only be switched on when the flat pull-out deflector plate has been pulled out. Pull out the flat pull-out deflector plate. The appliance is most effective when the flat pull-out deflector plate is completely pulled out.

  • Page 13: Switching The Illumination On And Off

    … Use Switching the illumination on and off Slide the switch to the position. To switch off, set the switch to Switching off the appliance Push in the flat pull-out deflector plate completely. – This switches off the extractor fans and the illumination, even when the sliding switch is not set If the flat pull-out deflector plate is then pulled out a little, the extractor fans switch on at the level set and the illumination comes on.

  • Page 14: Care And Maintenance

    Care and maintenance Cleaning the housing Take care that no water gets into the housing of the appliance! If water gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool, etc. as they can damage the surface.

  • Page 15: Cleaning The Grease Filters

    … Care and maintenance Cleaning the grease filters The grease filters should be cleaned at least once a month with normal use. If properly cared for, the grease filters should provide unlimited years of service. The grease filters can be cleaned in a dishwasher. Select an «intensive»...
  • Page 16 … Care and maintenance Removing the grease filters Push in the flat pull-out deflector plate 1 completely. Pull down the handle 2 and pull towards the outside of the appliance. – This releases the grease filter, allowing it to be be pulled downwards. Remove the upper grease filter in the same way.
  • Page 17 … Care and maintenance Installing the grease filters Push in the flat pull-out deflector plate 1 completely. Take hold of the grease filter and insert fixed centring pins on one side (either left or right) into the slots for the upper grease filter. Pull back the centring pins on the other side using the handle 2 and slot in.

  • Page 18: Replacing The Standard Activated Charcoal Filter

    … Care and maintenance Replacing the standard activated charcoal filter Remove screw fuse or switch off circuit breaker. Standard activated charcoal filters are only used in the recirculation model. The standard activated charcoal filter is to be replaced after an operating time of 3 to 6 months.

  • Page 19: Cleaning And Replacing Long-Life Activated Charcoal Filters

    … Care and maintenance Cleaning and replacing long-life activated charcoal filters Remove screw fuse or switch off circuit breaker. Long-life activated charcoal filters are only used in the recirculation model. Unlike the standard activated charcoal filter, the long-life activated filter can be cleaned and reactivated.

  • Page 20: Replacing The Light Bulb

    … Care and maintenance Replacing the light bulb Remove the appliance’s screw fuse or switch off the circuit breaker. Light bulbs get hot during operation! Allow to cool down first. Open the illumination cover 1: Push back both locking slides 2 and swing down the illumination cover.

  • Page 21: Trouble-Shooting

    Trouble-shooting What to do if … … the illumination is not working Possible cause Solution The fuse or the circuit Replace the fuse. breaker for electrical Reset the circuit breaker. installations in the home is faulty. Interruption in the power Check the mains supply.

  • Page 22: Accessories And Spare Parts

    Accessories and spare parts Please give model number and exact description when ordering parts. Light bulb 230 V / 40 W Metal grease filter Standard activated charcoal filter Long-life activated charcoal filter The light bulb is also available from specialist retailers.

  • Page 23: Technical Data

    Technical data Electrical connection See identification plate Remove metal grease filter. – The identification plate is located on the inside of the appliance.

  • Page 24: Disposal

    Disposal Packaging All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety Disable the appliance to prevent accidents caused by improper use,...

  • Page 25: Index

    Index Accessories........22 Handle ........... 10 Ordering ........27 Activated charcoal filter ....9 Air recycling cassette ....9 Identification plate ....... 23 Appliance Illumination........10 Switching off ......13 Switching off......13 Switching on ......12 Switching on......13 Appliance description ....
  • Page 26 … Index Safety ..........24 Technical data ......23 Safety precautions Trouble-shooting......21 Before using for the first time . 5 Type ..........2 Children in the home ....6 Correct use......... 6 Note on use........ 7 Use..........12 Service agreement ...... 27 Using for the first time....

  • Page 27: Repair Service

    Remove metal grease filter. – The identification plate is located on the inside of the appliance. If the appliance is not working properly, contact your nearest V-ZUG Ltd service centre using freephone 0800 850 850 and stand in close proximity to the appliance.

  • Page 28: Quick Instructions

    Switching off Slide the sliding switches to position or push in the flat pull-out deflector plate. V-ZUG Ltd Industriestrasse 66, 6301 Zug Tel. +41 (0)41 767 67 67, Fax +41 (0)41 767 61 61 vzug@vzug.ch, www.vzug.ch Service Centre: Tel. 0800 850 850...
