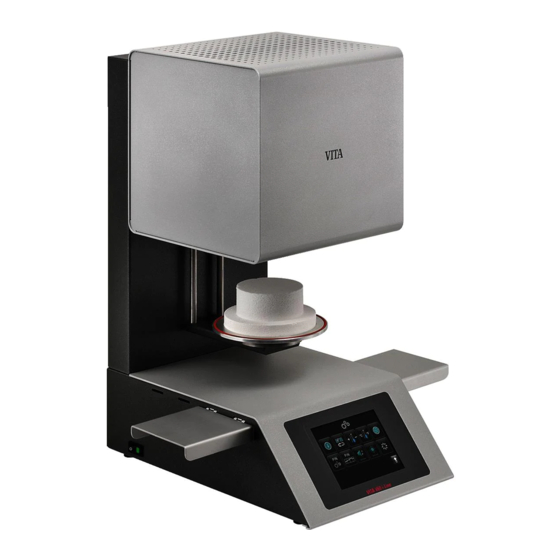

- Page 1 VITA V60 i-Line ® Operating manual VITA Farbkommunikation VITA Farbkommunikation VITA shade determination VITA shade communication VITA shade reproduction VITA shade control Date of issue 02.15 VITA shade, VITA made.
-
Page 3: Table Of Contents
VITA V60 i-Line ® Table of contents Foreword Operation and functions Keypad functions Dear Customer Starting / selecting firing programs Scope of delivery Device supplied in a special box with: Modifying program values Accessories (can be purchased separately): 20.1 Pre-drying Technical information 20.2 Increase in temperature and temperature hold time 19... -
Page 4: Foreword
2.1 Dear Customer, Congratulations on your decision to purchase VITA V60 i-Line, a modern furnace system for dental use. As a quality manufacturer of ceramic dental materials and devices, VITA Zahnfabrik can assure you that only materials of superior quality have been used in the development and manufacture of VITA V60 i-Line. -
Page 5: Scope Of Delivery
VITA V60 i-Line ® 3 Scope of delivery 3.1 Device supplied in a special box with: • 1 furnace: VITA V60 i-Line • 1 firing socket • 1 power supply cable • 1 operating manual • 1 connection cable for the vacuum pump •... -
Page 6: Electrical Specifications
VITA V60 i-Line ® Electrical specifications Furnace • Electrical connection: 230 VAC, 50 Hz or 100 / 110 VAC, 50 / 60 Hz • Power consumption: max. 1500 W 6.2 VITA vacuum pump • Electrical connection: 230 V, 50 / 60 Hz or 100 / 110 V, 50 / 60 Hz •... -
Page 7: Safety Information
VITA V60 i-Line ® Safety information 8.1 Symbols Hazardous voltage This symbol warns of hazardous voltage. Before opening the device, it must be disconnected from the mains power supply by pulling out the mains plug. Separate disposal Ensure that electrical/electronic devices are disposed of separately, and not together with household waste. -
Page 8: Installation And Connections
VITA V60 i-Line ® Installation and connections 9.1 Installation location • Install the device in a dry, heated room so that the distance to the closest wall is at least 25 cm (see section 8.2 Ambient conditions). • When the temperature is below 15 °C (e.g. after transport), leave the device to stand for approx. -
Page 9: Startup
VITA V60 i-Line ® 10 Startup Before startup, note the safety information in section 1.10! For information about the connections provided by the device, see section 9.2 • Connect the vacuum pump to the device with the electrical connection and tube connection. -
Page 10: Cleaning The Furnace
VITA V60 i-Line ® 11 Cleaning the furnace Important: Always pull out the mains plug before cleaning! It is not necessary to clean the inside of the firing chamber. Cleaning the casing at regular intervals with a damp cloth contributes to operational reliability. -
Page 11: Ce Marking
VITA V60 i-Line ® 12 CE marking With the CE mark, a legally binding declaration is made to the effect that the device corresponds to the fundamental requirements of directive 2006/95/EC (Low Voltage Directive) and directive 2004/108/EC/EWG (EMC Directive). 13 Mains power supply failure The device is equipped with power failure protection. -
Page 12: Warranty And Liability
Warranty and liability are regulated in accordance with the terms and conditions of the contract. In the event of software modifications without the knowledge and approval of VITA Zahnfabrik H. Rauter GmbH & Co. KG, all liability and warranty entitlements are invalidated. -
Page 13: Switching On The Device
VITA V60 i-Line ® 16 Switching on the device Switch on the device using the main switch (on the left of the device). The red and green LEDs next to the display light up. If the firing chamber temperature is less than 200 °C, the lift performs a reference run. -
Page 14: Operation And Functions
VITA V60 i-Line ® 17 Operation and functions Program overview 1st dentine firing Program sections Name Function Reference , program is freely accessible – , program is locked Program lock Lock is open Lock is closed 20.7 Program number Input field for program numbers 1 - 200... -
Page 15: Keypad Functions
VITA V60 i-Line ® 18 Keypad functions Touching a program area in the program overview displays the corresponding editing window with a keypad. The values set in the program sections can be modified in the editing window. Example: Vacuum editing... -
Page 16: Starting / Selecting Firing Programs
® 19 Starting / selecting firing programs In VITA V60 i-Line, firing programs are already pre-programmed for VITA ceramic materials. These correspond to the settings recommended by VITA. A firing program is selected by entering the number. The preset program number assignment can be viewed via the program names (see section 20.8... -
Page 17: Modifying Program Values
VITA V60 i-Line ® 20 Modifying program values To modify program values, touch the relevant program area in which the values are to be changed. The corresponding editing window opens and modifications can be made to the program. Pre-drying 1st increase in tem-... -
Page 18: Pre-Drying
VITA V60 i-Line ® 20.1 Pre-drying Selected program area, here: pre-drying, is shown as active Press the pre-drying program area. The display field for the pre-drying time lights up in light blue and is active. Enter The display shows: the value for the time using the keypad. -
Page 19: Increase In Temperature And Temperature Hold Time
VITA V60 i-Line ® 20.2 Increase in temperature and temperature hold time The device is fitted with two program sections for increases in temperature and temperature hold time. 1st increase in temperature / hold time shown as active The 1st increase in temperature / hold time and 2nd increase in temperature / hold time can each be activated or deactivated. -
Page 20: Cooling
VITA V60 i-Line ® 20.3 Cooling The max. value depends on the end hold temperature. The cooling temperature must be lower than the end hold temperature. Only values shown in the input field can be set. Program values that have been modified are shown in red in the program overview and can be used for a program sequence or saved permanently using the save button in the program overview. -
Page 21: Vacuum Setting
VITA V60 i-Line ® 20.4 Vacuum setting The time and temperature values for switching the vacuum pump on and off depend on the program values already defined. If the pre-drying temperature or the end temperature are changed, the activation temperature of the vacuum pump is set to the pre-drying temperature and the vacuum time (operating time of the vacuum pump) to the rise time. -
Page 22: Saving Program Values
VITA V60 i-Line ® 20.5 Saving program values Program values that have been modified are shown in red on the display and the save button is active. By pressing the save button, they are shown in white. In the case of locked programs, the PIN must be entered once the save button has been pressed. -
Page 23: Program Lock
VITA V60 i-Line ® 20.7 Program lock Two modes are shown on the program lock button: • Lock is open – program parameters can be modified and saved as required Program lock button • Lock is closed – program parameters can be modified as required,... -
Page 24: Creating / Modifying Material Names
VITA V60 i-Line ® 20.8 Program names – creating / modifying material names Program name To create a new program, press the program name button. An overview is 1st dentine firing shown that is divided into columns containing the program number, material and program name for more than one second. -
Page 25: Device Settings
VITA V60 i-Line ® 21 Device settings Press the device settings: 2nd dentine firing Device settings Display shows the following configuration buttons: Name Function Reference Device information 21.1 Information on the device Factory defaults 21.2 Restores the basic settings Temperature setting Temperature verification using the silver test function 21.3... -
Page 26: Device Information
Heating hours muffle Returns to the overview of the device settings 21.2 Factory defaults Pressing this button sets the program memory back to the default VITA firing programs set in the factory. Reset VITA firing programs? Number of non-VITA firing pr Important: Programs entered by the user will be deleted. -
Page 27: Temperature Setting
21.3 Temperature setting Temperature calibration using the silver test function Using this program together with the VITA Silver Test Set (VITA order no. B 230), the temperature in the firing chamber can be verified and readjusted within a range of plus / minus 40 °C. During calibration, ensure that the instructions for carrying out the silver test are strictly observed (see instructions provided with the silver test set). -
Page 28: Temperature Display °C Or °F
VITA V60 i-Line ® 21.4 Temperature display °C or °F Select the required display unit. The setting is saved automatically. 21.5 Language Select the required language. The setting is saved automatically. 21.6 PIN-input for device settings The device settings can be protected against changes using a PIN lock. -
Page 29: Pin-Input For Firing Programs
VITA V60 i-Line ® 21.7 PIN-input for firing programs Firing programs can be protected against changes by entering a PIN. The PIN entered here is then used to protect individual firing programs. Protected programs can be used by any operator. Changes can be made once. -
Page 30: Tone Duration For The Speaker
VITA V60 i-Line ® Program lock active (lock is closed) Glaze Firing Press the save button, Program lock is saved The program is now locked until a program change is implemented. To save the program lock permanently, press the save button and enter the PIN again. -
Page 31: Display Settings
VITA V60 i-Line ® 21.10 Display settings The brightness of the display can be set by activating / deactivating a particular number of buttons. A change is saved automatically. Touch calibration can be necessary when the touchscreen no longer reacts properly to touch. -
Page 32: Recording Process Data / Firing Data System
VITA V60 i-Line ® 22 Recording process data / firing data system (FDS) In order to view firing curves in the FDS, the corresponding process data must be exported from the furnace. Create a folder called "processdata" on any USB flash drive. With the device switched off, insert this USB flash drive into the USB port of the device. -
Page 33: Software Update
VITA V60 i-Line ® 23 Software update The latest software is available on the VITA homepage at https://www.vita-zahnfabrik.com/ , under Documents & Media / Download center / Product information / Software Updates. Once the device type has been selected, the latest software can be selected and copied to a USB flash drive. -
Page 34: Error Messages
VITA V60 i-Line ® 24 Error messages When errors occur, these are shown on the display. The following error messages may appear. They can be reset using the confirmation button. However, the error message can only be permanently reset when the fault has been rectified. -
Page 35: Alphabetical Index
VITA V60 i-Line ® 25 Alphabetical index Ambient conditions PIN-input for device settings PIN-input for firing programs Power failure protection 7, 11 Brightness Pre-drying Program lock Program names CE marking Program overview Cleaning firing Prohibited modes of operation Cleaning the touchscreen... - Page 36 (culpa in contrahendo, breach of contract, unlawful acts, etc.) can only be made in the case of intent or gross negligence. The VITA Modulbox is not necessarily a component of the product. Date of issue of these working instructions: 07.13 VITA Zahnfabrik H.
