- Page 1 VITA Easyshade® LITE Instructions for use VITA Farbkommunikation VITA Farbkommunikation VITA shade determination VITA shade communication VITA shade reproduction VITA shade control Date of issue: 2023-03...
- Page 2 VITA Easyshade® LITE Purchase date: Serial number of the VITA Easyshade LITE Handpiece: Serial number of the calibration block holder: (The number must correspond to the handpiece) Serial number of the VITA Easyshade LITE calibration station: Dealer:...
-
Page 3: Table Of Contents
Display of shade differences 5.1.1 Green background 5.1.2 Yellow background in top line 5.1.3 Yellow background in bottom line 5.1.4 Red background in bottom line VITA SYSTEM 3D-MASTER® interpolated shades Switching the instrument off Cleaning and disinfecting the housing Appendix Error message... -
Page 4: Introduction And Explanation Of Symbols
5. Always replace all batteries at the same time, not just individual ones. 6. Never look directly into the measuring tip of the VITA Easyshade LITE while the light source is switched on. 7. Do not immerse the VITA Easyshade LITE handpiece or the calibration station in water or other liquids. - Page 5 9. Do not expose the instrument to temperatures over 60 °C or under 0 °C. 10. General dental and technical work and safety measures must be observed during use of the VITA Easyshade LITE. 11. Protect the instrument from direct sunlight.
- Page 6 VITA Zahnfabrik to provide support or other services in connection therewith. Any right or license to use any software data, information or other intellectual property rights of VITA Zahnfabrik, or any obligation to provide support, must be conveyed by separate written agreement with VITA Zahnfabrik.
-
Page 7: General Product Description

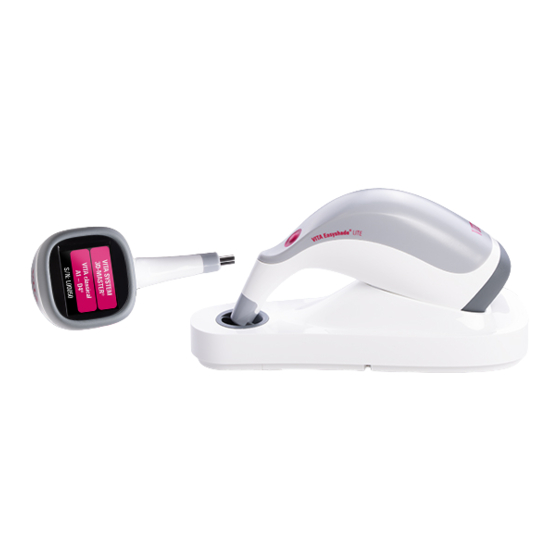

– General product description 2 General product description The VITA Easyshade LITE is a spectrophotometer that makes it possible to obtain a quick and precise determination of tooth shade with one click. The compact design and simple operation make it a practical tool for the precise shade determination of natural teeth using the tooth shade reference values of the VITA classical A1–D4 and VITA SYSTEM... -
Page 8: Scope Of Delivery And Replacement Parts
VITA Zahnfabrik service hotline immediately. Phone: +49 7761 562-222 3.2 Replacement parts and accessories for users The following replacement parts and accessories can be obtained from VITA Zahnfabrik: Product Piece count VITA article number Sales and shipping packaging... -
Page 9: First Use
Table 5 – Overview of the instrument 4.2 Inserting or changing batteries Insert the supplied batteries into the VITA Easyshade LITE to put the instrument into operation for the first time. When the instrument has been put into operation, you can read the charge status of the battery at the bottom left of the display. - Page 10 VITA Easyshade® LITE – First use Figure 2 – Changing batteries: Pull top cover off Figure 3 – Changing batteries: Remove battery on right Figure 4 – Changing batteries: Remove battery on left Figure 5 – Changing batteries: Insert new battery...
-
Page 11: Switching On
Change the batteries as described in section 4.2 when the indicator appears red. If a VITA Easyshade LITE symbol appears at the bottom right, you must calibrate the instrument as described in section 4.6. -
Page 12: Disinfecting
Figure 9 – Disinfecting 4.6 Calibration (automatic white balance) After switching on, place the VITA Easyshade LITE in the calibration station with the tip flush on the calibration block. The VITA Easyshade LITE recognizes the calibration block and now performs the white balance automatically. -
Page 13: Correct Measuring Of Tooth Shade
VITA Easyshade® LITE – First use Note: The VITA Easyshade LITE is calibrated to the supplied calibration block at delivery and may only be used with this calibration block. If you have more than one VITA Easyshade LITE, you should ensure that the calibration stations are not mixed up, to ensure the accuracy of the measurements. - Page 14 Note: You can press the measurement button before placing the measuring tip on the tooth. The VITA Easyshade LITE does not trigger the measure- ment until the instrument is placed on the tooth. If you lift the measuring tip off the tooth before the instrument produces a signal tone, you will receive an error Figure 13 –...
-
Page 15: Display Of The Measured Values
5.1 Display of shade differences Using a traffic light principle, the VITA Easyshade LITE shows how precisely the measured tooth shade matches the next VITA SYSTEM 3D-MASTER or VITA classical A1–D4 shade. The degree of the match is symbolized by a green, yellow or red background. -
Page 16: Yellow Background In Top Line
The value indicated on the left is the best match. It has a noticeable, but acceptable difference from the indicated VITA SYSTEM 3D-MASTER. The value indicated on the right is the second best match. By mixing the veneering materials of both shades, a perfect match can be achieved. -
Page 17: Vita System 3D-Master® Interpolated Shades
5.2 VITA SYSTEM 3D-MASTER® interpolated shades The 29 VITA SYSTEM 3D-MASTER shades can be found in bold print in the tables below. The tables also show the 52 interpolated shades that can be obtained with an equal mixture of the respective VITA SYSTEM 3D-MASTER materials. -
Page 18: Switching The Instrument Off
– Switching the instrument off 6 Switching the device off The VITA Easyshade LITE switches off automatically after two minutes of inactivity. If you wish to switch the device off manually, hold down the measuring button on the top of the device until the screen switches off. To switch the device on again, press the measuring button again. -
Page 19: Cleaning And Disinfecting The Housing
– Cleaning and disinfecting the housing 7 Cleaning and disinfecting the housing The surface of the VITA Easyshade LITE can be disinfected. We recommend commercial disinfectant wipes. These can be obtained from most dental dealers. Please follow the respective manufacturer's instructions for use. -
Page 20: Appendix
VITA Easyshade® LITE – Appendix 8 Appendix 8.1 Error message Error No. Symbol Meaning No measurement object was recognized. Please repeat the measurement procedure. The shade is outside of the measurement range. Please perform a white balance. The battery is low. - Page 21 VITA Easyshade® LITE – Appendix Error No. Symbol Meaning Instrument temperature too low during measurement (< 16°C). Permissible operat- ing temperature: min. 16°C, max. 45°C. Instrument temperature too high during measurement (> 45°C). Permissible operat- ing temperature: min. 16°C, max. 45°C.
-
Page 22: Troubleshooting
Place the measuring tip again as requested. After switching on, no With the VITA Easyshade LITE, a white balance must measurement is possible first be performed after the instrument is switched with VITA Easyshade LITE. on. Only after this, is a measurement possible. -
Page 23: Technical Data
VITA Easyshade® LITE – Appendix 8.3 Technical data Length / Width / Height: 20.5 cm / 8.5 cm / 10.5 cm Weight: Approx. 385 g Batteries: 2 pieces, AA batteries (1.5 V) LR6 Classifications: EN 60601-1:2010 UL 60601-2:2012 (3 Ed.) CAN/CSA-C22.2 NO. -
Page 24: Glossary
Refers to the 29 shade sample teeth, including three bleached shade samples of the lightness group 0 and the 52 interpolated shades of the VITA SYSTEM 3D-MASTER. VITA classical A1–D4® shades Refers to the 16 original VITA classical A1–D4 shades of the VITA classical A1–D4 shade guide. Interpolated shades Mixing two or more shades of ceramic materials of the VITA SYSTEM 3D-MASTER®... -
Page 25: List Of Tables
Table 3 – Scope of delivery Table 4 – Replacement parts and accessories Table 5 – Overview of the instrument Table 6 – VITA SYSTEM 3D-MASTER® Table 7 – Overview of the error codes Table 8 – Overview of troubleshooting 8.6 List of illustrations... -
Page 26: Patents And Trademarks
All trademarks mentioned in this document are the property of the respective company. 8.8 Warranty The warranty claims of the first buyer of the VITA Easyshade LITE arise from the General Terms and Conditions of VITA Zahnfabrik and the regulations of the law. - Page 27 VITA Easyshade® LITE...
- Page 28 The VITA Modulbox is not necessarily a component of the product. Date of issue of this information: 2023-03 After the publication of this information for use any previous versions become obsolete.
