5.5.2 AC connection
Step 1: Assembling AC cables to connector supplied. See "5.5.1 AC Output Wring".
Step 2: Make sure that AC and DC circuit breaker are disconnected.
Step 3: Connect L, N to AC circuit breaker.
− Plug AC connector to corresponding AC terminals.
− Screw AC cables to AC circuit breaker.
Step 4: Connect PE to the ground.
Step 5: Connect AC circuit breaker to utility grid.
Step 6: Make sure that all AC cables are firmly installed.

5.6 Connecting communication cable

5.6.1 Assembling the RS485 plug connector

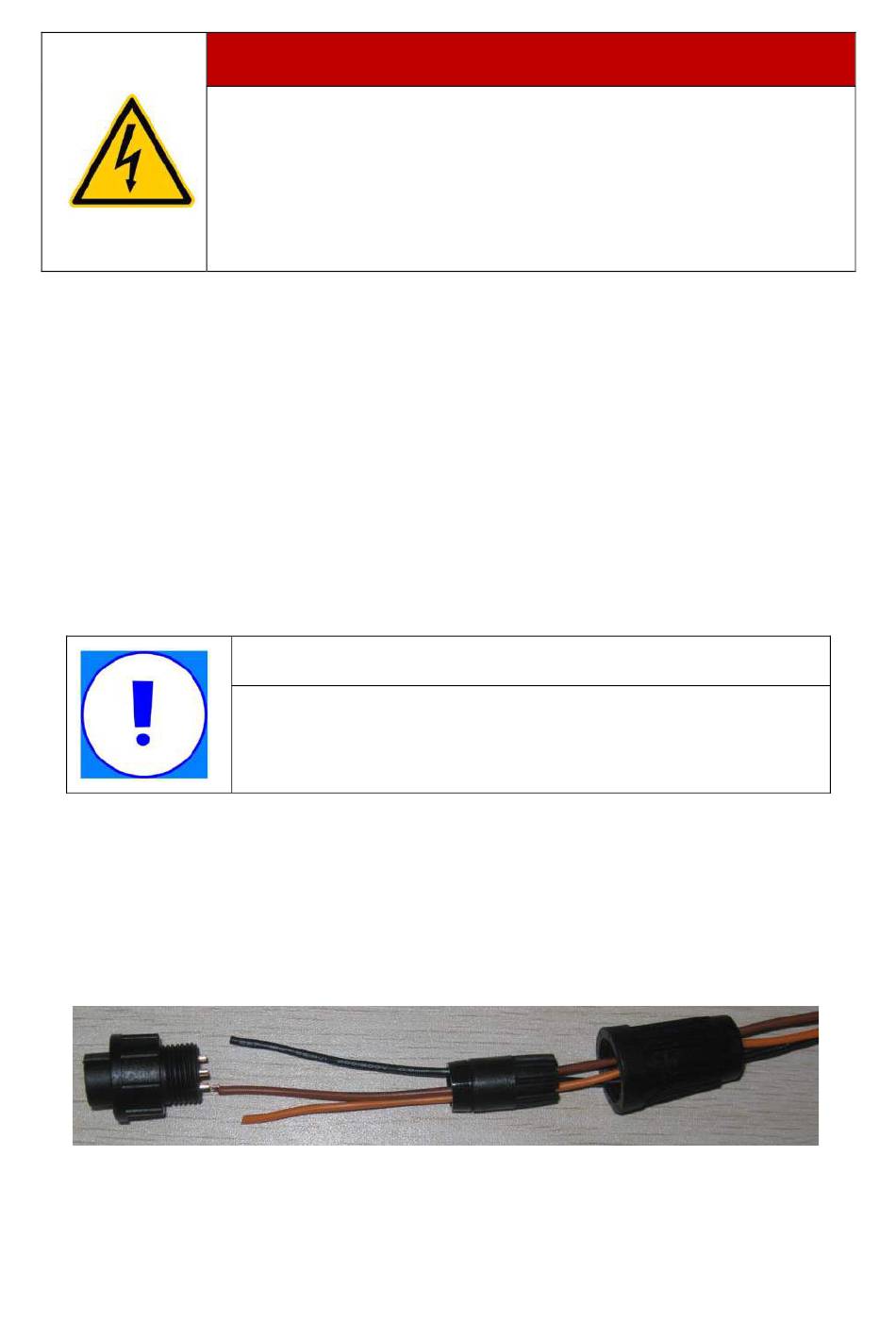

Step 1: Make the communication cable through the waterproof ring, and then
connect the cables to the terminal.
DANGER! Danger to life due to fire or explosion!
Despite careful construction, electrical devices can cause fires.
• Do not pull out the connector, when grid-connected inverter is working,
so as to avoid electric shock hazard.
• Do not immediately contact pin, when grid-connected inverter after
disconnection, there may be residual electricity,
NOTICE
Assignment of AC cables should be paid attention to, especially
"PE/GND" wire.
- 20 -
