The machine should be installed in the reinforced concrete wall or metal wall that
can bear the weight of the inverter. It should not be installed in the wood to keep
from danger of fire.
Height from ground level should be such as to ensure that the display and status
LEDs are easy to read.
Ensure the temperature range can keep in the range (-25°C — +50°C)
Allow sufficient room around the inverter to enable easy installation and removal
from the mounting surface.
There must be sufficient clearance between the individual inverters so that the
cooling air from the adjacent inverter is not drawn in.

4.3 Wall mounting

Included in the shipping package is a mounting kit with 6 screws and 6 wall plugs
provided for mounting the metal bracket to a concrete wall. The screws should be
mounted in the 6 holes present in the bracket (as Figure 5 shows).

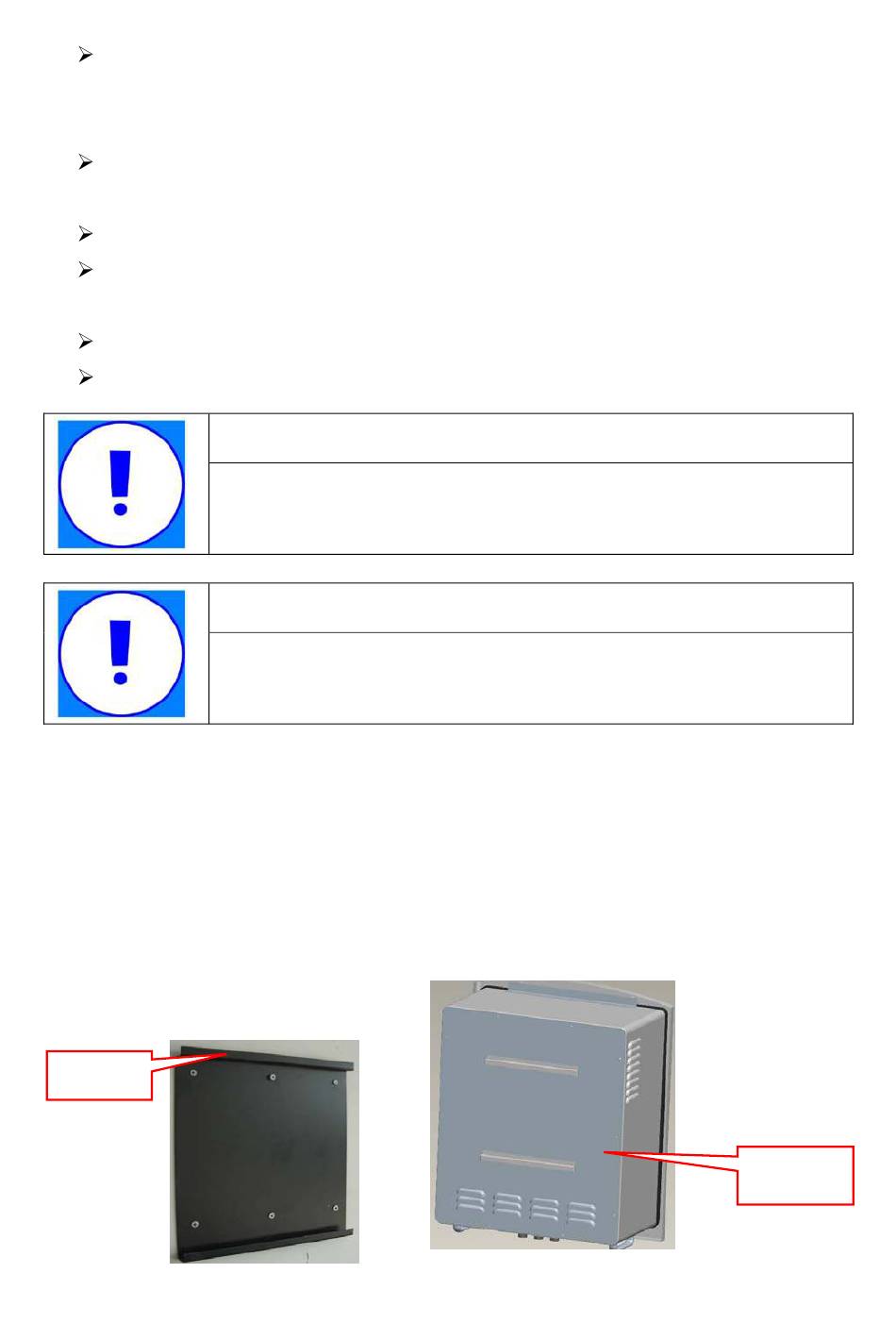

After the bracket is secured to the wall, hang the inverter on the bracket. As shown
below.
Bracket
NOTICE
Ambient temperature range shall be -20°C to +50°C. It will affect the
power output when the temperature exceeds the limit.
NOTICE
Environment humidity must be in the range of 4% ~ 100%.
Figure 6 Installation for cabinet
- 11 -
Rear panel
