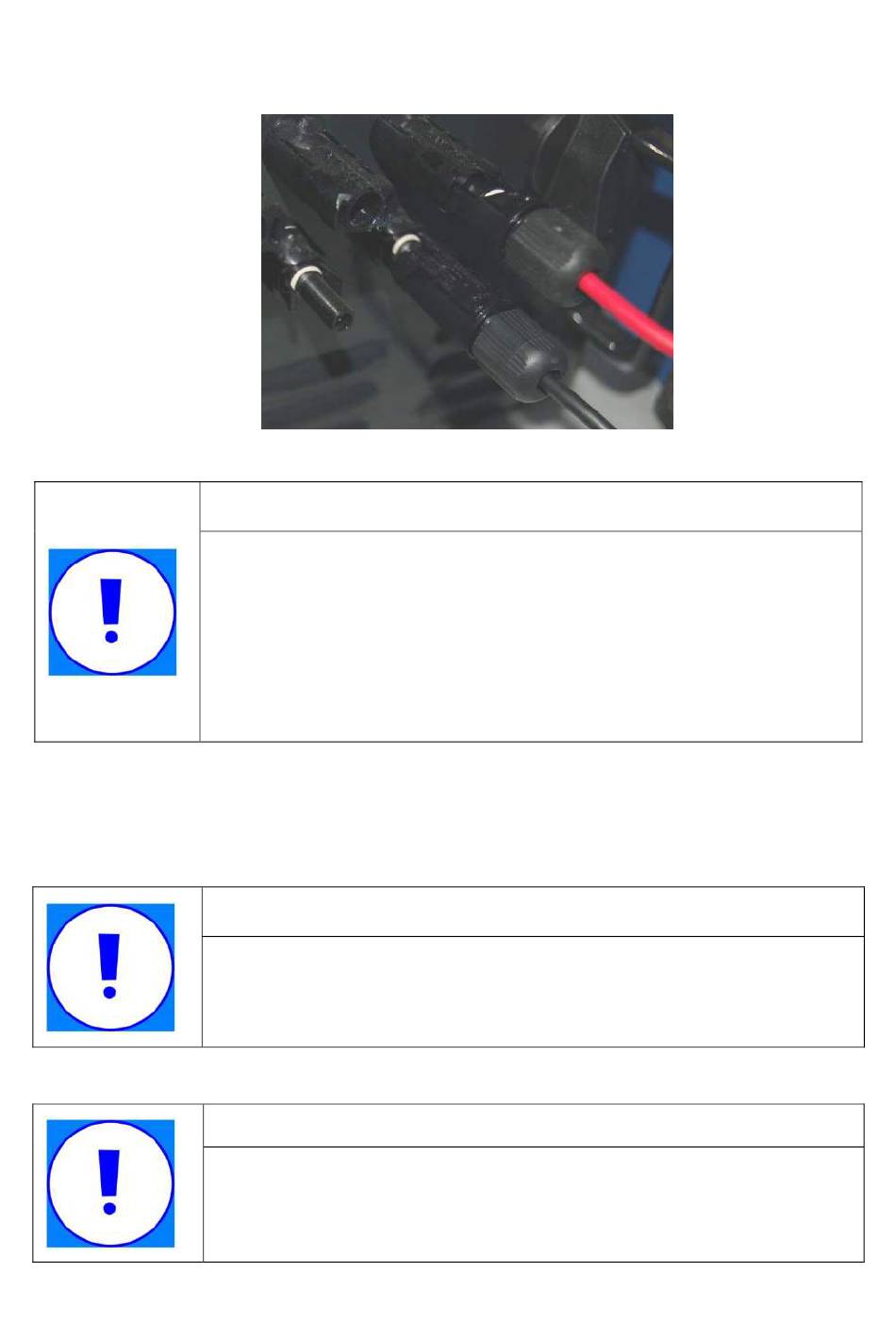

Step 5: Plug DC positive and negative connector into corresponding terminals. If it
makes a click sound, it means DC connector has attached to terminals.
Step 6: Link the rest of the two photovoltaic module strings in the same manner.

5.5 Connecting inverter to AC grid

5.5.1 AC output wiring

Ⅰ: Do not plug in AC output terminal installation method
NOTICE
To create the sealing of the inverter, all the DC inputs that are not required
have to be closed as follows:
– Insert the sealing plugs provided into the DC plug connectors that are not
required. Do not insert the sealing plus into the DC inputs on the inverter.
– Insert the DC plug connectors with sealing plugs into the corresponding
DC inputs on the inverter.
NOTICE
As the series of products, in the KWpower section, there are two kinds
of AC output terminals, So,in the installation of
install personnel to select the corresponding installation method
NOTICE
The following installation method applicable to the series, with the
exception of the special
Figure 3
; External Appearance as shown in
- 16 -
machine, please
