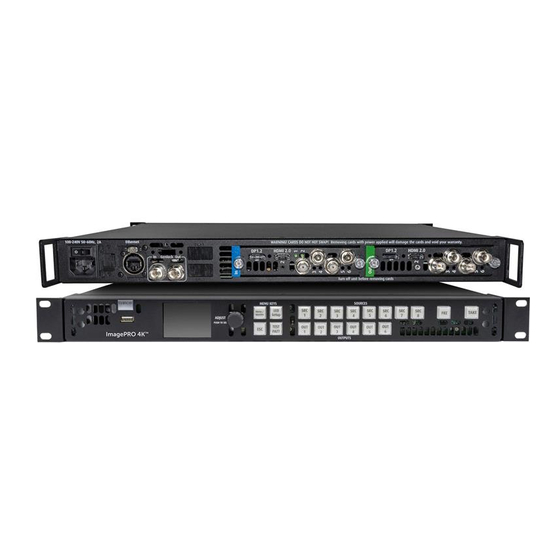

ImagePRO–4K Safety Guide Sicherheitshandbuch Guía de seguridad Guide de sécurité Guida alla sicurezza Veiligheidsgids Guia de segurança Руководство по технике безопасности Säkerhetsguide 安全ガイド 안전 가이드 安全指南 安全指南 ENABLING BRIGHT OUTCOMES...
Page 2
Registered address: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Barco Inc, Image Processing 3078 Prospect Park Drive, Rancho Cordova, CA , 95670, USA www.barco.com/en/support www.barco.com...
A printed copy of the Safety Guide and Quick Start Guide is included in the ImagePRO–4K box at purchase. Please check online for the other documents. Always check for the latest version of the manual at the following address. Click on the ImagePRO– 4K product page and go to the “Downloads” tab. www.barco.com/en/Products-Solutions/Image-processing/Presentation-switchers R5906169-00 ImagePRO–4K...
Safety guidelines 1.1 General considerations General safety instructions • Before operating this equipment please read the ImagePRO–4K User Guide thoroughly and retain it for future reference. • All warnings in this documentation manual should be adhered to. • All instructions for operating and use of this equipment must be followed precisely. •...
Page 6
Safety guidelines • During maintenance operations, always switch off the unit and unplug the power cords before removing the cover, unless otherwise stated. • Always wear a wrist band which is connected to the ground while handling the ESD sensitive parts. •...
Safety guidelines 1.4 Plug types AC Power cord with NEMA 5/15 plug up to 13 A The wires of the power cord are colored in accordance with the following code: Green or yellow + green: Earth (Ground) Blue or white: Neutral Brown or black: Line (Live) Power cord with GB 2099 plug up to 10 A The wires of the mains lead are colored in accordance with the following code:...
Page 8
R5906169-00 | 12/07/2018 Barco Inc, Image Processing | 3078 Prospect Park Drive, Rancho Cordova, CA , 95670, USA Registered address: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
Page 9
Sicherheitsrichtlini- Über dieses Kapitel Lesen Sie dieses Kapitel aufmerksam, es enthält wichtige Informationen zur Verhinderung von Personenschäden bei der Nutzung des ImagePRO– 4K Videoprozessors. Darüber hinaus enthält dieses Kapitel diverse Warnhinweise zur Vermeidung von Beschädigungen des ImagePRO– 4K Videoprozessors. Stellen Sie sicher, dass Sie alle Sicherheitsrichtlinien, Sicherheitsanweisungen und Warnungen in diesem Kapitel verstehen und befolgen können, bevor Sie den ImagePRO–4K Videoprozessor verwenden.
Page 10
Sicherheitsrichtlinien Informieren Sie sich stets unter der folgenden Adresse, wie die aktuelle Version des Handbuchs lautet. Klicken Sie auf die ImagePRO–4K-Produktseite und öffnen Sie die Registerkarte „Downloads“. www.barco.com/en/Products-Solutions/Image-processing/Presentation-switchers R5906169DE-00 ImagePRO–4K...
Sicherheitsrichtlinien 1.1 Allgemeine Hinweise Allgemeine Sicherheitsanweisungen • Bitte lesen Sie das Benutzerhandbuch des ImagePRO–4K sorgfältig vor Inbetriebnahme dieses Geräts, und halten Sie es griffbereit, um später darin nachschlagen zu können. • Alle in diesem Handbuch enthaltenen Warnungen müssen beachtet werden. •...
Page 12
Sicherheitsrichtlinien • ZERBRECHLICH: Der ImagePRO–4K Videoprozessor ist zerbrechlich. Behandeln Sie die Einheit jederzeit mit Sorgfalt. • Entfernen Sie nicht die obere Abdeckung während des normalen Betriebs. Bei Entfernen der oberen Abdeckung liegen Teile frei, die unter gefährlich hoher Spannung stehen. Um Verletzungen zu vermeiden, entfernen Sie die obere Abdeckung nicht.
Page 13
Sicherheitsrichtlinien Umgebung Betrieb Ohne Betrieb Luftfeuchtigkeit 5 % bis 85 % relative Luftfeuchte nicht 0 % bis 95 % relative Luftfeuchte kondensierend nicht kondensierend Höhe -60 bis 3.000 m -60 bis 10.000 m Umgebung Installieren Sie das Gerät nicht in der Nähe von Wärmequellen wie Heizkörpern oder Luftschächten oder an Stellen mit direktem Sonnenlicht, starker Staubentwicklung oder Feuchtigkeit.
Page 14
R5906169DE-00 | 12/07/2018 Barco Inc, Image Processing | 3078 Prospect Park Drive, Rancho Cordova, CA , 95670, USA Registered address: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
Guía de inicio rápido en la caja del ImagePRO–4K. Busque en línea los otros documentos. Busque siempre la última versión del manual en la siguiente dirección. Haga clic en la página de producto ImagePRO–4K y vaya a la pestaña de “descargas”. www.barco.com/en/Products-Solutions/Image-processing/Presentation-switchers R5906169ES-00 ImagePRO–4K...
Page 16
Directrices de seguridad R5906169ES-00 ImagePRO–4K...
Directrices de seguridad 1.1 Consideraciones generales Instrucciones de seguridad generales • Antes de poner en funcionamiento este equipo lea la guía del usuario del ImagePRO–4K detenidamente y consérvelo para su consulta en el futuro. • Deben acatarse todas las advertencias en este manual de documentación. •...
Page 18
Directrices de seguridad • No retire la cubierta superior durante una operación normal. La retirada de la cubierta superior expone voltajes peligrosos. Para evitar daños peronales, no retire la cubierta superior. No ponga la unidad en funcionamiento sin la cubierta instalada. •...
Page 19
Directrices de seguridad Operación Sin operación Entorno Humedad 5% a 85% de humedad relativa sin De 0 a 95% de humedad relativa condensación sin condensación Altitud -60 (-197 pies) a 3000 m (9843 pies) -60 (-197 pies) a 10000 m (32810 pies) Entorno No instale el aparato en sitios cercanos a fuentes de calor, tales como radiadores o conductos de aire, ni en...
Page 20
Directrices de seguridad contra el riesgo de incendio. Las pruebas de simulación de condiciones de error individuales garantizan la seguridad del equipo para el usuario, aún cuando el equipo no funcione normalmente. R5906169ES-00 ImagePRO–4K...
Page 21
Directrices de seguridad R5906169ES-00 ImagePRO–4K...
Page 22
R5906169ES-00 | 12/07/2018 Barco Inc, Image Processing | 3078 Prospect Park Drive, Rancho Cordova, CA , 95670, USA Registered address: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
à la livraison lors de l’achat de l’ImagePRO–4K. Veuillez rechercher les autres documents en ligne. Vérifiez que vous avez toujours la dernière version du manuel sur le site Internet ci-dessous. Cliquez sur la page du produit ImagePRO–4K et allez sur l’onglet « Téléchargements ». www.barco.com/en/Products-Solutions/Image-processing/Presentation-switchers R5906169FR-00 ImagePRO–4K...
Page 24
Consignes de sécurité R5906169FR-00 ImagePRO–4K...
Consignes de sécurité 1.1 Considérations générales Consignes de sécurité générales • Avant de faire fonctionner cet appareil, veuillez lire attentivement le guide de l’utilisateur de l’ImagePRO– 4K et le conserver à des fins de consultation ultérieure. • Tous les avertissements figurant dans ce manuel de documentation doivent être pris en compte. •...
Page 26
Consignes de sécurité • FRAGILE : le processeur vidéo ImagePRO–4K est fragile. Manipulez toujours l’appareil avec le plus grand soin. • N’enlevez pas le couvercle supérieur pendant le fonctionnement normal. Enlever le couvercle supérieur vous expose à des tensions dangereuses. Pour éviter toute lésion corporelle, n'enlevez pas le couvercle supérieur.
Page 27
Consignes de sécurité Environnement En fonctionnement Hors fonctionnement Température ambiante 0°C (32°F) à 40°C (104°F) <tt>-10</tt> <tt>℃ </tt><tt>à 60</ tt> <tt>°C</tt> Environnement de bureau propre (équivalent s.o. État de propreté de l’air à la norme sur les salles blanches ISO 14644-1 Classe ISO 9) Humidité...
Page 28
Consignes de sécurité 1.5 Normes de sécurité internationales Présentation des normes Ce matériel est fabriqué conformément aux normes de sécurité internationales IEC60950-1, IEC62368-1, EN60950-1, UL60950-1 et CAN/CSA C22.2 N ° 60950-1, qui correspondent aux normes de sécurité des appareils informatiques, équipements électriques compris. Ces normes de sécurité imposent des conditions importantes pour l'utilisation de composants, de matières et d'isolants sensibles en termes de sécurité, afin de protéger les utilisateurs ou les opérateurs des risques de décharges électriques, des dangers thermiques et des risques liés au fait d'accéder à...
Page 29
Consignes de sécurité R5906169FR-00 ImagePRO–4K...
Page 30
R5906169FR-00 | 12/07/2018 Barco Inc, Image Processing | 3078 Prospect Park Drive, Rancho Cordova, CA , 95670, USA Registered address: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
Una copia stampata della Guida alla sicurezza e della Guida rapida è inclusa nella confezione di ImagePRO–4K al momento dell’acquisto. Verificare online la disponibilità degli altri documenti. Verificare sempre la disponibilità dell'ultima versione del manuale al seguente indirizzo. Fare clic sulla pagina del prodotto ImagePRO–4K e andare alla scheda “Downloads”. www.barco.com/en/Products-Solutions/Image-processing/Presentation-switchers R5906169IT-00 ImagePRO–4K...
Page 32
Linee guida per la sicurezza R5906169IT-00 ImagePRO–4K...
Linee guida per la sicurezza 1.1 Considerazioni generali Istruzioni generali per la sicurezza • Prima di mettere in funzione l’apparecchiatura leggere attentamente il Manuale dell’utente ImagePRO–4K e conservarlo per riferimenti futuri. • Attenersi a tutti gli avvisi contenuti in questo manuale della documentazione. •...
Page 34
Linee guida per la sicurezza • Non rimuovere il coperchio superiore durante il normale funzionamento. La rimozione del coperchio superiore espone al contatto con parti ad alto voltaggio. Per evitare lesioni personali, non rimuovere il coperchio superiore. Non mettere in funzione l'unità senza il coperchio. •...
Page 35
Linee guida per la sicurezza Ambiente Non installare il dispositivo accanto a fonti di calore come radiatori o condotti d'aria o in un luogo esposto alla luce diretta del sole, eccessiva polvere o umidità. Tenere presente che il calore nella stanza sale verso il soffitto;...
Page 36
R5906169IT-00 | 12/07/2018 Barco Inc, Image Processing | 3078 Prospect Park Drive, Rancho Cordova, CA , 95670, USA Registered address: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
Page 37
Een afgedrukte versie van de veiligheidsgids en de Snelstartgids is bij de aankoop inbegrepen in de ImagePRO-4K-doos. De overige documenten kunt u online raadplegen. Check altijd of u de laatste versie van de handleiding hebt op het onderstaande adres. Klik op de productpagina van ImagePRO-4K en ga naar het tabblad "Downloads". www.barco.com/en/Products-Solutions/Image-processing/Presentation-switchers R5906169NL-00 ImagePRO–4K...
Veiligheidsrichtlijnen 1.1 Algemene overwegingen Algemene veiligheidsinstructies • Lees vóór gebruik van dit apparaat de handleiding voor de ImagePRO-4K grondig door en bewaar deze voor toekomstig gebruik. • Alle waarschuwingen in de handleiding dienen in acht te worden genomen. • Alle instructies voor de bediening en het gebruik van deze apparatuur dienen exact te worden opgevolgd. •...
Page 40
Veiligheidsrichtlijnen • Verwijder nooit de bovenkant tijdens normaal gebruik. Door het verwijderen van de bovenkant wordt u blootgesteld aan gevaarlijke spanningswaarden. Ter voorkoming van persoonlijk letsel mag u daarom nooit de bovenkant verwijderen. Stel het apparaat nooit in werking als de afdekplaat niet is gemonteerd. •...
Page 41
Veiligheidsrichtlijnen Omgeving In gebruik Buiten gebruik Vochtigheid 5% tot 85% RH niet gecondenseerd 0% tot 95% RH niet gecondenseerd Hoogte -60 (-197Ft) tot 3.000 m (9843Ft) -60 (-197Ft) tot 10.000 m (9843Ft) Omgeving Installeer het apparaat niet naast warmtebronnen zoals radiatoren of luchtkanalen, of op plaatsen met direct zonlicht, overvloedig stof of vocht.
Page 42
Veiligheidsrichtlijnen ("single fault condition") garanderen de gebruiker dat de apparatuur veilig is zelfs wanneer de normale werking is verstoord. R5906169NL-00 ImagePRO–4K...
Cópias impressas do Guia de segurança e do Guia de início rápido estão incluídas na caixa do ImagePRO–4K no momento da compra. Consulte os outros documentos on-line. Verifique sempre a versão mais recente do manual no seguinte endereço. Clique na página de produto do ImagePRO–4K e vá para a guia “Downloads”. www.barco.com/en/Products-Solutions/Image-processing/Presentation-switchers R5906169PTBR-00 ImagePRO–4K...
Page 46
Diretrizes de segurança R5906169PTBR-00 ImagePRO–4K...
Diretrizes de segurança 1.1 Considerações gerais Instruções gerais de segurança • Antes de colocar o equipamento em funcionamento, leia o manual do usuário do ImagePRO–4K na sua totalidade e conserve-o para referência futura. • Todos os avisos existentes neste manual devem ser cumpridos. •...
Page 48
Diretrizes de segurança • Não retire a tampa superior durante o funcionamento normal. A remoção da tampa superior expõe tensões perigosas. Para evitar danos pessoais, não remova a tampa superior. Não coloque a unidade em funcionamento sem a tampa instalada. •...
Page 49
Diretrizes de segurança Operação Desligado Ambiente Umidade 5% a 85% UR não condensada 0% a 95% HR não condensada Altitude -60 (-197 pés) a 3000 m (9843 pés) -60 (-197 pés) a 10.000 m (32810 pés) Ambiente Não instale o dispositivo em um local próximo a fontes de calor, como radiadores ou dutos de ar, ou em lugares expostos à...
Page 50
Diretrizes de segurança simulado de condição de falha única garante a segurança do equipamento para o usuário mesmo quando a utilização normal do equipamento falha. R5906169PTBR-00 ImagePRO–4K...
Page 51
Diretrizes de segurança R5906169PTBR-00 ImagePRO–4K...
Page 52
R5906169PTBR-00 | 12/07/2018 Barco Inc, Image Processing | 3078 Prospect Park Drive, Rancho Cordova, CA , 95670, USA Registered address: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
Указания по технике безопасности Информация об этой главе Внимательно прочитайте эту главу: в ней содержится важная информация о том, как избежать травм при пользовании видеопроцессором ImagePRO– 4K. Она также включает предостережения для предотвращения повреждений видеопроцессора ImagePRO–4K. Убедитесь в понимании приведенных в...
Page 54
Указания по технике безопасности Обязательно проверяйте наличие новейшей версии руководства по указанному ниже адресу. Щелкните страницу ImagePRO–4K и откройте вкладку “Загрузки”. www.barco.com/en/Products-Solutions/Image-processing/Presentation-switchers R5906169RU-00 ImagePRO–4K...
Указания по технике безопасности 1.1 Общие положения Общие правила техники безопасности • Внимательно прочитайте руководство пользователя ImagePRO–4K перед началом эксплуатации и сохраните его для использования в будущем. • Необходимо учитывать все предупреждения, приведенные в этом руководстве. • В точности соблюдайте все инструкции по эксплуатации оборудования. •...
Page 56
Указания по технике безопасности • Все работы по обслуживанию должен выполнять квалифицированный обслуживающий персонал. Обслуживание выполняется при любом повреждении системы, например, если в систему попала жидкость или посторонние предметы, система подверглась воздействию дождя или влаги, упала или работает ненадлежащим образом. •...
Page 57
Указания по технике безопасности Окружающая среда Эксплуатация Хранение Температура от 0°C (32°F) до 40°C (104°F) от -10°C (14°F) до 60°C (140°F) окружающей среды Чистота воздуха Чистая офисная среда (соответствующая н.д. такому стандарту чистых помещений, как ISO 14644-1 класса ISO 9) Влажность...
Page 58
Указания по технике безопасности 1.5 Международные стандарты безопасности Обзор стандартов Настоящее оборудование разработано в соответствии с требованиями международных стандартов безопасности IEC60950-1, IEC62368-1, EN60950-1, UL60950-1 и CAN/CSA C22.2 No.60950-1, которые относятся к ИТ-оборудованию, в том числе к электрическому производственному оборудованию. Этими стандартами...
Page 59
Указания по технике безопасности R5906169RU-00 ImagePRO–4K...
Page 60
R5906169RU-00 | 12/07/2018 Barco Inc, Image Processing | 3078 Prospect Park Drive, Rancho Cordova, CA , 95670, USA Registered address: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
Page 61
Ett tryckt exemplar av säkerhetsguiden och snabbstartguiden ingår i lådan med ImagePRO–4K vid inköpstillfället. Se online om det finns andra dokument. Sök alltid efter den senaste versionen av manualen på följande adress. Klicka på produktsidan för ImagePRO–4K och gå till fliken ”Downloads” (Hämtningar). www.barco.com/en/Products-Solutions/Image-processing/Presentation-switchers R5906169SV-00 ImagePRO–4K...
Säkerhetsriktlinjer 1.1 Allmänna råd Allmänna säkerhetsanvisningar • Innan du använder denna utrustning bör du läsa användarhandboken för ImagePRO–4K noggrant och även vända dig till den vid framtida behov. • Alla varningar i denna dokumentmanual ska åtlydas. • Alla instruktioner om hur utrustningen används måste följas noggrant. •...
Page 64
Säkerhetsriktlinjer • Vid underhåll ska strömmen till enheten alltid stängas av och kontakterna dras ut före avlägsnande av ett av skydden, om inget annat anges. • Bär alltid en jordad armbandsrem vid hantering av delar som kan utsättas för elektrostatisk skada. •...
Page 65
Säkerhetsriktlinjer 1.4 Kontakttyper Nätkabel med NEMA 5/15-kontakt upp till 13 A Färgerna på ledningarna i nätkabeln är i enlighet med följande kod: Grön eller gul + grön: jord Blå eller vit: neutral Brun eller svart: linje (live) Nätkabel med GB 2099-kontakt upp till 10 A Färgerna på...
Page 66
R5906169SV-00 | 12/07/2018 Barco Inc, Image Processing | 3078 Prospect Park Drive, Rancho Cordova, CA , 95670, USA Registered address: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
Page 72
R5906169JA-00 | 12/07/2018 Barco Inc, Image Processing | 3078 Prospect Park Drive, Rancho Cordova, CA , 95670, USA Registered address: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
Page 73
ImagePRO–4K 제품과 접촉하는 모 든 사람 안전 가이드 및 퀵 스타트 가이드의 인쇄본은 구매 시 ImagePRO–4K 박스에 포함되어 있습니다. 기 타 문서는 온라인으로 확인하십시오. 다음 주소에서 설명서 최신 버전을 반드시 확인하십시오. ImagePRO–4K 제품 페이지를 클릭하고 "다운로드" 탭으로 이동하십시오. www.barco.com/en/Products-Solutions/Image-processing/Presentation-switchers R5906169KO-00 ImagePRO–4K...
Page 74
안전 지침 1.1 일반 고려 사항 일반 안전 지침 • 이 장치를 작동하기 전에 ImagePRO–4K 사용 설명서를 자세히 읽은 다음 나중에 참조할 수 있도록 잘 보관 하십시오. • 이 문서화 설명서에 있는 모든 경고 사항을 준수해야 합니다. • 본 장치의 모든 작동 및 사용 지침을 정확히 따라야 합니다. •...
Page 75
안전 지침 • 설치 및 정비 작업을 수행할 때 누전이 발생하지 않도록 절연 장갑을 착용하십시오. • 이 절차를 수행할 때 ImagePRO–4K 비디오 프로세서 어셈블리에 어떤 것도 떨어지지 않도록 주의해야 합 니다. 도구나 예비 부품이 장치에 떨어지면 시스템을 재시작할 때 재앙적 사고가 벌어질 수 있습니다. •...
Page 76
안전 지침 GB 2099(최대 10A) 플러그가 있는 전원 코드 주 도입선의 색상은 다음 코드에 따라 지정됩니다. 녹색 + 노란색: 접지 파란색: 중립 갈색: 라인(활성) CEE 7 플러그(최대 10A)가 있는 AC 전원 코드(주 도입선) 주 도입선의 색상은 다음 코드에 따라 지정됩니다. 녹색...
Page 80
安全准则 1.1 一般注意事项 一般安全说明 • 运行设备之前,请通读 ImagePRO–4K 用户指南并保留以备日后使用。 • 必须遵守文档手册中的所有警告。 • 必须严格遵守所有操作和使用本设备的说明。 • 应遵守所有本地安装条例。 有关电池的注意事项 注意:更换类型不正确的电池有爆炸的风险。根据废弃物说明处置用过的电池。 ATTENTION : Risque d'explosion en cas d'usage d'une batterie non prévue pour cet appareil. Jetez les batteries usagées suivant les règles de recyclage prévues. 警告:...
Page 86
安全指南 1.1 一般注意事項 一般安全說明 • 操作本設備之前,請先詳細閱讀 ImagePRO–4K 使用者指南,並妥善保存以供未來參考使用。 • 務必確實遵循本文件手冊中的所有警告。 • 務必確實遵循本設備的所有操作及使用說明。 • 應確實遵循所有當地安裝法令規範。 電池注意事項 注意:若未更換正確的電池類型,可能會有爆炸風險。請依照廢棄物相關說明規定丟棄使用過的電池。 ATTENTION : Risque d'explosion en cas d'usage d'une batterie non prévue pour cet appareil. Jetez les batteries usagées suivant les règles de recyclage prévues. 警告:...
