Dynojet Power Commander V Installation Instructions Manual page 7

FIG.M
FIG.N
FIG.O
18-003 www.powercommander.com

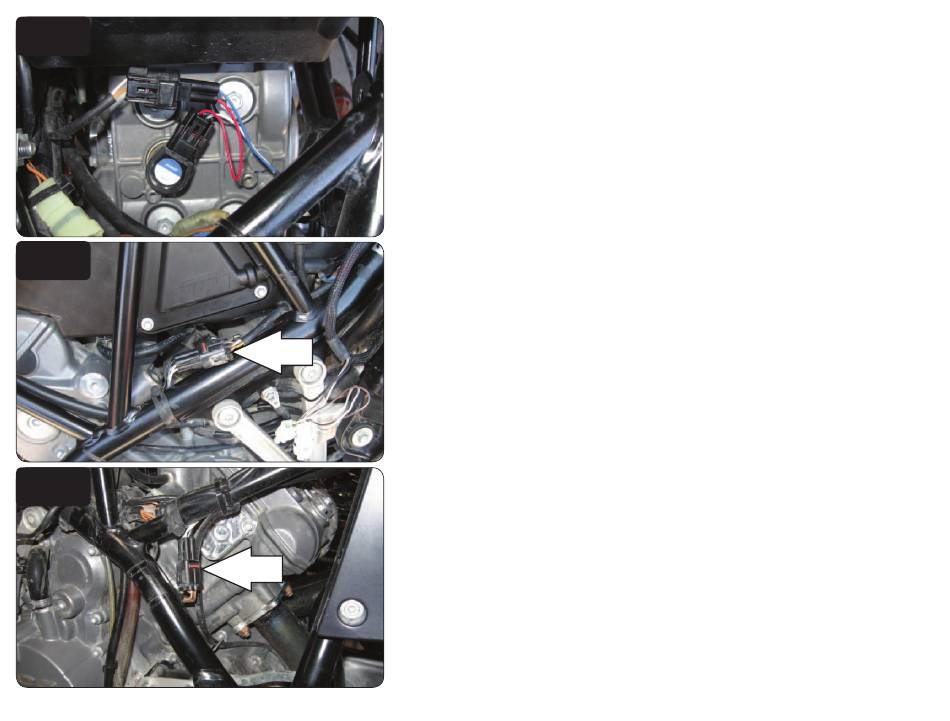

16 Plug the BLUE wires from the PCV in-line of the rear coil stick and stock wiring
harness (Fig. M).
17 Locate the front cylinder O2 sensor connection.
This connection is on the right side of the frame above the ground location from
step 12. It is a BLACK 4 pin connector.
18 Unplug this connection and plug one of the Dynojet O2 Optimizers into the
stock wiring harness (Fig. N).
The stock O2 sensor will no longer be connected to anything.
19 Locate the rear cylinder O2 sensor connection.
This connection is on the lef side of the frame. It is a BLACK 4 pin connector.
20 Unplug this connection and plug one of the Dynojet O2 Optimizers into the
stock wiring harness (Fig. O).
The stock O2 sensor will no longer be connected to anything.
21 Reinstall bodywork.
KTM Adventurer PCV - 7
