Dynojet Power Commander V Installation Instructions Manual page 4

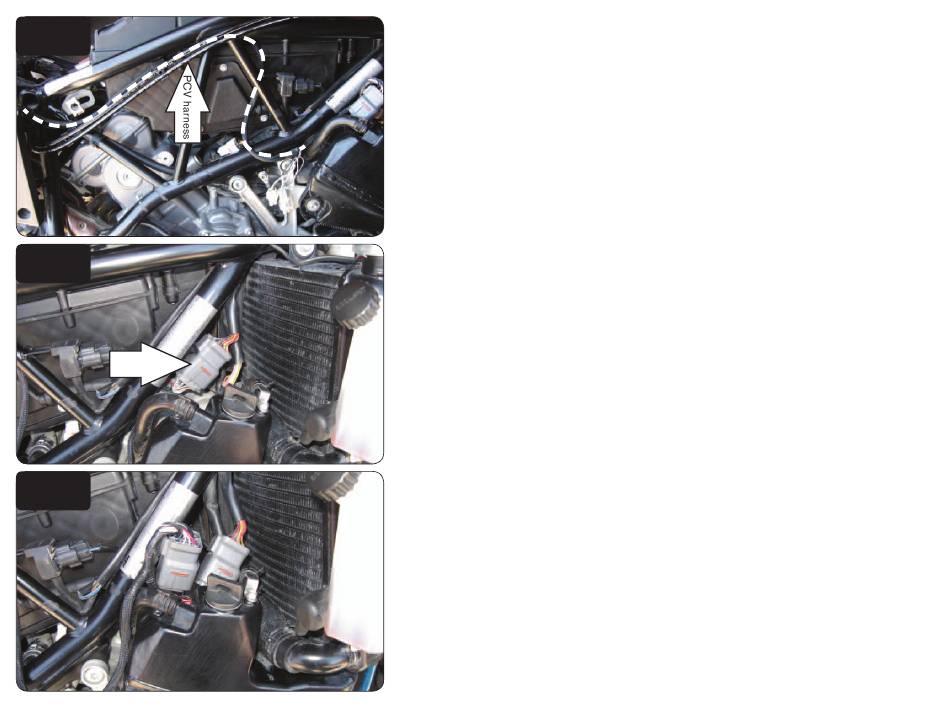

FIG.D
FIG.E
FIG.F
18-003 www.powercommander.com
7 Route the PCV harness inside of the frame rails and go towards the front of the
engine (Fig. D).
8 Unplug the stock throttle body sub-connector (Fig. E).
This is a GREY 16 pin connector on the right side of the frame.
9 Plug the PCV main connectors in-line of the stock wiring harness (Fig. F).
KTM Adventurer PCV - 4
