Dynojet Power Commander V Installation Instructions Manual page 3

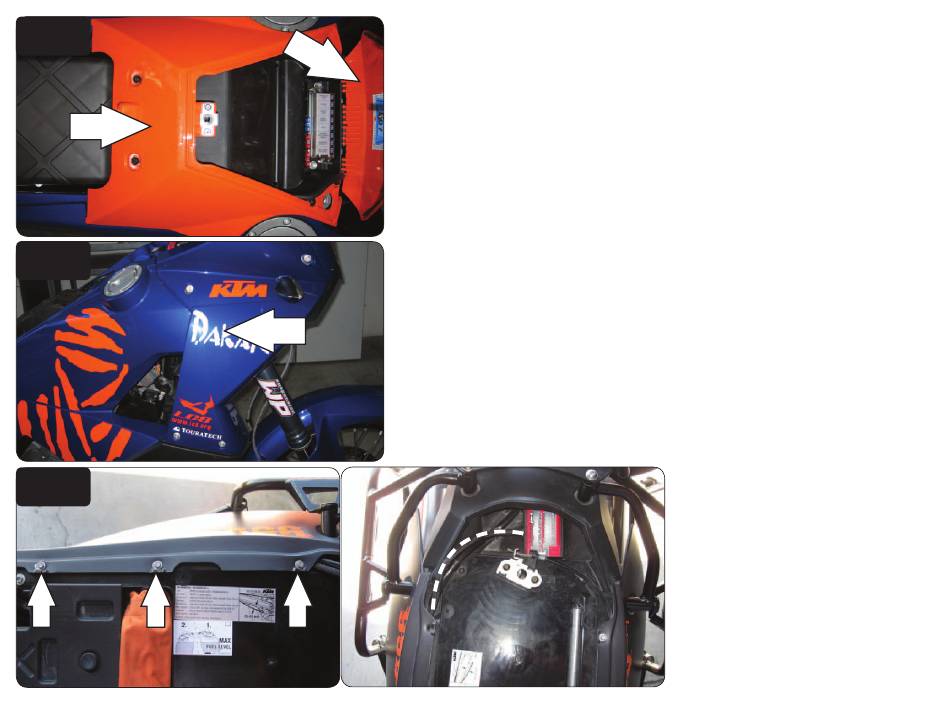

FIG.A
FIG.B
FIG.C
18-003 www.powercommander.com
1
2
3
Ground wire
Remove the main seat.
Remove the storage cover and storage shell (Fig. A)
Remove the right and left hand side panels and fuel tanks (Fig. B).
4 Remove the 3 bolts for the tail
section on the right hand side
(Fig. C).
5 Secure the PCV in tail section using
the supplied velcro.
6 Route the PCV harness under the tail
section and go towards the front of
the bike (Fig. C).
KTM Adventurer PCV - 3
