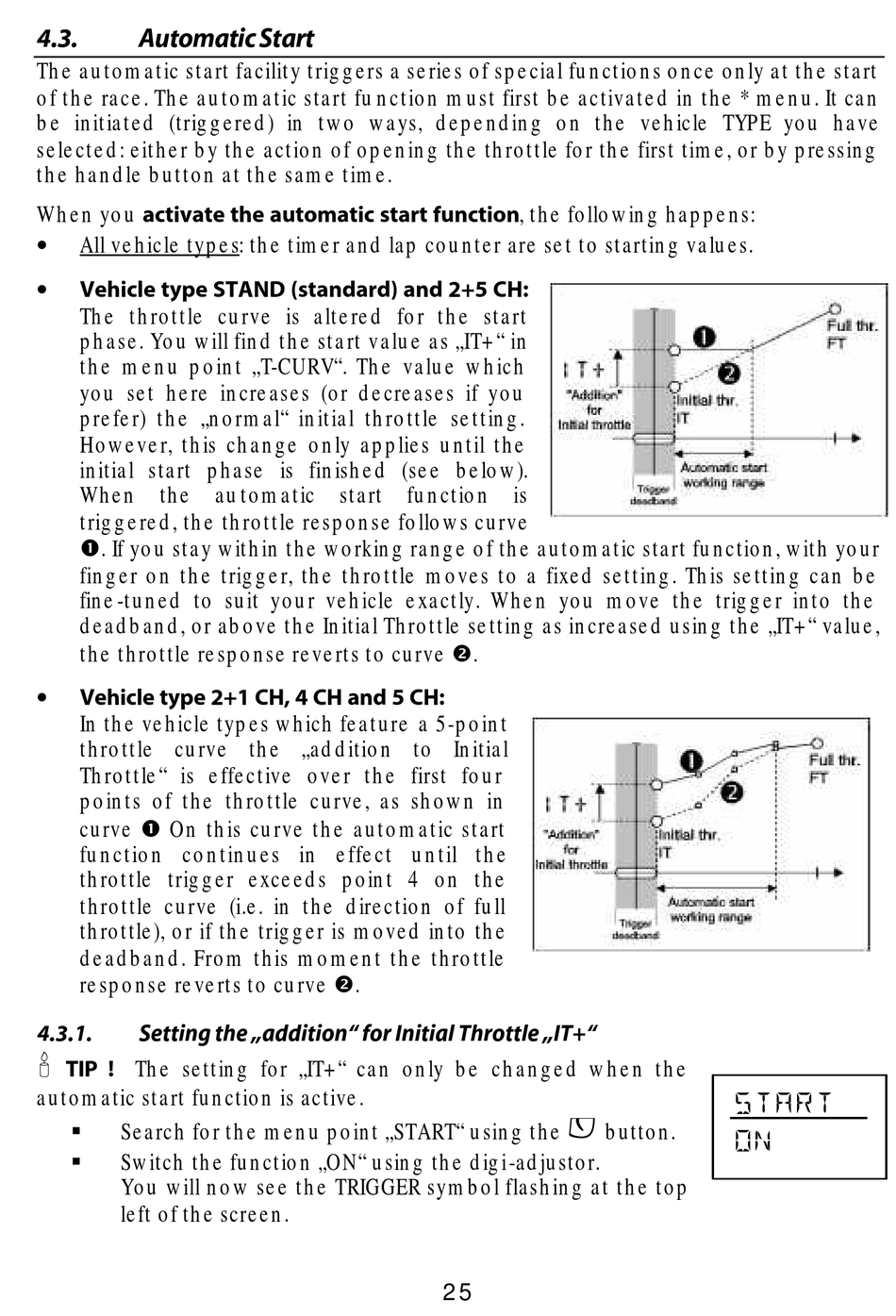

4.3.

Automatic Start

The automatic start facility triggers a series of special functions once only at the start
of the race. The automatic start function must first be activated in the * menu. It can
be initiated (triggered) in two ways, depending on the vehicle TYPE you have
selected: either by the action of opening the throttle for the first time, or by pressing
the handle button at the same time.
When you activate the automatic start function , the following happens:
•
All vehicle types: the timer and lap counter are set to starting values.
•
Vehicle type STAND (standard) and 2+5 CH:
The throttle curve is altered for the start
phase. You will find the start value as „IT+" in
the menu point „T-CURV". The value which
you set here increases (or decreases if you
prefer) the „normal" initial throttle setting.
However, this change only applies until the
initial start phase is finished (see below).
When the automatic start function is
triggered, the throttle response follows curve
Œ. If you stay within the working range of the automatic start function, with your
finger on the trigger, the throttle moves to a fixed setting. This setting can be
fine-tuned to suit your vehicle exactly. When you move the trigger into the
deadband, or above the Initial Throttle setting as increased using the „IT+" value,
the throttle response reverts to curve •.
•
Vehicle type 2+1 CH, 4 CH and 5 CH:
In the vehicle types which feature a 5-point
throttle curve the „addition to Initial
Throttle" is effective over the first four
points of the throttle curve, as shown in
curve ΠOn this curve the automatic start
function continues in effect until the
throttle trigger exceeds point 4 on the
throttle curve (i.e. in the direction of full
throttle), or if the trigger is moved into the
deadband. From this moment the throttle
response reverts to curve •.
4.3.1. Setting the „addition" for Initial Throttle „IT+"
'
TIP ! The setting for „IT+" can only be changed when the
automatic start function is active.
§
Search for the menu point „START" using the
§
Switch the function „ON" using the digi-adjustor.
You will now see the TRIGGER symbol flashing at the top
left of the screen.
A
button.
25
START
ON
