Network Topology
4.2

Using Long Fiber Optic Sections

The maximum permitted length of PCF FO cables with the OBT is 300 m. If longer
distances are required with fiber-optic cables, then other fiber-optic types such as
graded glass fibers or monomode fibers are necessary and these can be used in a
combination of OBT with OLM (Optical Link Module). The OBT is then connected
electrically to the OLM (for example OBT/CH 1 to OLM/CH 1) and the OLM is
attached to the long fiber-optic section. At the other end of the fiber-optic section,
the arrangement is reversed by another OLM/OBT pair.
PC
PG
OP
À
1)
OBT
À
2)
À Terminating resistor activted
1) PROFIBUS cable (terminated at both ends)
2) Plastic FO cable or PCF FO cable with two fibers
3) FO cable for long distances

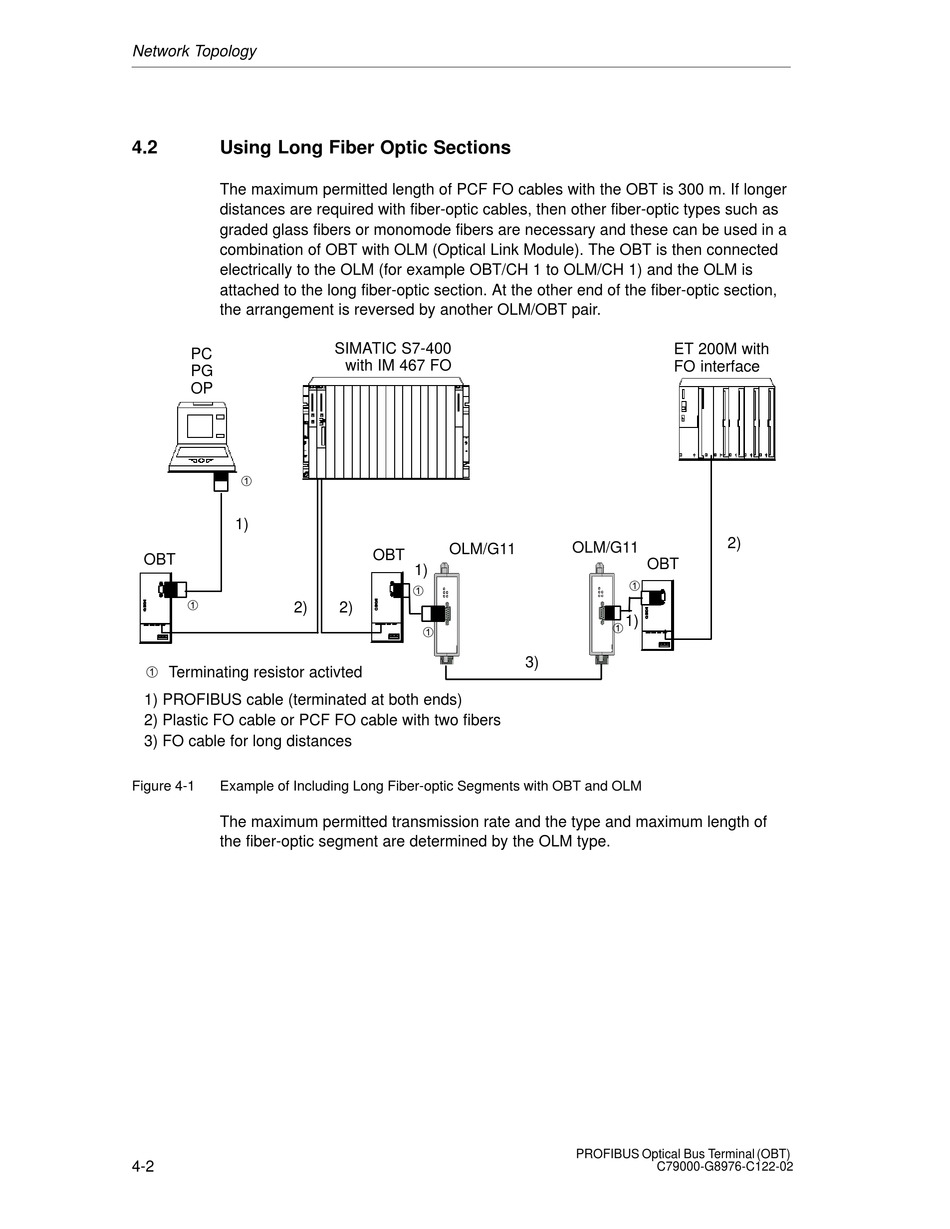

Figure 4-1 Example of Including Long Fiber-optic Segments with OBT and OLM
The maximum permitted transmission rate and the type and maximum length of
the fiber-optic segment are determined by the OLM type.
4-2
SIMATIC S7-400
with IM 467 FO
OLM/G11
OBT
1)
À
2)
À
ET 200M with
FO interface
OLM/G11
OBT
À
1)
À
3)
PROFIBUS Optical Bus Terminal (OBT)
C79000-G8976-C122-02
2)
