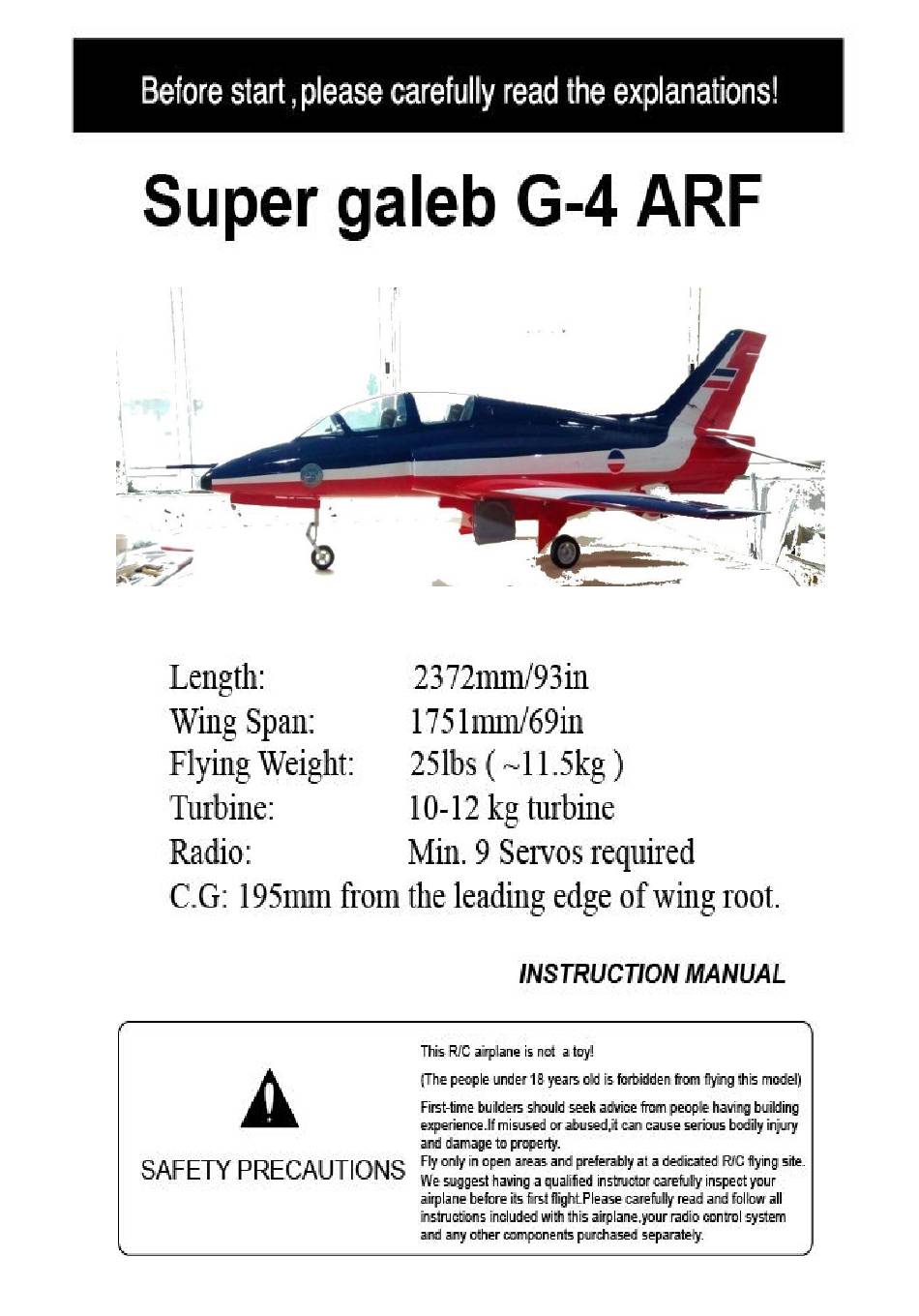

Top RC Model Super galeb G-4 ARF Instruction Manual

Advertisement

Quick Links

第 1 页

Advertisement

loading
Need help?

Need help?

Do you have a question about the Super galeb G-4 ARF and is the answer not in the manual?

Questions and answers

Summary of Contents for Top RC Model Super galeb G-4 ARF

  • Page 1 第 1 页...
  • Page 2 第 2 页...
  • Page 3 第 3 页...
  • Page 4 3. Fix the fiber horns to the slots in the aileron with epoxy Accessory list for the installation of aileron. glue. 4. Fix the fiber horns to the slots in the aileron with 1. Sanding the fiber horns. epoxy glue. 2.
  • Page 5 6. Assemble the fiber horns to the slots in the flap with epoxy glue. 9. Servo assembled ready for aileron. 7. Assemble the servos to the servo trays. 10. Servo assembled ready for aileron. 8. Assemble the servos to the servo trays. 11.
  • Page 6 15. The sketch map when the horns in the wings 12. Assemble the linkage to the servo. assembled finished. 13. Apply glue to the slots of flaps and epoxy the horn to them. 16. Apply instant type AB glue to the horns covers. 17.
  • Page 7 Accessory list for the installation of rudder. 20. Assemble the horns to the slots in the rudder. 18. Apply instand type AB glue to the slots in the rudder, vertical fin. 21. Assemble the servo to the vertical fin. 19. Assemble the rudder to the vertical fin and make sure it can move freely.
  • Page 8 23. Measure the deepth from the servo to the vertical fin 26. Connect the fiber horns to the servo arms with the root. linkage and locked each side with screws. 24. Measure the same length on the surface of the vertical and mark it out as picture.
  • Page 9 28. Assemble the servo. Accessory list for the installation of wheel doors. 29. Install the servo to the appropriate position in the fuselage. 31. Epoxy the pinned hinges to the wheel doors carefully. 30. Connect the belly speed brake to servo arms with the 32.
  • Page 10 33. Drill holes to appropriate position in the fuselage and 36. Add some glue to the pinned hinges to make sure lock the wheel doors with screws. them don't come off during flying. 34. Drill holes to appropriate position in the wheel doors 37.
  • Page 11 39. Connect the linkage to the fiber horn with screws and locknuts. Accessory list for the installation of belly speed brake. 40. Connect the linkage to the fiber horn with screws and locknuts. 42. Ready for assembly the stabilizers. 41. Connect the linkage to the servos for wheel doors. 43.
  • Page 12 44. Connect the pushrod to the arm on the stabilizer joiner. 47. Lock the vertical fin with screw. 45. Connect the pushrod to the servo. 48. The picture after the vertical fin assembled. 46. Apply AB glue to the hole in the vertical and assemble the vertical tube to it.
  • Page 13 Accessory list for the installation of the retracts. 52. Fix the nose retract to the fuselage with screws. 50. Assemble the servo to the retracts and connect the 53. Connect the hatch hinge to the clevis on the Alu sash linkages.
  • Page 14 55. Assemble the wheel cover to the main retracts. 58. Lock the wing with schrews. 56. The picture when the retracts up. Accessory list for the installation of bomb. 57. Lock the wing with schrews. 59. Fix the bomb with screws. 第...
  • Page 15 60. Glue the fairing cover to the G4 nose. 62. Assemble the turbine engine to the fuselage. 61. Assemble the antenna to the fuselage. 63. Assemble the fuel tank to the fuselage. Accessory list for the installation of the fuel tank and tail pipe.
  • Page 16 65. Assemble the canopy to the fuselage. 66. The photo when the model assemble completely. 第 16 页...
  • Page 17 67. Adjust the travel of each control surface to the values 68. Adjust the travel of each control surface to the values in the diagrams. These values fit general flight in the diagrams. These values fit general flight capabilities.Readjust according to your needs and flight capabilities.Readjust according to your needs and flight level.
