Summary of Contents for Top RC Model Sport Jet Odyssey

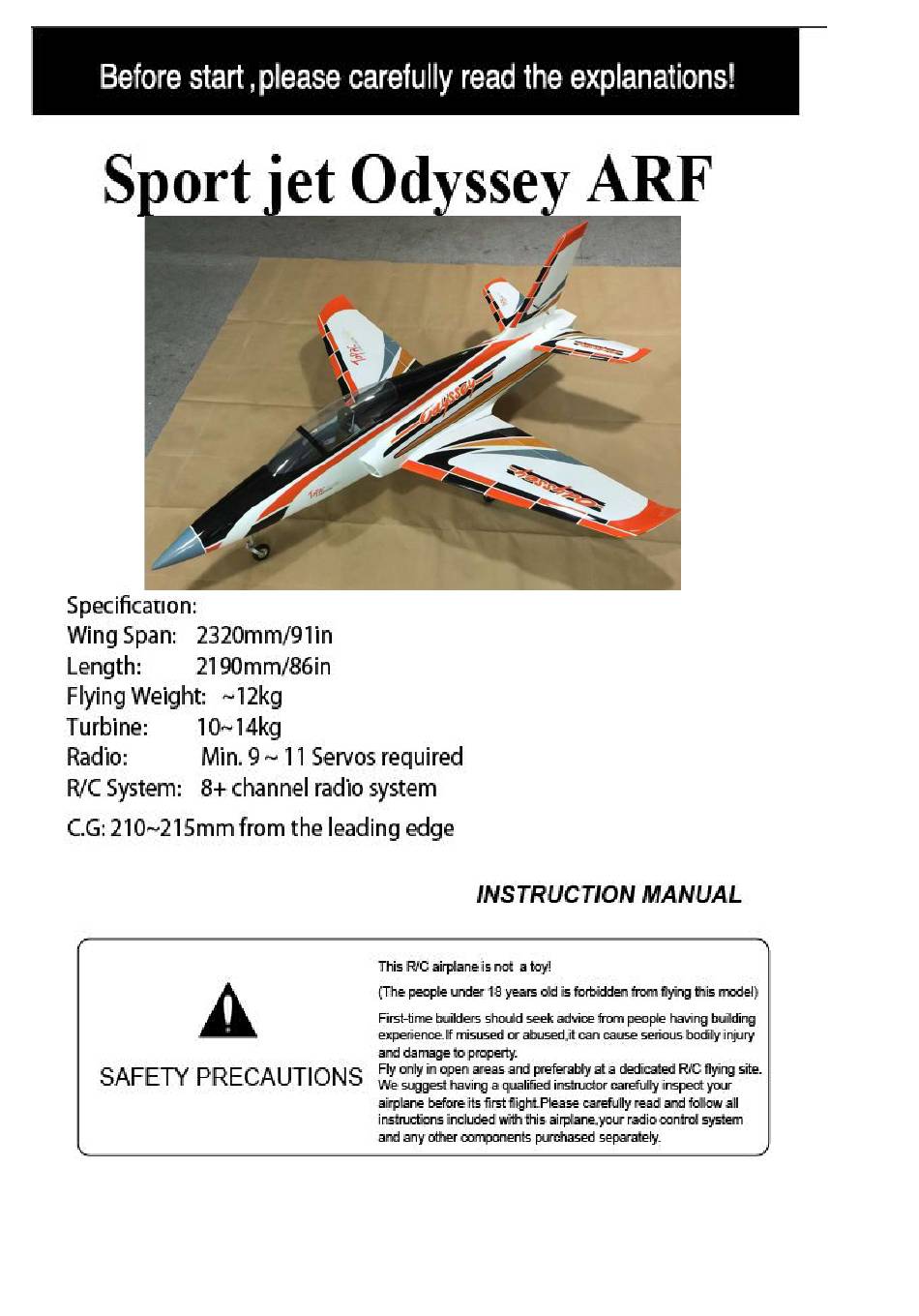

- Page 1 第 1 页...
- Page 2 第 2 页...
- Page 3 第 3 页...
- Page 4 Accessory list for the coming installation steps. 3. Fix the servo trays to the wings with screws. 1. Apply AB glue to the slots in the ailerons, flaps and 4. The sketch map of the outgoing lines for servos and assemble the horns into them.
- Page 5 6. Connect the horn to the servo arm with screw. 9. Assemble the wheel cover to the landing gear. 7. Prepare the main retracts to be assembled to the wing. Accessory list for the coming installation steps. 10.Assemble the servo to the stabilizer through the slots 8.
- Page 6 11.Apply instand type AB glue to the slots in the stab and put the horns in it.Use tape around the slots during assemble the horns to keep clean. Accessory list for the coming installation steps. 14.Apply instand type AB glue to the slots in the rudder, 12.Use a sharp knife to open a slot to let the servo arm come out.
- Page 7 16.The sketch map of how the servo arms connect to the horns. 19.Assemble the servo to the vertical fin with screws. 20.Connect the fiber horns to the servo arms with the 17.Assemble the horns to the slots in the rudder. linkage and locked each side with screws.
- Page 8 Accessory list for the coming installation steps. 23.Assemble the steering linkages. 21.Fix the hatch hinge to the clevis on the Alu sash with screw. 24.Assemble the nose retract to the fuselage with screws. 22.Assemble the servo to the nose retract. 25.The picture when the nose gear assembley completely.
- Page 9 26.Ready for put the fuel tanks in the fuselage. 29.Fix the tail pipe to the fuselage with screws. 27.Put the fuel tanks in the fuselage. 30.Assemble the Turbine and tail pipe. 28.Put the tail pipe to the fuselage. 31.Fix the tail pipe to fuselage with screws. 第...
- Page 10 32.Fix the two fuselage section together with screws. Accessory list for the coming installation steps. 33.The sketch map of the connection for the fuel tanks. 35.Put the alu wing bolt into the fuselage. 36.Assemble the wing to the fuselage through the wing 34.Fix the interior cockpit into the fuselage.
- Page 11 37.Fix the wing to fuselage with screws from the bottom of the wing. 40.Put the fin bolt into the vertical fin. 38.Fix the wing with screws from the bottom of the wing. 41.Put the vertical fin to the fuselage. 39.Glue the fin bolt. 42.Fix the vertical fin with screws.
- Page 12 43. Put the stab into the fuselage through stab tubes. 44.Fix the stab to fuselage with screws. 55.The photo when the model assemble completely. 第 12 页...
- Page 13 56. Adjust the travel of each control surface to the values in 57. Adjust the travel of each control surface to the values the diagrams. These values fit general flight in the diagrams. These values fit general flight capabilities.Readjust according to your needs and flight capabilities.Readjust according to your needs and flight level.
- Page 14 第 14 页...
