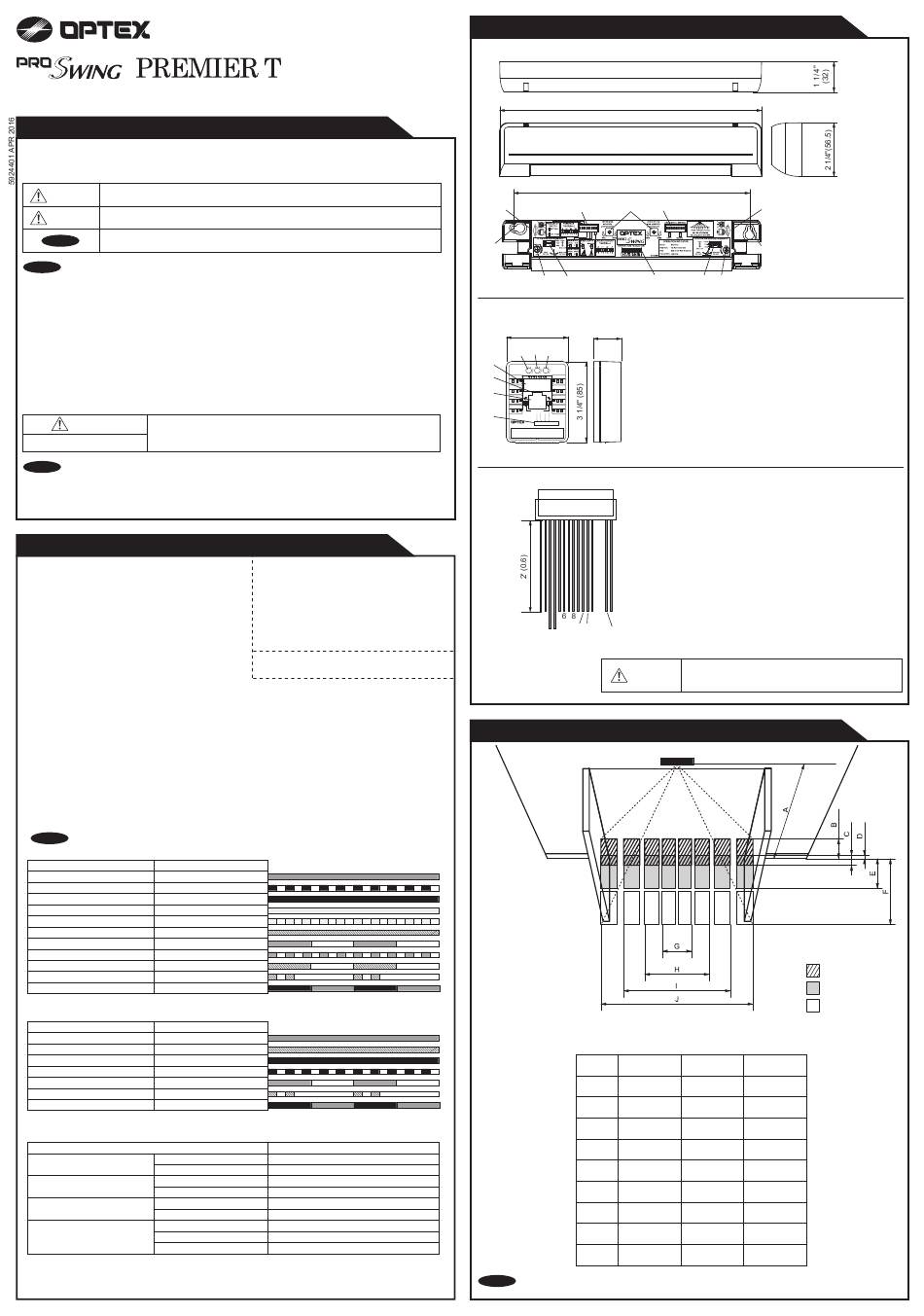

Optex Pro Swing PREMIER T Specification Manual

MANUFACTURER'S STATEMENT
Read this manual carefully before use to ensure proper operation of this product.
Failure to read this manual may cause improper operation and may result in serious injury or death of a person.
The meanings of the symbols are as follows. Please study the following first and then read the contents of this manual.
Disregard of warning may cause improper operation causing death or serious injury of
WARNING
a person.
Disregard of caution may cause improper operation causing injury of a person or damage to
CAUTION
objects.
NOTE Special attention is required to the section of this symbol.
NOTE
1. PREMIER T version Sensor Heads (OA-613 T) & Controller (OC-913C T) are not compatible with
old PREMIER version Sensor Heads (OA-603, OA-613) and controller (OC-903C, OC-913C).
Do not intermix Old & New versions.
2. This sensor is a non-contact switch intended header mount or wall mount for use on automatic swing doors.
Do not use for any other application.
3. When setting the sensor's detection area, make sure that there is no traffic around the installation site.
4. Before turning the power ON, check the wiring to prevent damage or malfunction of equipment connected to
the sensor.
5. Only use the sensor as specified in the operation manual provided.
6. Be sure to install and adjust the sensor in accordance with the local laws and standards of the country in
which the sensor is installed.
7. Before leaving the installation site, make sure that the sensor is operating properly and instruct the building
owner/operator on proper operation of the door and the sensor.
8. The sensor settings can only be changed by an installer or service engineer. When changed, the
changed settings and the date shall be registered in the maintenance logbook accompanying the door.
WARNING
Do not wash, disassemble, rebuild or repair the sensor, otherwise
it may cause electric shock or breakdown of the equipment.
Danger of electric shock
NOTE
The following conditions may not be suitable for sensor installation.
- Fog or exhaust emission around the door.
- Moving objects or objects that emit light near the detection area.
- Highly reflecting floor or highly reflecting objects around the door.
- Wet floor.
SPECIFICATIONS
Model (System name) : PREMIER T
Power supply : 12 to 24VAC ±10% (50 / 60Hz)
12 to 30VDC
SPECIFICATION
Power consumption : < 2.2W (< 4VA at AC)
at 1 OA-613 T & 1 OC-913C T
Output * : CMOS. Relay voltage / 5VDC
Test input : Opto coupler
Voltage 5 to 30VDC
Current 6mA Max. (30VDC)
Output hold time : 0.5sec. fixed (Activate output)
0.5sec. to 10sec.(Safety output)
Response time : < 0.3sec.
Operating temperature : -4 to 131°F (-20 to +55°C)
without dew condensation
Operating humidity : < 80%
Accessories : 1 Spec manual
1 Installation manual
2 Mounting screws
1 Mounting templates for OA-613 T
1 Communication cable 3'3" (1m)
1 Wiring cable 2' (0.6m)
1 Velcro tape
2 Wiring shells
NOTE The specifications herein are subject to change without prior notice due to improvements.
Operation indicator : OA-613 T
Status
Solid Green
Stand-by
1st row area detection Blinking Red
2nd or 3rd row area detection Solid Red
Waiting for next learning Solid Yellow
During learning Blinking Yellow
During opening or closing Solid Orange
Signal saturation Slow Green blinking
Sensor failure Fast Green blinking
Slow Orange blinking
Setting error
Twice Orange blinking
Communication error
Red & Green blinking
Mixed version error
Operation indicator : OC-913C T
Status
Solid Green
Door fully closed
Solid Orange
Door closing
Door fully opened Solid Red
Door opening Blinking Red
During learning Slow Green blinking
Twice Orange blinking
Communication error
Red & Green blinking
Mixed version error
Interface LED : OC-913C T
LED indication
Solid Green
Safety output
Solid Orange
Activate output
Solid Orange
Activate input
Solid Green
Motor input Solid Red
Specification manual

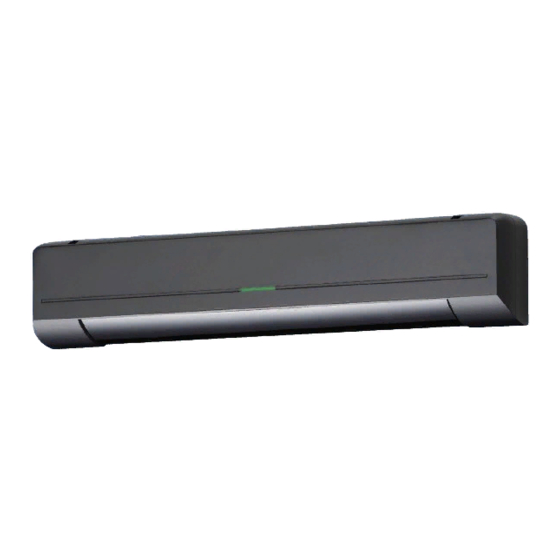

Model (Sensor head) : OA-613 T
Cover color : Black
Mounting height : 6'7" (2.0m) to 8'2" (2.5m)
Detection area : See DETECTION AREA
Detection method : Active infrared reflection **
Depth angle adjustment : 1st row area ±5°
2nd & 3rd row area ±5°
IP rate : IP44
Weight : 8.1oz (230g)
Model (Controller) : OC-913C T
Weight : 2.3oz (65g)
* : Two type of outputs (Activate , Safety)
** : All rows have the presence detection.
Color
Color
Operation
When not outputting
OFF When outputting
When outputting
OFF When not outputting
When receiving input
OFF When not receiving input
When not receiving Motor positive
When not receiving Motor negative
OFF When not receiving input
OUTER DIMENSIONS AND PART NAMES
Sensor head: OA-613 T
10 13/16"(275)
9 3/4"(248)
(1) (3)
(2)
(10)
(5) (6)
Controller: OC-913C T
2 9/16"(65)
1 1/8"(29.3)
(1) (2) (3)
(4)
Knowing Act timer(0 to 24sec.)
Safety output Lockout timer
hold time (0 to 24sec.)
(5) (0.5 to 10sec.)
Min Max Min Max Min Max
Safety relay
1 2 3 4 5 6 7 8 Data input
contact
1 5
N.O. N.C. OFF ON
Door
PWM
(6) open signal
2
6
Operation
Act Saf indicator OFF ON
Auto Lockout Test input
3 7
Auto Manual Enable Disable
Knowing Act
Test input
4 Directional plug 8
(7)
OFF ON High Low
Made in Japan
OC-913C T
: 12 to 24VAC ±10%
Power supply
12 to 30VDC
Power consumption : < 2.2W(< 4VA at AC)
at 1 OA-613 T & 1 OC-913C T [inch (mm)]
Wiring cable
16
1 2 5 7 9 12
1011
15
[inch (mm)]
3 4
CAUTION
DETECTION AREA
Chart shows figures if all angles are set at 0degree.
A
6'7"(2000)
B
1'2"(364)
C
7"(182)
D
1'(23)
E
2'2"(664)
F
4'7"(1391)
G
2'3"(682)
H
4'4"(1318)
I
6'9"(2045)
J
9'5"(2864)
NOTE
The actual detection area may become smaller depending on the ambient light, the color / material of the
object or the floor as well as the entry speed of the object.
(1) : Connector
(4) (1)
(2) : Sensitivity potentiometer
(3) : Mode setting switches
(4) : Area width setting switch
(5) : 1st row angle screw
(6) : 1st row area angle gauge
(10)
(7) : 2nd & 3rd area angle screw
(8) : 2nd & 3rd area angle gauge
(9) : Operation indicator
(9) (8) (7)
(10) : Mounting holes
(1) : Safety output hold timer
(2) : Knowing Act timer
(3) : Lockout timer
(4) : Dipswitches
(5) : Operation indicator
(6) : Connector
(7) : Interface LED
(Motor input, Activate input, Safety output,
Activate output)
1 : Power
2 : Power
3 : Motor voltage input positive (+)
4 : Motor voltage input negative (-)
5 : Activate input (+)
6 : Activate input (-)
7 : Safety(Stall) output
8 : Safety(Stall) output
9 : Activate output
10 : Activate output
11 : Test input (+)
12 : Test input (-)
13 : N/A
14 : N/A
15 : Data input (+)
16 : Data input (-)
When using Test input (dipswitch 7) is Enable, Signal lines of
Safety input should not be connected to the same port.
: 1st row area
: 2nd row area
: 3rd row area
[ft,inch (mm)]
7'3"(2200) 8'2"(2500)
1'4"(400) 1'6"(455)
8"(200) 9"(227)
1'(25) 1'(28)
2'5"(730) 2'9"(830)
5'9"(1739)
5'1"(1530)
2'6"(750) 2'10"(852)
4'9"(1450) 5'5"(1648)
7'5"(2250) 8'5"(2557)
10'4"(3150) 11'9"(3580)
[inch (mm)]
: Orange
: Brown
: Red
: Black
: White /Purple line
: Purple
: Blue
: Blue
: Yellow
: Yellow
: Grey / Pink
: Red / Blue
: White / Red line
: White
