Jet BDB-1340A Assembly Instructions page 2

Contents of Shipping Container
Middle Panel Carton
1 Panel
Right Panel Carton
1 Right Panel
1 Hardware Kit
1 Manual
Left Panel Carton
1 Left Panel
Tools Needed for Assembly:
Cross Point Screw Driver
10mm Open End Wrench
19mm Open End Wrench
26mm Open End Wrench
4mm Hex Wrench
Assembly Instructions
Note: number in "( )" parenthesis refers to the
index number in the parts breakdown and parts
list.

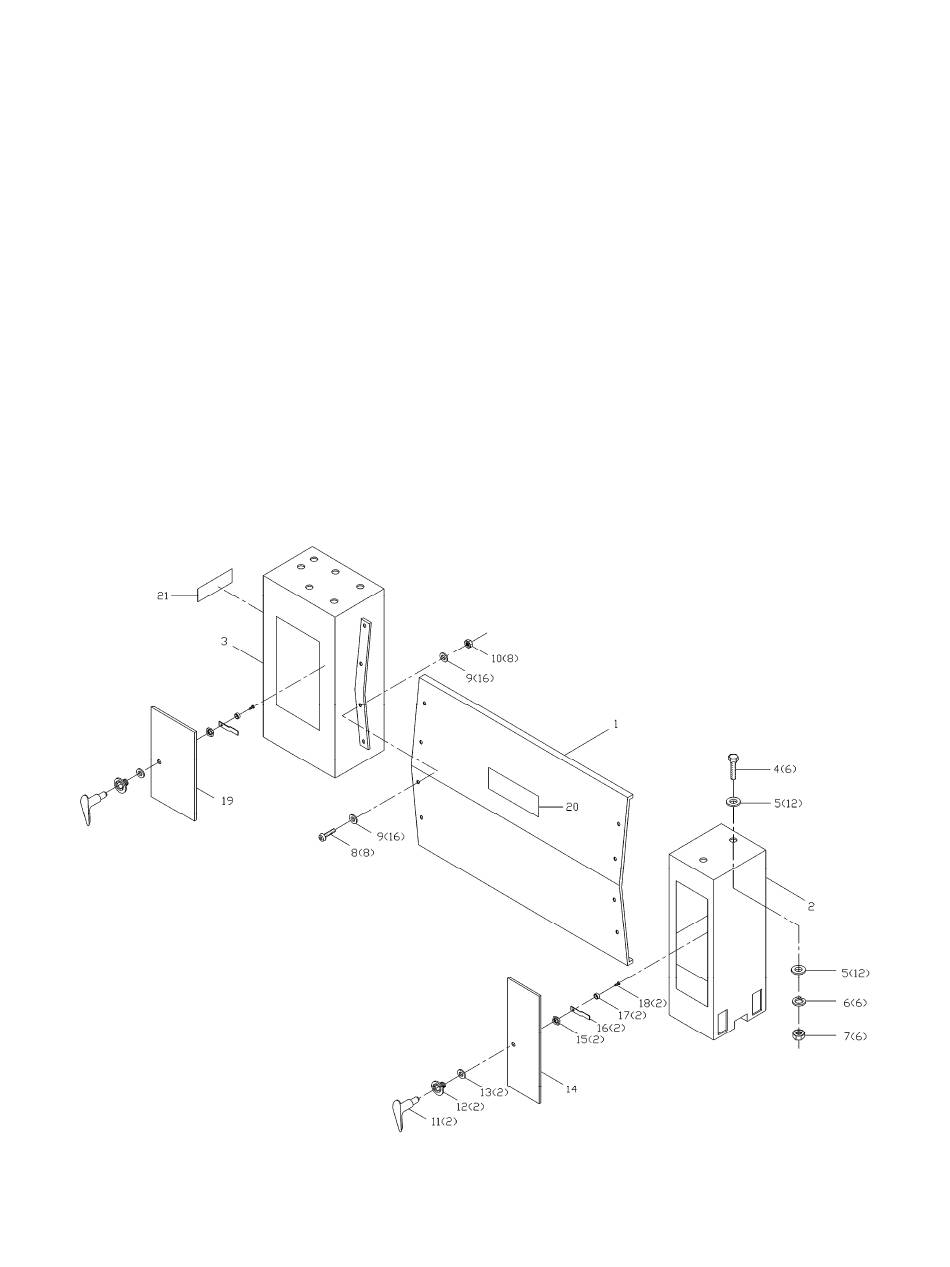

1. Take off Bolt (8), Spacer (17) and Nut (15)
by Door Latch Assembly.
2. Put Handle (11), Bolt (12), and Washer (13)
through hole of door.
3. Assemble Nut (15), Latch (16), Spacer (17),
and Bolt (18) onto back of door.
4. Assemble Center Panel (1) with Left Plinth
(3) and Right Plinth (2) with Screws (8),
Latch (16) and Nut (8).
5. Install lathe onto stand and tighten with Bolts
(4), Washers (5), Lock Washers (6) and
Nuts (7).
2
