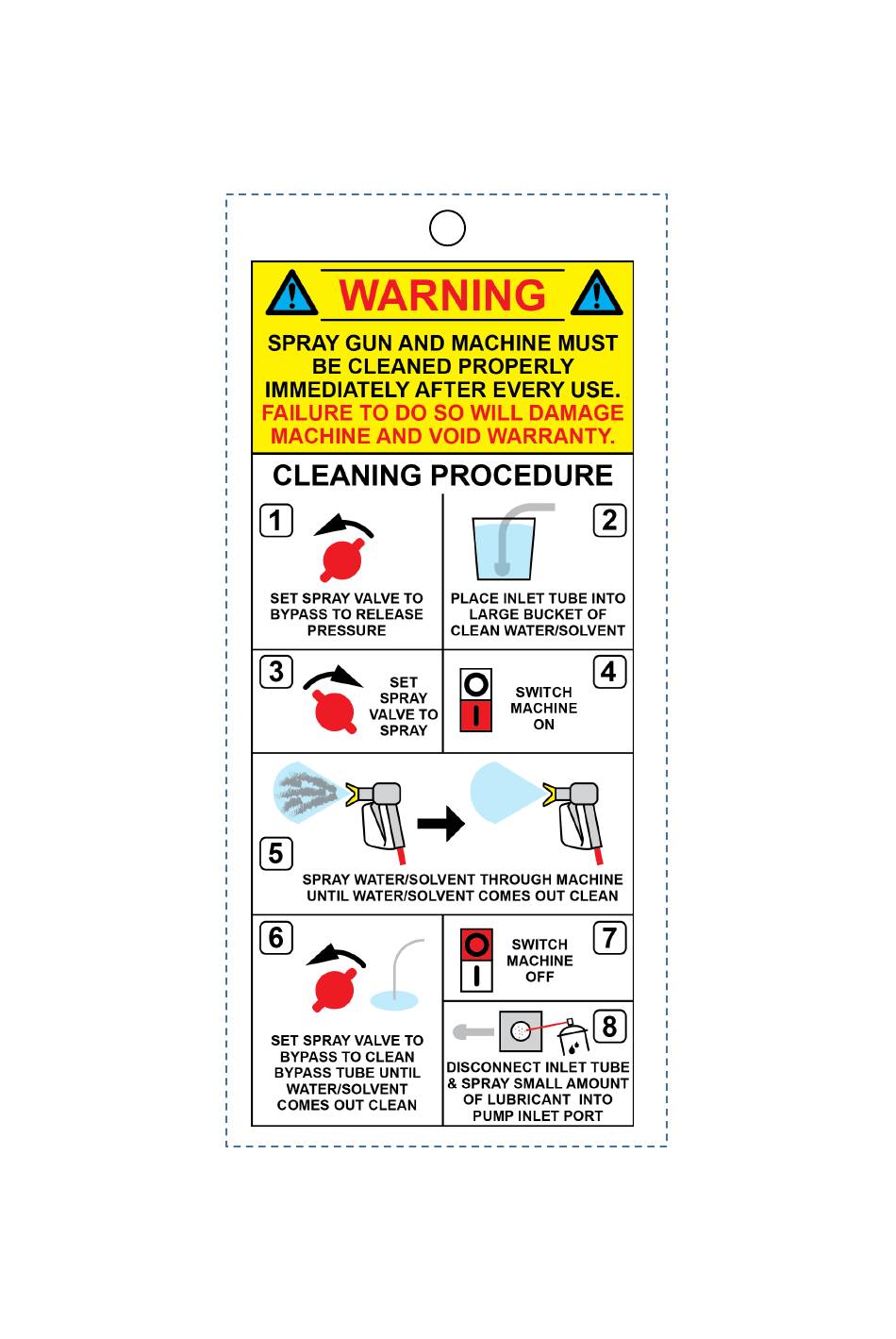

- Page 1 It is recommended to print this page, laminate it and attach it to the machine for easy reference...
- Page 2 UM-S1P Electric High-Pressure Airless Paint Station User Manual [Revision 3.0 July 2018] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
-
Page 3: Safety
UM-S1P Electric High-Pressure Airless Paint Station Safety Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:... - Page 4 UM-S1P Electric High-Pressure Airless Paint Station General Electrical Safety General Electrical Safety General Service Information • Inspect electrical equipment, extension • Electrically grounded equipment must • The equipment must be serviced or cords, power bars, and electrical fittings have an approved cord and plug and be repaired at authorised service centres by for damage or wear before each use.
-
Page 5: Safety Symbols
UM-S1P Electric High-Pressure Airless Paint Station Safety Symbols The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc, replace them. Flammable Material Hazard... - Page 6 UM-S1P Electric High-Pressure Airless Paint Station Carbon-Monoxide Hazard Pull Hazard Slope / Fall Injury Hazard "Slam Dunk" Warning Do not use the product in Be aware that the product Be aware that using the Do NOT attempt "slam dunk" confined areas or without...
-
Page 7: Equipment Safety
UM-S1P Electric High-Pressure Airless Paint Station Equipment Safety • It is highly recommendations to use the equipment with a residual current device (RCD) rated at 30mA or less. • Never spray flammable paints or solvents with a flash point below 21ºC. -
Page 8: Table Of Contents
UM-S1P Electric High-Pressure Airless Paint Station Table of Contents Safety ..............................2 Safety Symbols ............................4 Equipment Safety ..........................6 Parts Identification ..........................8 Machine Components ..........................9 Assembly ............................10 Operation ............................12 Priming ..............................12 Set-Up ..............................13 Spraying Procedure .......................... -
Page 9: Parts Identification
UM-S1P Electric High-Pressure Airless Paint Station Parts Identification Name Name Machine Body Tools / Fasteners / Accessories Frame Pressure Gauge 3-Way Adaptor High-Pressure Hose 2 x Gun Filter 4 x M6 Bolt / Washers / Spring Washers Inlet Hose (includes clamps and end filter) -
Page 10: Machine Components
UM-S1P Electric High-Pressure Airless Paint Station Machine Components Name Name Pressure Valve Spray Gun Trigger Spray Valve Mixing Nozzle Pressure Gauge Spray Tip Inlet Port Trigger Lock Return Port Handle (contains filter) Outlet Port High-Pressure Hose Connector ON / OFF Switch E&OE... -
Page 11: Assembly
UM-S1P Electric High-Pressure Airless Paint Station Assembly Lower the machine body into the frame, with the front Secure the machine to the frame with the four M6 of the machine toward the lower side of the frame. bolts, spring washers and washers. Firmly tighten the fasteners using the Allen key. - Page 12 UM-S1P Electric High-Pressure Airless Paint Station Push the inlet hose onto the inlet port, then secure it Push the return tube to the return port, then secure it using the hose clamp. using the spring clamp. E&OE ©2018 Unimac...
-
Page 13: Operation
UM-S1P Electric High-Pressure Airless Paint Station Operation Read, understand and follow all safety recommendations before using the equipment. • The quality of finish depends considerably on how well prepared the surface is for painting. Properly prepare the surface before painting. • You must remove any air from the unit before spraying. This operation is known as “priming”... -
Page 14: Set-Up
UM-S1P Electric High-Pressure Airless Paint Station Set-Up The machine automatically regulates pressure – when the set pressure is reached, the motor shuts off. When the pressure drops, the motor starts again until the correct pressure is reached and so on. -
Page 15: Spraying Procedure
UM-S1P Electric High-Pressure Airless Paint Station Spraying Procedure 2. Keep the spray gun approximately 30cm (12") Switch the machine on. Release the spray trigger from the surface to be sprayed. Maintain this lock. Rotate the spray tip to the “spray” setting (arrow distance. -
Page 16: Spraying Technique
UM-S1P Electric High-Pressure Airless Paint Station Spraying Technique 1. Move the spray gun with the entire arm, not by rotating the wrist. This will keep the spray gun perpendicular to the surface, helping keep the pattern and coverage even. 2. Keep the spray gun angle perpendicular to the surface, so spray distance is consistent. -
Page 17: Cleaning
UM-S1P Electric High-Pressure Airless Paint Station Cleaning Perform the pressure release procedure before starting the cleaning procedure. Follow the cleaning procedure carefully as a build-up of dried paint on the operating components can stop the unit from working. • Always use the appropriate cleaner for the paint in use (water for acrylics, mineral turpentine for enamels etc). -
Page 18: Spray Gun And High-Pressure Hose
UM-S1P Electric High-Pressure Airless Paint Station 7. Squeeze the trigger to cycle the cleaning liquid 8. Once complete, perform the pressure release through the system. Repeat steps 3 to 5 until the procedure. liquid running through the return hose is clear. -
Page 19: Pressure Release Procedure
UM-S1P Electric High-Pressure Airless Paint Station Pressure Release Procedure Perform the pressure release procedure when shutting the equipment down for any purpose, including cleaning or adjusting. 1. Turn the spray trigger safety lock on. 2. Rotate the pressure valve left (anti-clockwise) until fully out. -
Page 20: Troubleshooting
UM-S1P Electric High-Pressure Airless Paint Station Troubleshooting Problem Cause Remedy Little or no material flow Gun or inlet hose or filter Clean. blockage. Spray pressure too low. Increase pressure (pressure valve). Inlet hose loose, filter blocked Ensure hose is clean, undamaged, properly... - Page 21 ©2018 Unimac. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
