American Standard R910 Flash Installation Instructions

Flash
™
Deck Mount
Tub Systems

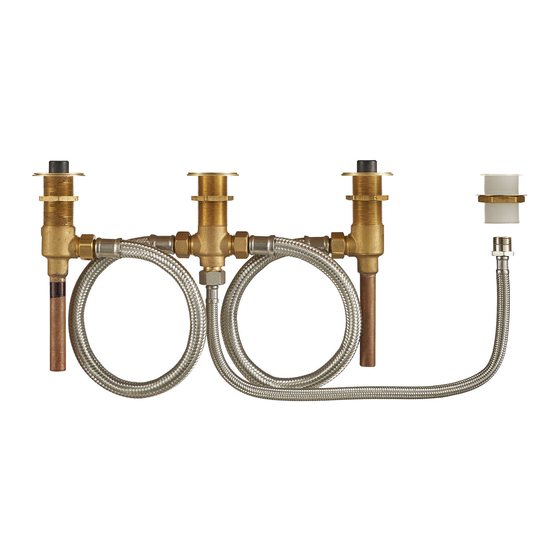

Rough Valve Kit
Thank you for selecting American-Standard...
the benchmark of fine quality for over 140 years.
To ensure that your installation proceeds smoothly-please read
these instructions carefully before you begin.
1

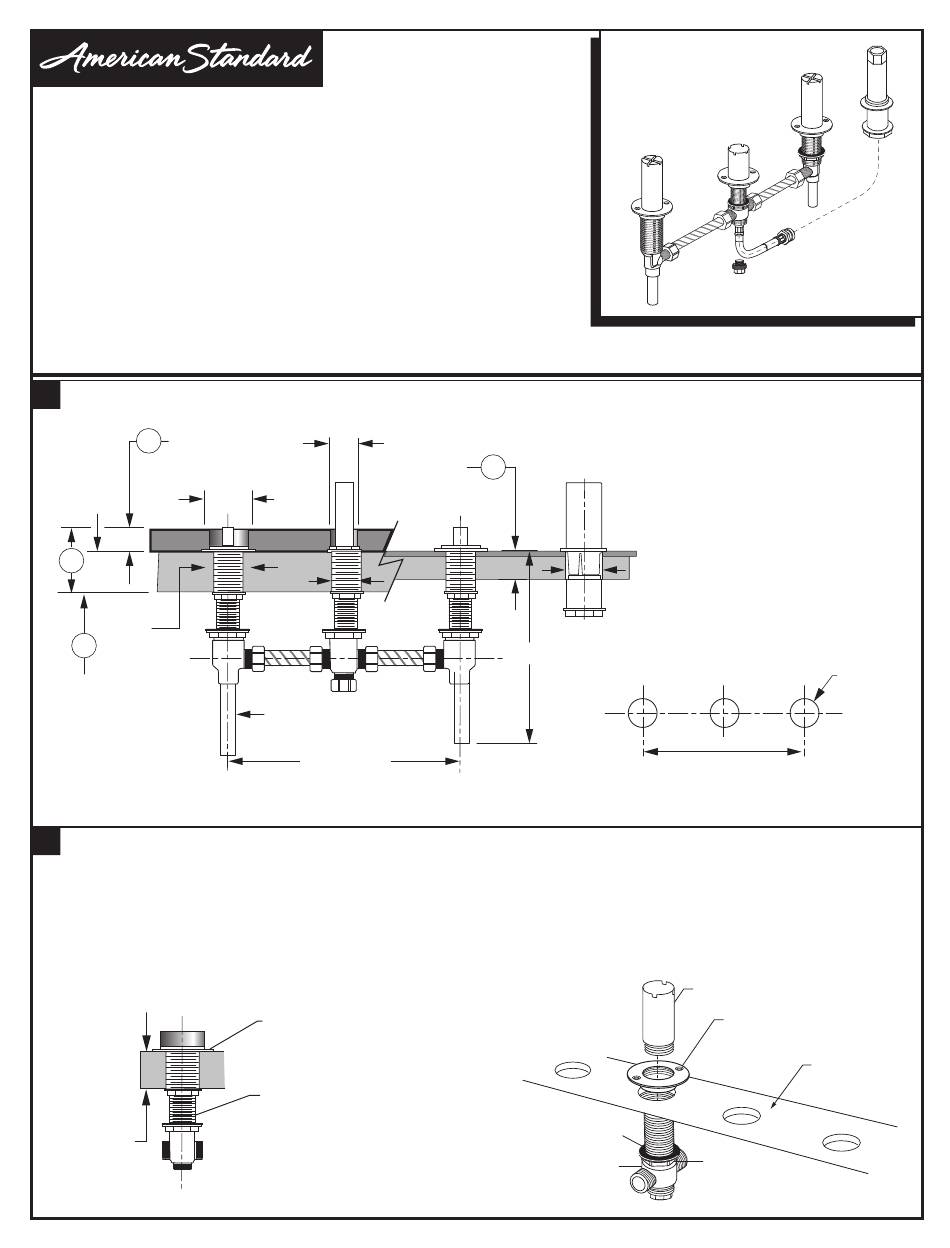

ROUGHING-IN

2
FINISHED
DECK
1-3/8" D
1
(2) 1-3/8" D
HOLES
3
FITTING
MOUNTING
SURFACE
2

MOUNT SPOUT SHANK

• Drill holes in mounting deck as shown on STEP 1. The maximum allowable deck thickness is 1-1/2".
• Unthread PLUG from SPOUT SHANK.
•
Insert the SPOUT SHANK through the mounting deck from below. Assemble the SPOUT SHANK LOCK RING so it
is flush with the top of the threads on the SHANK.
SPOUT SHANK MOUNTING NUT securely.
• Tighten
• Thread PLUG into SPOUT SHANK.
1-1/2" MAX.
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018
INSTALLATION
INSTRUCTIONS
1-3/8" D MAX.
MAX.
1-3/8" D
1/2" COPPER
INLET SUPPLIES
8" to 12" for Copper tubes
12" for Flex hoses
SPOUT SHANK LOCK RING FLUSH WITH
TOP OF THREADS ON SPOUT SHANK
SPOUT SHANK
R900
R910
4
ACRYLIC
BATH
MOUNTING
1-1/2" D
7-1/8"
FRICTION WASHER
SPOUT SHANK
- 1 -
Certified to comply with ANSI A112.18.1
U.S. Patent No. D403,750
1. DECK THICKNESS
TOTAL DECK THICKNESS
UP TO 2-1/2"
2. FINISHED DECK
FINISHED DECK VARIABILITY
ACCOMMODATES DECKING
MATERIAL (TILE, MARBLE,
CORIAN ...) TO 1" THICK
®
3. FITTING MOUNTING SURFACE
ADJUSTABILITY, TO 1-1/2" THICK
4. ACRYLIC BATHS
ADJUSTABILITY, TO 1-1/2" THICK
8" to 12" for Copper tubes
12" for Flex hoses
DECK MOUNTING HOLES
PLUG
SPOUT SHANK
LOCK RING
MOUNTING
SURFACE
MOUNTING
NUT
(3) 1-3/8" D
HOLES
M965908 (7/18)
