American Standard R127 Installation Instructions

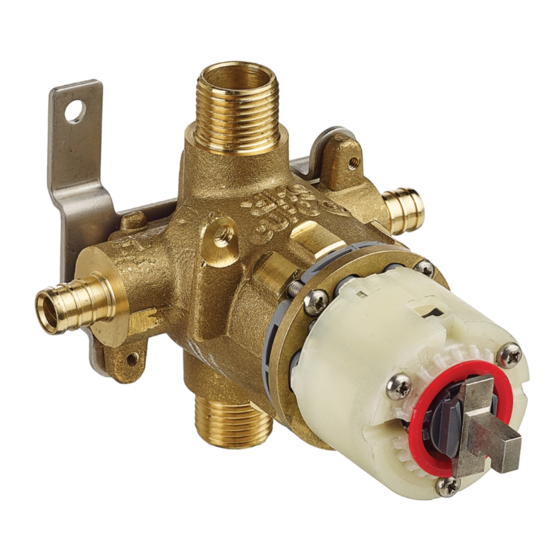

ROUGH VALVE KIT
with PEX CONNECTIONS
PRESSURE BALANCE
FLOW CONTROL VALVE
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly-please read
these instructions carefully before you begin.
RECOMMENDED TOOLS
Phillips Screwdriver
Flat Blade Screwdriver
ROUGHING-IN DIMENSIONS
To assure proper positioning in relation to wall,
n
note roughing-in dimensions.
FINISHED WALL
"SEE ILLUSTRATION"
18" (457mm) OPTIONAL
TOP OF
4"
TUB RIM
(102mm)
BOTTOM OF TUB
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2015
Tubing Cutter Adjustable Wrench
1-5/8" TO 3-1/4"
(41 TO 83mm)
1/2" NPT
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN 65'' AND 78''
1/2" NPT
NOTE: TO AVOID SHOWER RISE OR
OTHER RELATED ISSUES, DO NOT
USE PEX CONNECTIONS ON ANY OF
THE OUTLETS.
INSTALLATION
INSTRUCTIONS
R127
R127SS
R128
R128SS
Channel Locks
PEX (R127)
1/2" PEX INLETS
(ASTM F1807-2)
OUTLETS 1/2" NOM.
COPPER SWEAT or 1/2" NPT
PEX (R127SS)
1/2" PEX INLETS
(ASTM F1807-2)
OUTLETS 1/2" NOM.
COPPER SWEAT or 1/2" NPT
PEX (R128)
1/2" PEX INLETS
(ASTM F1960)
OUTLETS 1/2" NOM.
COPPER SWEAT or 1/2" NPT
PEX (R128SS)
1/2" PEX INLETS
(ASTM F1960)
OUTLETS 1/2" NOM.
COPPER SWEAT or 1/2" NPT
- 1 -
Certified to comply with ANSI A112.18.1
Plumbers' Putty or Caulking
109mm
(4-1/4")
52mm
(2-1/32")
104mm
(4-1/16")
165mm
(6-1/2")
52mm
(2-1/32")
104mm
(4-1/16")
109mm
(4-1/4")
52mm
(2-1/32")
104mm
(4-1/16")
MOUNTING
BRACKET
165mm
(6-1/2")
52mm
(2-1/32")
104mm
(4-1/16")
MOUNTING
BRACKET
M968933 Rev. 1.1 (5/15)
