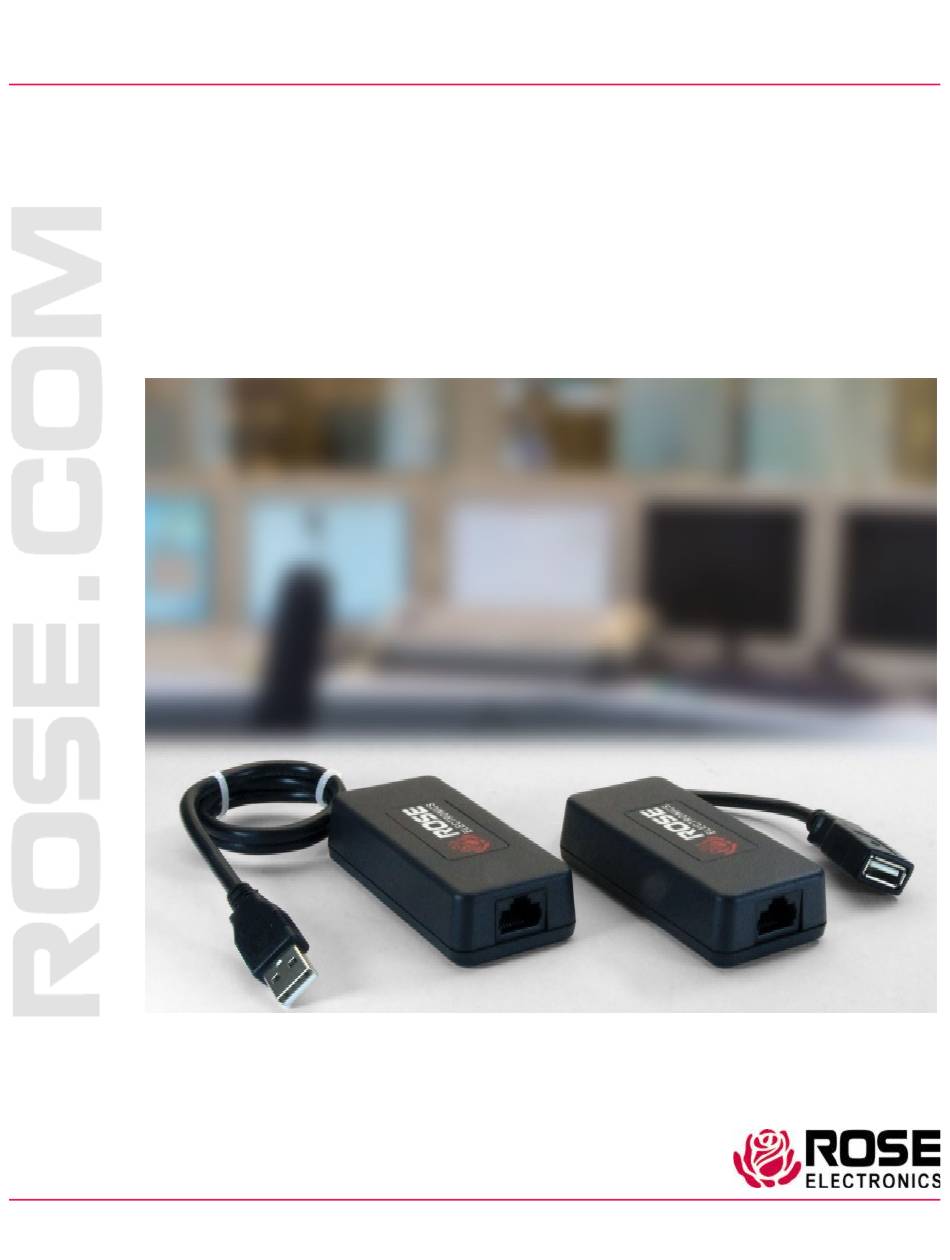

- Page 1 CrystalLink USB1.1 Extender Mini USB1.1 Cat5e/6/7 Extender Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 techsupport@rose.com...
- Page 2 CrystalLink USB1.1 Extender to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 3 DECLARATIONS OF CONFORMITY This is to certify that, when installed and used according to the instructions in this manual, the units listed and described here are shielded against the generation of radio interferences in accordance with the application of Council Directives 2014/30/EU and 2014/30/EU, as well as these standards: ■...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Contents Disclaimer System Introduction Features Package Contents Additional Items required Application Examples CrystalLink USB1.1 Model Installation Procedure Installing the Transmitter Unit Installing the Receiver Unit Connecting the Transmitter to the Receiver Using CAT5e/6/7 Solid Core Cabling Using Premise Cabling Connecting a USB Device Checking the Installation (check USB device detection) CAT5e/6/7 Cable Termination... -
Page 5: Disclaimer
(See limited warranty). System Introduction Thank you for choosing the Rose Electronics CrystalLink USB1.1 CAT5e/6/7 Extender. The CrystalLink USB1.1 extends USB1.1 devices (or USB2.0 at low/full speed) up to 130 feet (40 meters) over CAT5e/6/7 UTP cable. -
Page 6: Package Contents
Package Contents The package contents consist of the following items: ■ Transmitter unit ■ Receiver unit ■ One USB-AB cable, 6ft (2.0m) ■ Installation & Operation Manual Additional Items required ■ USB 1.1 or 2.0 compatible computer (host computer) with a USB compliant Operating System ■... -
Page 7: Crystallink Usb1.1 Model

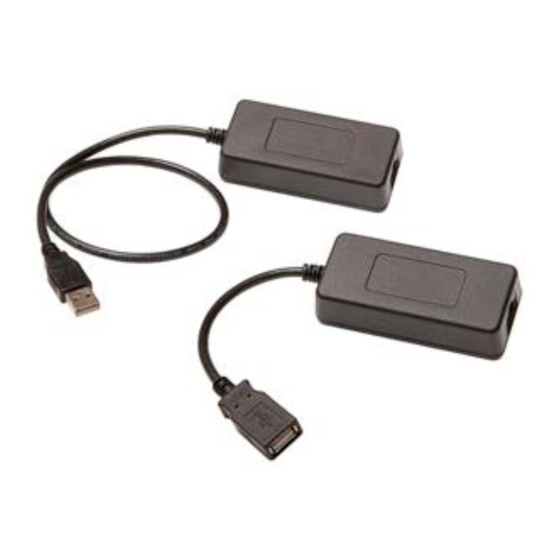

MODELS CrystalLink USB1.1 Model CrystalLink USB1.1 Transmitter and Receiver Units Transmitter unit The Transmitter Unit connects to the computer using the upstream USB Type-A connector. 1 = Host Port (USB Type A male) connect this Type A USB to the host computer 2 = Link Port RJ45, accepts RJ45 connector for CAT5e/6/7 cable Receiver unit... -
Page 8: Installation Procedure
INSTALLATION Installation Procedure Before beginning an installation, ensure you have all products and components ready for the installation USB1.1 Host TX Unit Up to 40m of Cat5e/6/7 cable RX Unit USB1.1 Device Figure 2. CrystalLink USB1.1 standard installation Determine where the computer is to be located and set up the computer. ... -
Page 9: Using Cat5E/6/7 Solid Core Cabling
Using CAT5e/6/7 Solid Core Cabling Plug one end of the CAT5e/6/7 cabling (not included) into the Link port (RJ45) on the transmitter unit. Plug the other end of the CAT5e/6/7 cabling into the Link port (RJ45) on the receiver unit. ... -
Page 10: Troubleshooting
TROUBLESHOOTING Troubleshooting The following table provides troubleshooting tips. The topics are arranged in the order in which they should be executed, in most situations. If you are unable to resolve the problem after following these instructions, please contact Technical Support for further assistance. PROBLEM CAUSE SOLUTION... -
Page 11: Safety
PRODUCT SAFETY Safety The CrystalLink USB1.1, like all electronic equipment, should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. Follow all instructions and warnings marked on this Unit. ... -
Page 12: Maintenance And Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 13: Appendices
APPENDICES Appendix A — Specifications Part Numbers Description CLK-1U1TP-40M CrystalLink USB1.1 CAT5e/6/7 Extender CAB-USBAB006 USB-AB cable, 6ft (2.0m) CAB-USBAB010 USB-AB cable, 10ft (3.0m) Chassis Dimensions (W x D x H) Transmitter and receiver chassis 1.57” x 3.34” x 0.98” (40 x 85 x 25 mm) Power Requirements Power source The transmitter unit is powered by the host computer using the USB cable... - Page 14 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
