  • Page 1 ZigBee - Combined Interface User Manual Combined Interface Model: Z108A 20140630 FW V1.0 (20140611) HW V1.0...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction............................. 2 2. Product Appearance ........................3 3. Specification ............................ 4 4. Installation............................4 5. Setting up Z108A ..........................4 5-1. Join the ZigBee Network......................4 5-2. Permit-Join ..........................4 5-3. Switch Transmission Mode ....................5 5-4.

  • Page 3: Introduction

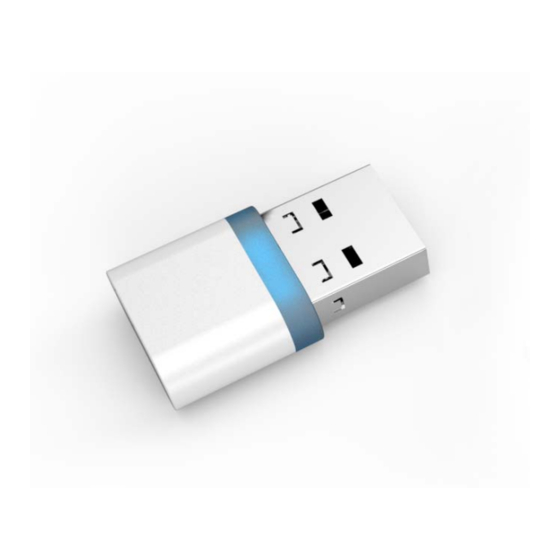

    1. Introduction Netvox Z108A, a ZigBee USB Dongle, acts as a coordinator or a router in ZigBee network. It is designed for a computer or a gateway to communicate with ZigBee network. Users can search devices, send commands, control devices, or perform customized scheduling using ZigBee applications.

  • Page 4: Product Appearance

    2. Product Appearance...

  • Page 5: Specification

    3. Specification Fully IEEE 802.15.4 compliant Utilizes 2.4GHz ISM band; up to 16 channels Power supply: USB port Receiver Sensitivity: -100 dBm Receiving consumption < 30mA Transmitting consumption < 42mA Up to 350 meters wireless transmission range in non-obstacle space Easy installation and configuration 4.

  • Page 6: Switch Transmission Mode

    The command to switch to data-transmission mode "020FFE117777772E6E6574766F782E636F6D2E636ECB" It is actually "www.netvox.com.cn" After it switches to data-transmission mode successfully, the stream "021FFE0100E0" is returned. In data transmission, Z108A broadcasts data wirelessly. Raw data ‘010203’, for example, can be entered and transmitted directly.
  • Page 7 Step2. Click Yes. Step3. Choose Z103 in Please Select Device Type. Step4. Choose Port and click Test.

  • Page 8: Restore To Factory Setting

    Step5. It shows Successful Connection when the test is succeeded; otherwise, it shows Connection Failed. Step6. Click Save and Close to complete the setting.. 5-5. Restore to Factory Setting To restore Z108A to factory setting, please use ZigBee applications.

  • Page 9: Home Automation Clusters For Z108A

    StackVersion 8-bit integer 0xff 0x0003 Unsigned 0x00 – Read only 0x0A HWVersion 8-bit integer 0xff 0x0004 Character 0 – 32 Read only netvox ManufacturerName string bytes 0x0005 Character 0 – 32 Read only Z108E3C/Z ModelIdentifier string bytes 108E3R 0x0006 Character 0 –...
  • Page 10 0x0007 8-bit 0x00 – Read only 0x04 PowerSource Enumeration 0xff 0x0010 Character 0 – 16 Read/write LocationDescription string bytes 0x0011 8-bit 0x00 – Read/write 0x00 PhysicalEnvironment Enumeration 0xff 0x0012 Boolean 0x00 – Read/write 0x01 DeviceEnabled 0x01...

  • Page 11: Important Maintenance Instructions

    7. Important Maintenance Instructions • Please keep the device in a dry place. Precipitation, humidity, and all types of liquids or moisture can contain minerals that corrode electronic circuits. In cases of accidental liquid spills to a device, please leave the device dry properly before storing or using.
