Introduction and Specifications
1.4

Major Components

The major components of the DynaPro are shown in Figures 1-2, 1-3 and 1-4.
Note: The ferrite bead must remain attached to the stylus cable at all times, do not remove.
Changes or modifications not expressly approved by MagTek could void the user's
authority to operate the equipment.

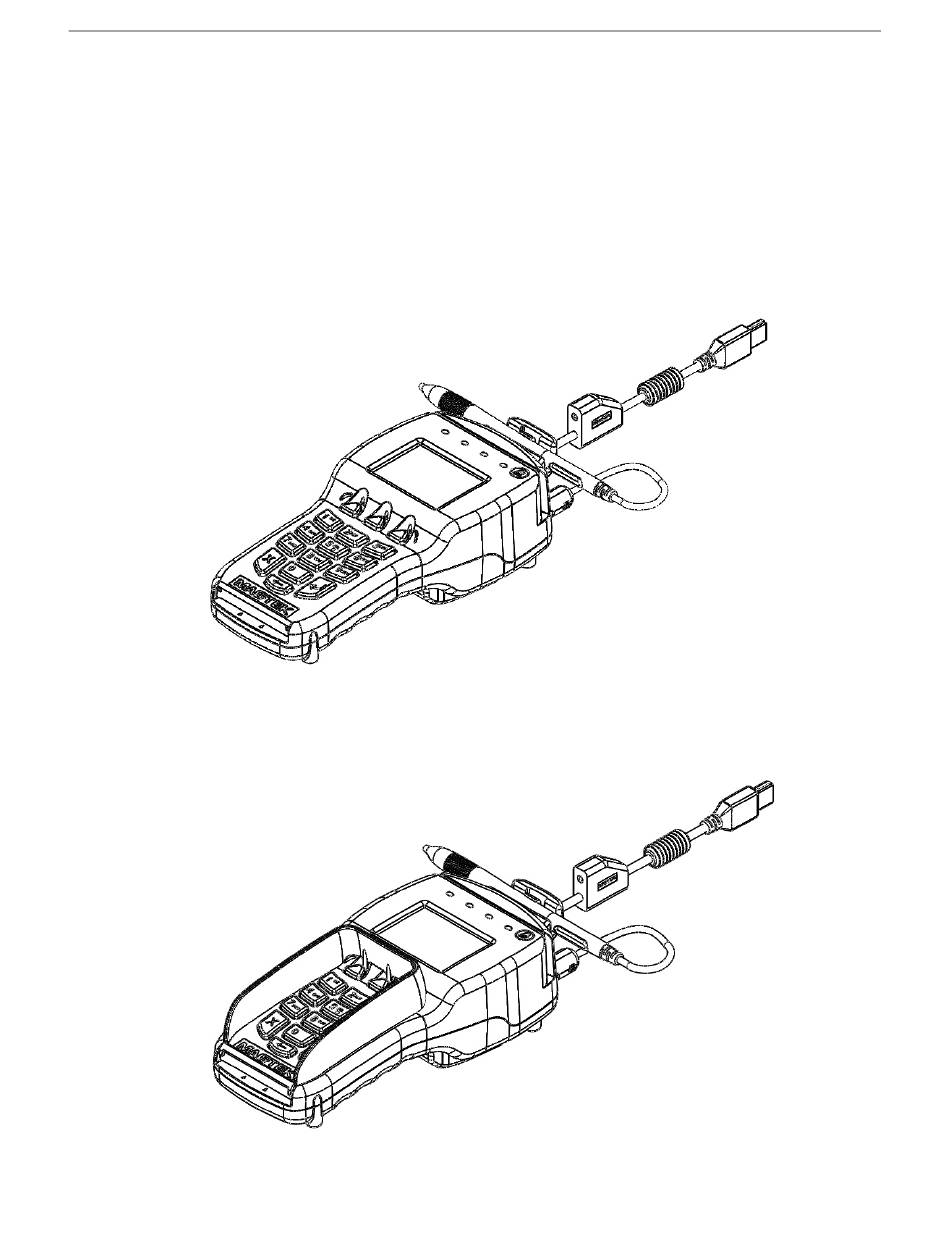

Figure 1-2. Major Components (front)

Figure 1-3. With Privacy Shield

3
