Operation
4.8

Card Reading using the Smartcard Reader for an EMV Transaction

An EMV transaction is started by the host sending an amount to be approved by a cardholder, as
shown in Amount Verify.
After the cardholder accepts the amount, the device will prompt the cardholder to insert his
smartcard by showing:
When the appropriate prompt appears (see Figure 4-8 for an example), insert the card with the
smartcard contacts facing up and the magnetic stripe facing down as indicated in Figure 4-8
below.

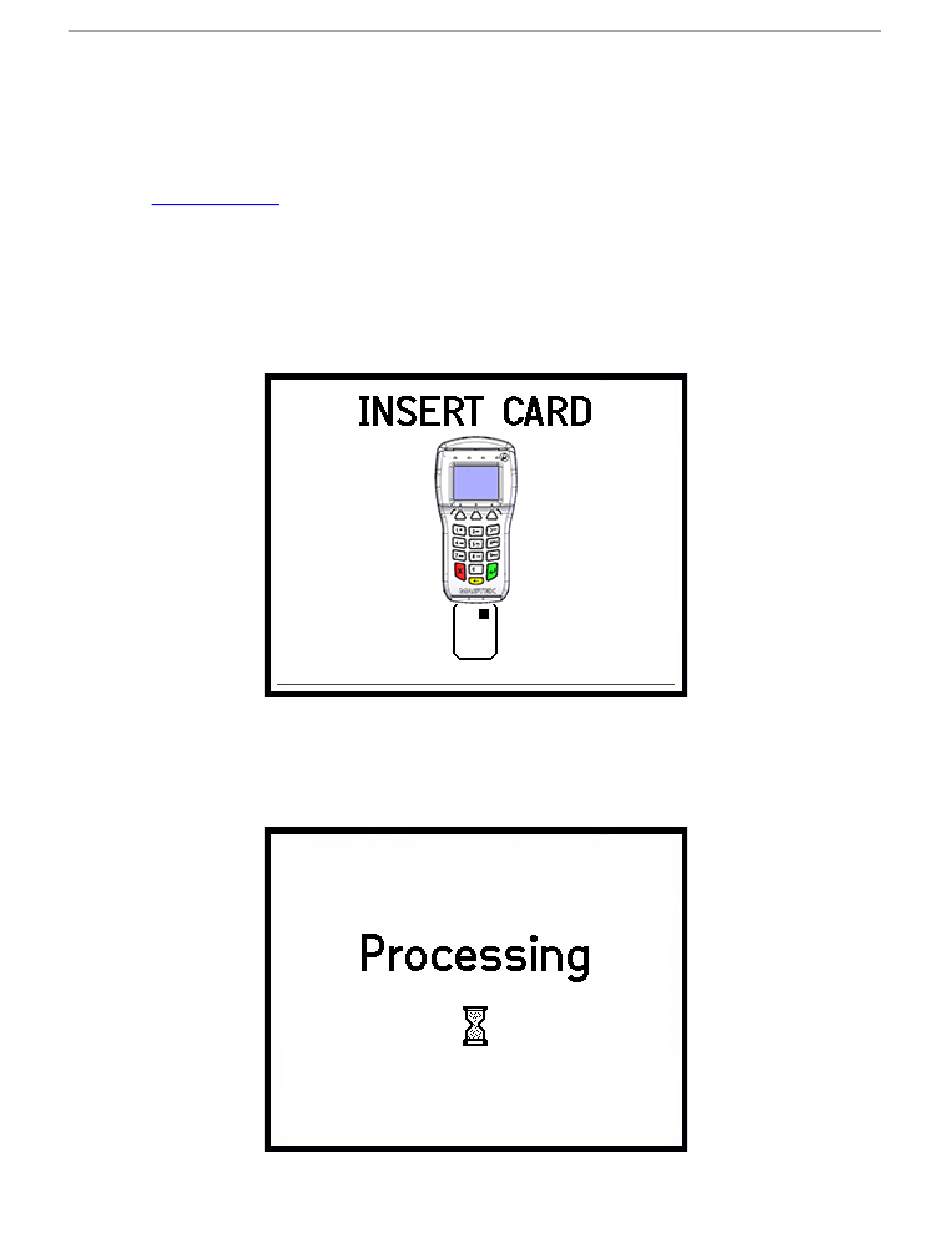

Figure 4-8. Example of EMV card insertion

The display will then show processing
. If the Smartcard data could not be read, the application may
prompt the user to insert the card again

Figure 4-9. Processing Screen
