3.3

Privacy Shield Installation

To install the Privacy Shield, follow the steps below.
Place the clips of the open end of the Privacy Shield into the openings located just above the
contact card slot as shown in Figure 3-2.
Pivot the shield down, locking the three clips into the holes located just above the function
buttons.
3.4

Privacy Shield Removal

To remove the Privacy Shield, follow the steps below.
Grasp the Privacy Shield and slowly lift the edge closest to the LCD, pivoting the shield up to a
45 degree angle and remove the shield.

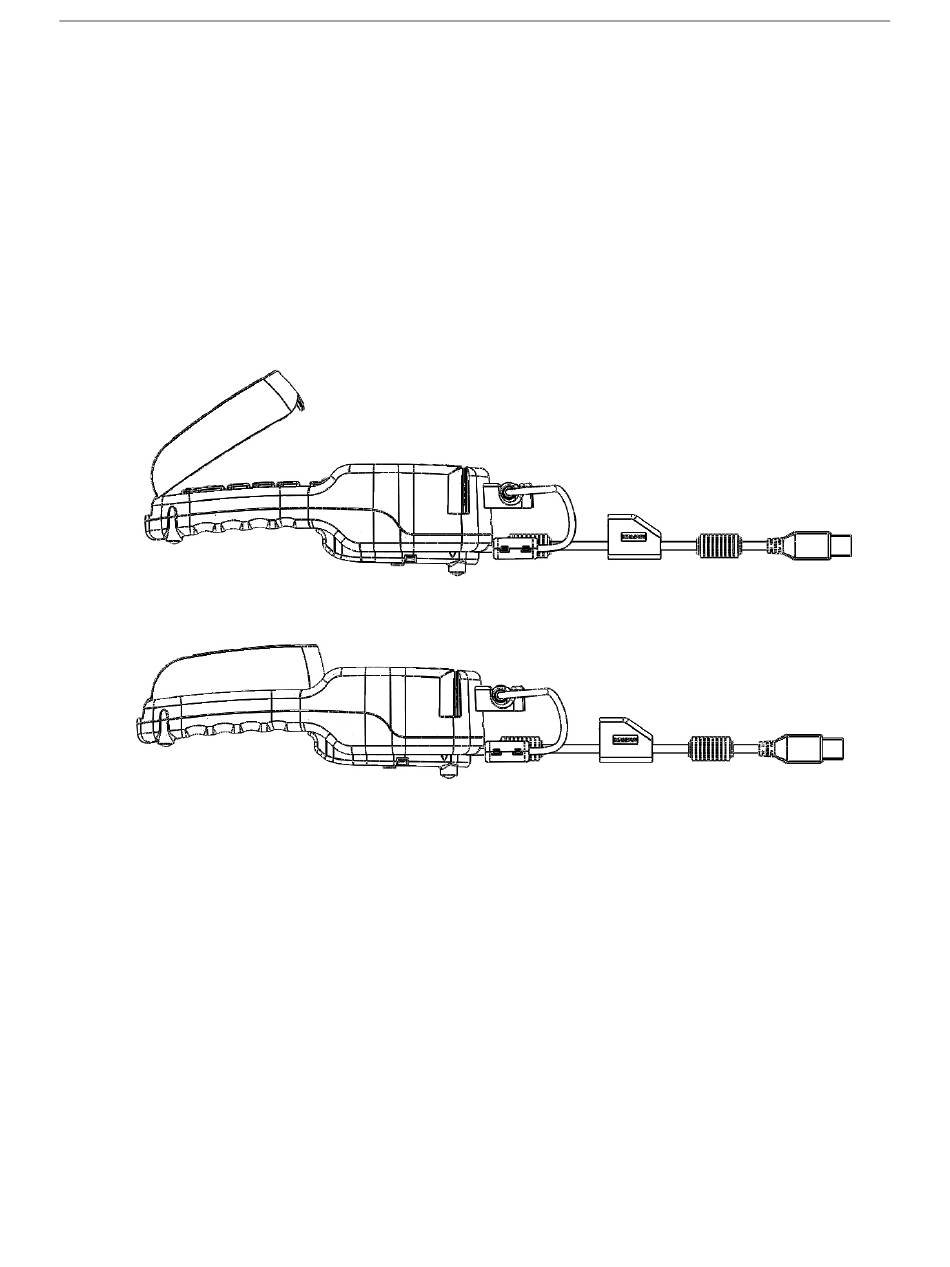

Figure 3-3. Installing the Privacy Shield

Operation
11
