Operation
Depending on the requirements of the smartcard, the device may ask for signature or PIN.
If PIN entry is required, the device will ask the cardholder to enter PIN using this screen:

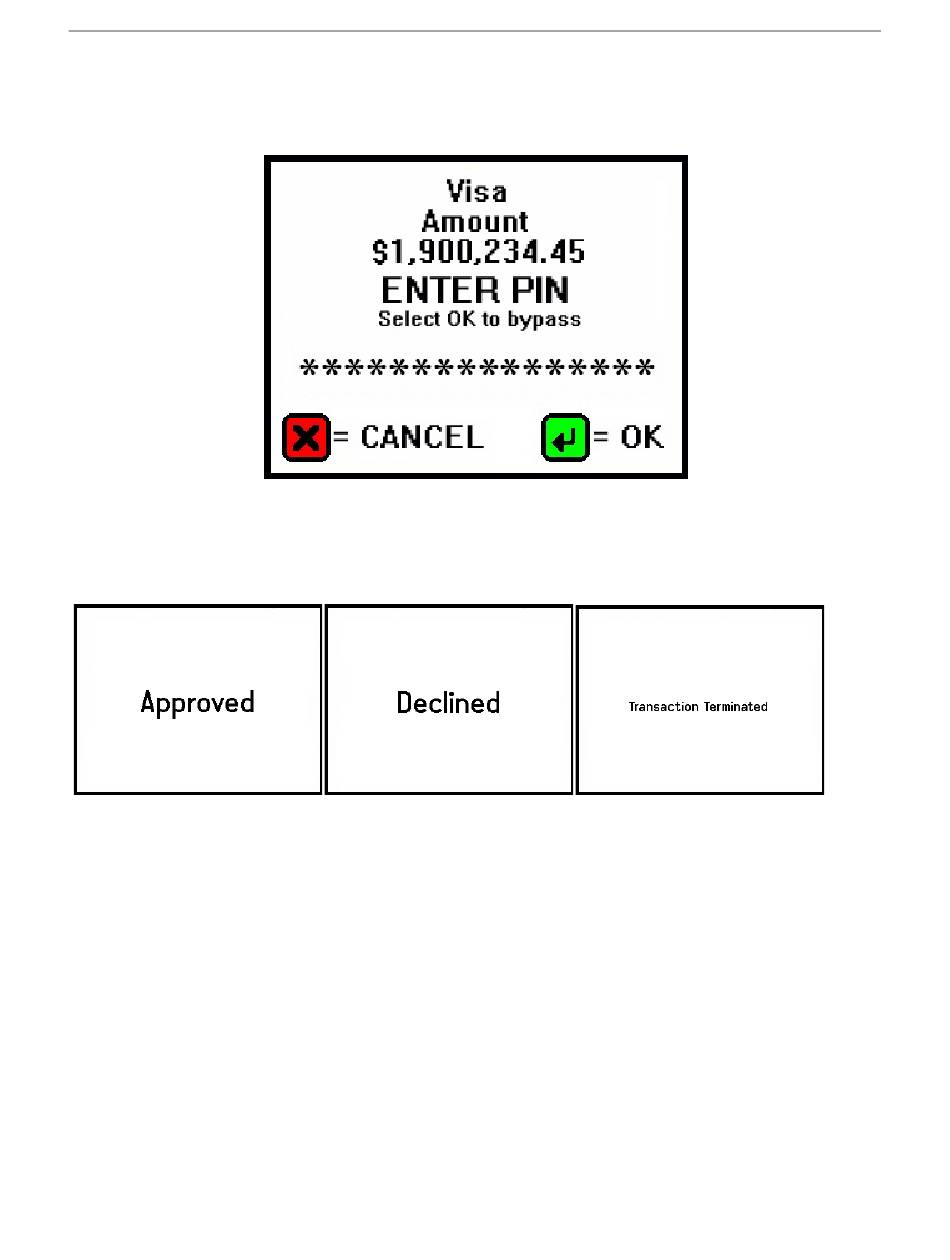

Figure 4-10. Example of Enter PIN Screen for EMV Transactions

Processing continues, after which the DynaPro will show the outcome – whether the transaction
is APPROVED, DECLINED or TERMINATED.

Figure 4-11. Examples of Screen Approved, Declined or Terminated

Transaction data will be sent to the host, and as the last step of the EMV transaction process, the
DynaPro will ask the cardholder to remove the smartcard by displaying:
18
