4.2

Card Reading using the SCR

When the appropriate prompt appears (see Figure 4-2 for an example), swipe the card with the
magnetic stripe down and facing toward the keypad of the DynaPro as indicated in Figure 4-2
below. If the magnetic stripe data could not be read, the application may prompt the user to
swipe the card again.
4.3

Manual Card Entry

If the swiped card's magnetic stripe is damaged or unreadable, the application controlling the
DynaPro may prompt the cardholder to enter information from his or her card manually, as
shown in the following example:

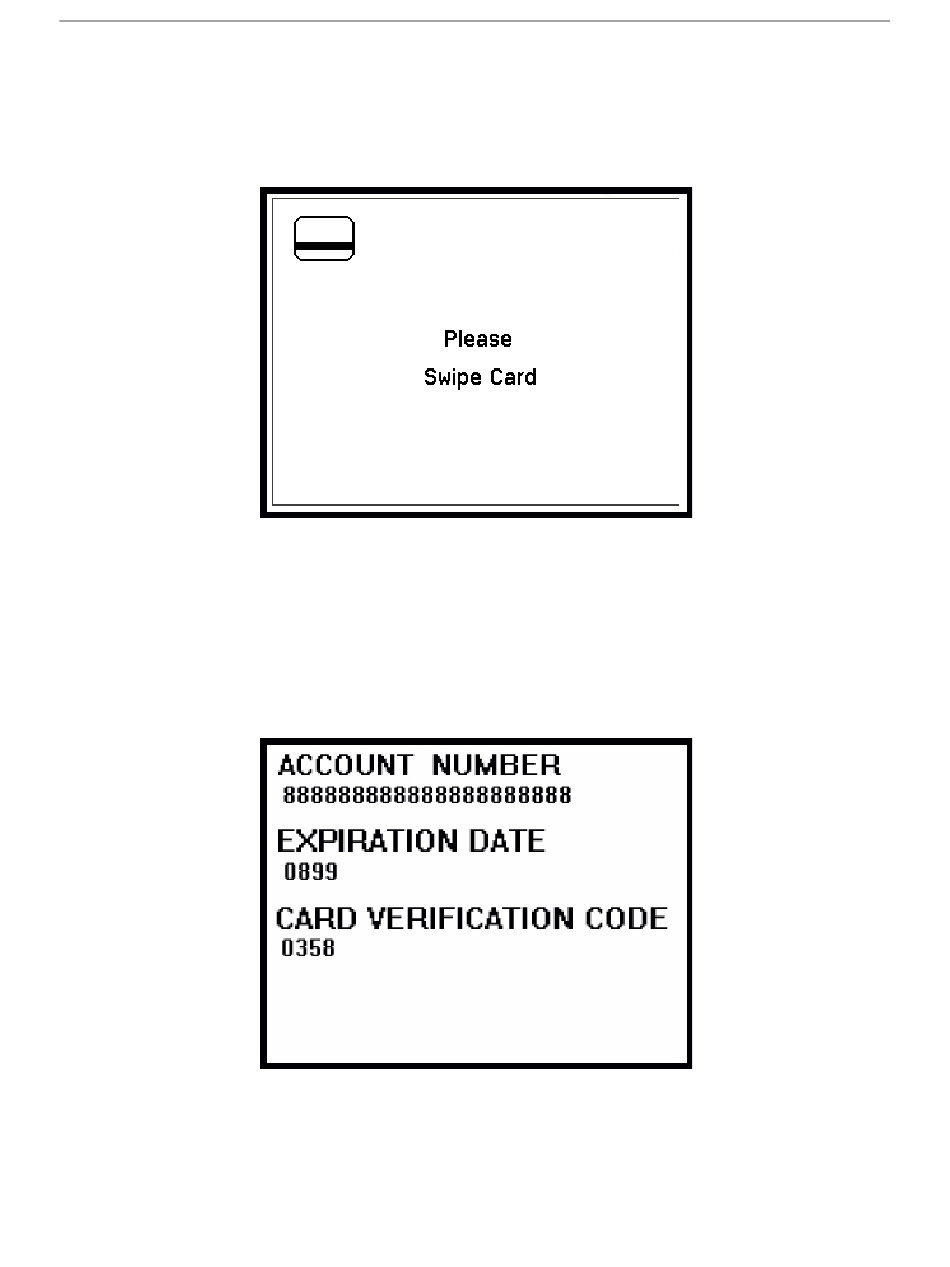

Figure 4-3. Example of User Screen to Manually Enter Card Data

The account number field can be configured with a minimum of 9 and a maximum of 19 digits,
or a minimum of 14 and a maximum of 21 digits. Expiration date consists of 4 digits. The card
verification code can be 3-4 digits in length.

Figure 4-2. Example of Swipe Card Screen

Operation
14
