3.5
Mounting Dimensions
The overall dimensions of the unit and the mounting hole locations are shown in Figure 3-4.
This drawing is not to scale and dimensions are given in inches. In addition, mounting the
DynaPro to a surface will require size # 4-40 screws.
Notes: All dimensions are XX= +/- 0.02 in inches.

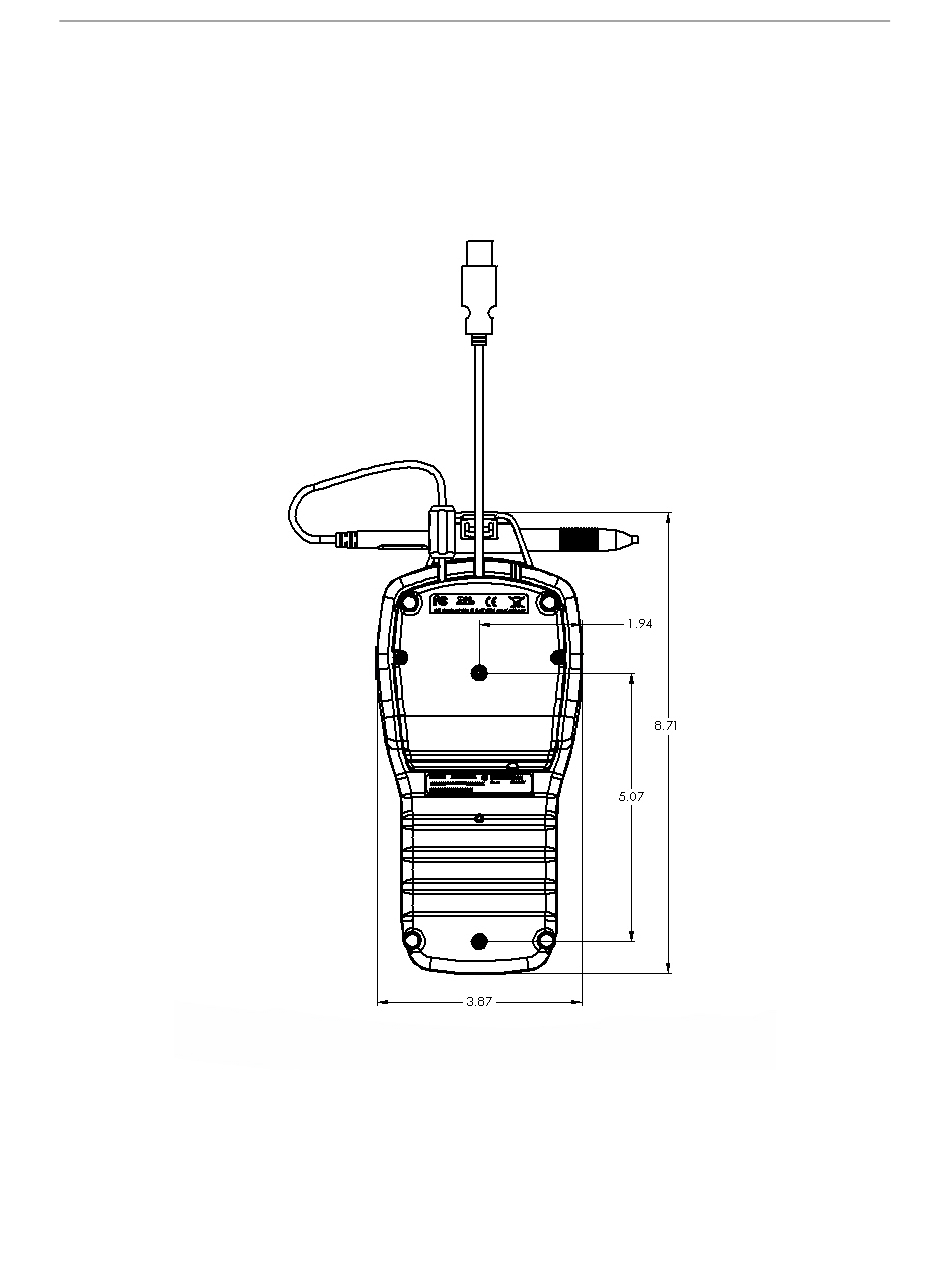

Figure 3-4. Mounting Dimensions and Cable Access Hole
Operation
12
