- Page 1 StarterHorn™ 30° USMA STH-30-USMA...

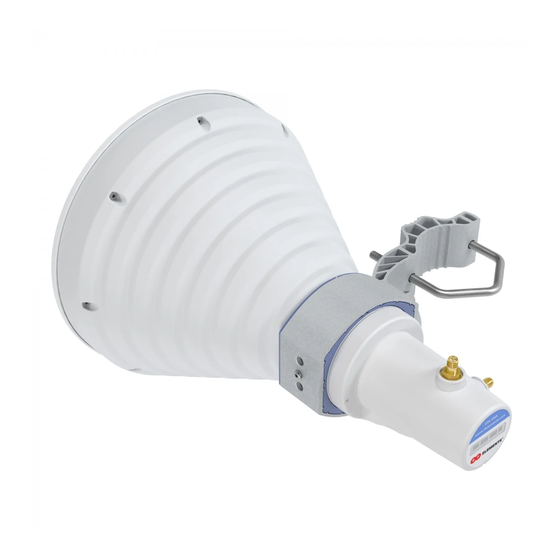

- Page 2 StarterHorn™ 30° USMA Overview Product ID Dimensions Weight Gain 300x262x214 mm 1.5 kg StarterHorn™ 30° USMA STH-30-USMA 18 dBi 11.8x10.3x8.4 inch 3.3 lbs Estimate based on the pre-production units. Subject to change. www.rfelements.com...
- Page 3 StarterHorn™ 30° USMA Package Contents: Use 10 mm Ratchet Wrench when assembling the antenna Number Description Quantity Horn 30° STA-SMA Pole Mount Bracket V-bolt M6 x 16mm Screw M6 Nut without Surface Treatment M6 Nut with Surface Treatment www.rfelements.com...
- Page 4 StarterHorn™ 30° USMA Step 1 Installation Guide Follow this instruction for installation on the left side of the pole. For installation on the right side, attach the bracket to the other side. www.rfelements.com...
- Page 5 StarterHorn™ 30° USMA Step 2 Installation Guide Optional: Surface treated M6 Nuts protect the bracket from galling. If you use M6 nuts without surface treatment, use anti-seize thread lubricant. www.rfelements.com...
- Page 6 StarterHorn™ 30° USMA Step 3 Installation Guide The Pole Mount Bracket should be oriented as shown below, for pole diameter span: 20 - 43 mm. The Pole Mount Bracket should be oriented as shown below, for pole diameter span: 44 - 55 mm. www.rfelements.com...
- Page 7 StarterHorn™ 30° USMA Step 4 Installation Guide www.rfelements.com...
- Page 8 StarterHorn™ 30° USMA Step 5 Installation Guide www.rfelements.com...
- Page 9 StarterHorn™ 30° USMA Step 6 Installation Guide www.rfelements.com...
- Page 10 StarterHorn™ 30° USMA Step 7 Uninstallation Guide www.rfelements.com...
-
Page 11: Compatible Devices
Compatible Devices For a list of compatible devices visit www.rfelements.com RF elements® is trademark of RF elements s.r.o., Slovakia. All rights of trademark owners reserved. RF elements s.r.o. Phone: +421 2 7333 7733 info@rfelements.com www.rfelements.com User Guide Part Number: STH-30-USMA_UG_v1...
