Precor Discovery Olympic Bench Series Assembly Manual

Discovery™ Series Olympic Benches (Incline 410, Flat 408, and Decline 411)
To assemble your equipment, follow the steps in the order listed in this assembly guide. For more product information, visit us at www.precor.com.
WARNING At least two people are required to assemble the equipment.
DO NOT attempt assembly by yourself.
Assembly requirements
When assembling the equipment, we recommend you:
Unpack the box and assemble the equipment close to where you plan to use it.

Locate the equipment at least 40 inches (1 meter) away from walls or furniture on either side of the equipment, and 40 inches (1 meter) away from objects behind or in

front of the equipment.
Assemble the equipment on a solid, flat surface, so that it remains level and stable.

DO NOT move the equipment without assistance.


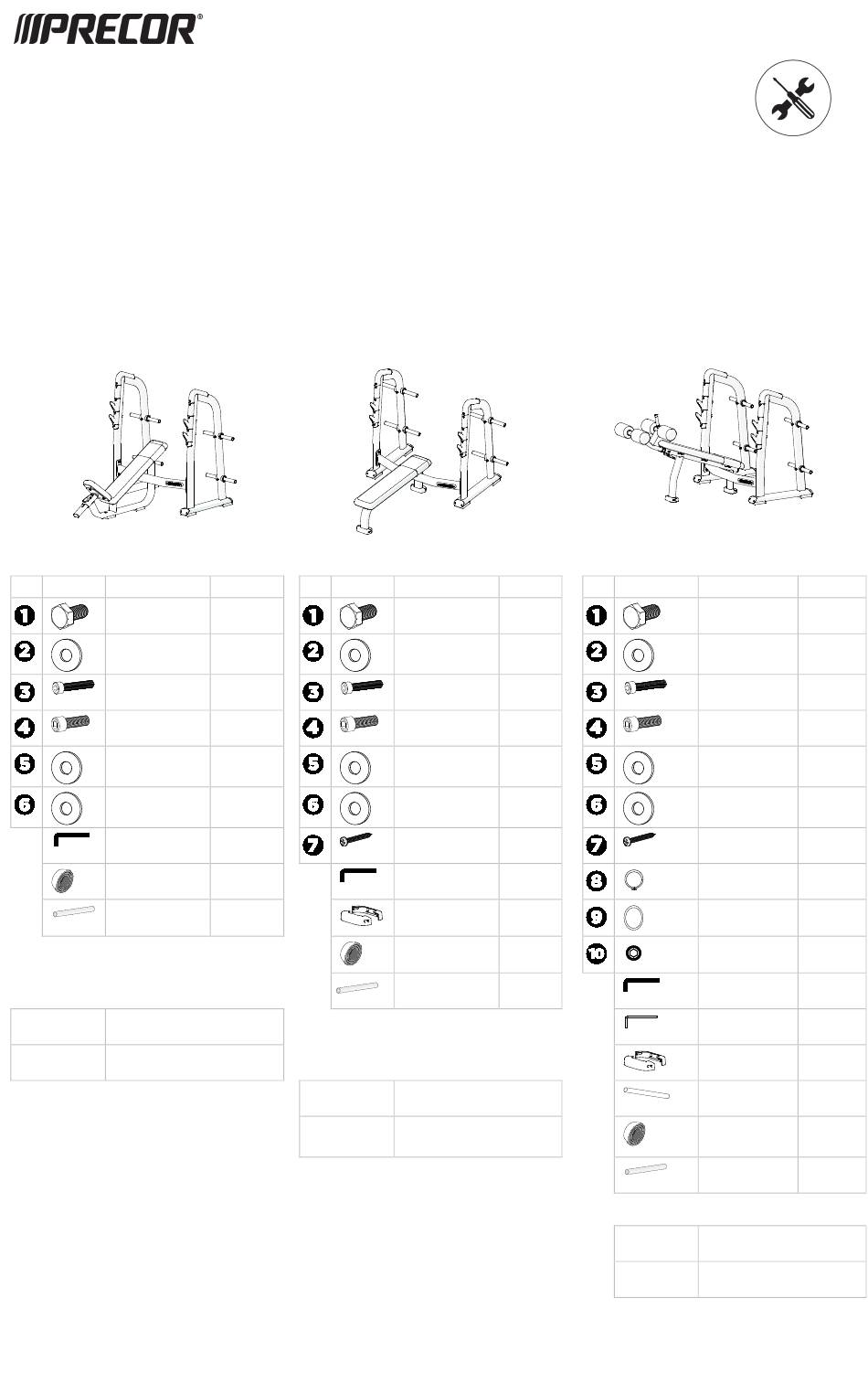

Hardware kits
Olympic Incline Bench (410)
Component
Hex head bolt
(M10 × 35 mm)
Flat washer
(11 x 23 mm)
Socket head bolt
(M12 × 50 mm)
Socket head bolt
(M12 × 35 mm)
Flat washer
(13 x 20 mm)
Flat washer
(13 x 26 mm)
Hex key (10 mm)
Storage horn
bumper
Weight storage
horn
Specifications
Equipment 79" L x 65" W x 55" H (2000 mm
Dimensions L x 1650 mm W x 1500 mm H)
Equipment
220 lb (100 kg)
Weight
Required Tools
Rubber Mallet

10 mm hex bit

Flat head bolt driver

Circlip pliers

Olympic Flat Bench (408)
Quantity
9
9
4
6
4
6
1
8
4
Specifications
Equipment
Dimensions
Equipment
Weight
Component Quantity
Hex head bolt
6
(M10 × 35 mm)
Flat washer
6
(11 x 23 mm)
Socket head bolt
4
(M12 × 50 mm)
Socket head bolt
6
(M12 × 35 mm)
Flat washer
4
(13 x 20 mm)
Flat washer
6
(13 x 26 mm)
Self tapping screw 4
Hex key (10 mm) 1
Foot cover set 2
Storage horn
8
bumper
Weight storage
4
horn
73" L x 65" W x 51" H (1850 mm
L x 1650 mm W x 1300 mm H)
188 lb (85.4 kg)
Olympic Decline Bench (411)
Component
Hex head bolt
(M10 × 35 mm)
Flat washer
(11 x 23 mm)
Socket head bolt
(M12 × 50 mm)
Socket head bolt
(M12 × 35 mm)
Flat washer
(13 x 20 mm)
Flat washer
(13 x 26 mm)
Self tapping
screw
Circlip
Wave spring
washers
Set screw
(M8 x 6 mm)
Hex key (10 mm)
Hex key (8 mm)
Foot cover set
Roller tube
Storage horn
bumper
Weight storage
horn
Specifications
Equipment 83" L x 65" W x 51" H (2100 mm
Dimensions L x 1650 mm W x 1300 mm H)
Equipment
217 lb (98.4 kg)
Weight
Quantity
6
6
4
6
4
6
4
4
8
4
1
1
2
2
8
4
