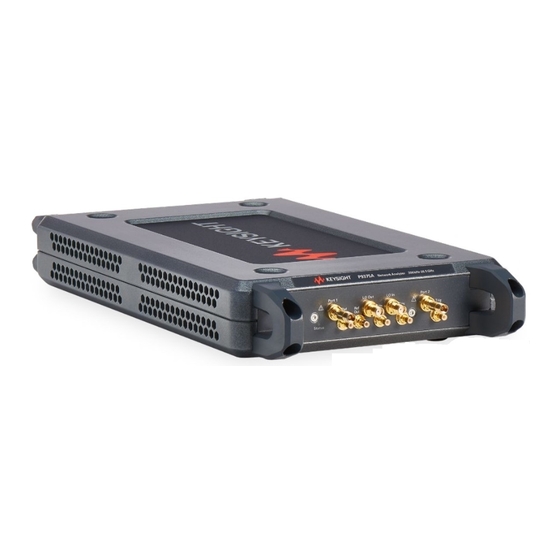

Keysight Streamline Series: Exceptional Performance in a Small Package Balance deadlines, productivity, budget and bench space with the Streamline Series. You’ll move confidently across every stage of your product’s development lifecycle by leveraging accurate and repeatable measurements, automated code capability, and a consistent, intuitive user experience. With comprehensive Keysight Services including calibration, education and consulting, these instruments enhance your solution to help you accelerate technology adoption and lower costs. -
Page 4: Keysight Streamline Series Vector Network Analyzer Configurations
Keysight Streamline Series Vector Network Analyzer Configurations Model Description Test port connectors P937xA Series P9370A 300 kHz to 4.5 GHz, 2-port 3.5 mm (f) P9371A 300 kHz to 6.5 GHz, 2-port 3.5 mm (f) P9372A 300 kHz to 9 GHz, 2-port 3.5 mm (f) -
Page 5: Application Software
The P937xA and P500xA can not be combined in multiport configurations. A 4-port ECal module (i.e. N4431/32/33) is recommended for multiport measurements (n > 4). Find us at www.keysight.com Page 5 dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ info@datatec.de ▪ www.datatec.de... -
Page 6: Accessories
P500xA and 2 flexible control cables. Find us at www.keysight.com Page 6 dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ info@datatec.de ▪ www.datatec.de... -
Page 7: Measurement Application Software
The Y1731A PXI Adapter Module is recommended if using external master pulses or external pulse modulators. Find us at www.keysight.com Page 7 dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ info@datatec.de ▪ www.datatec.de... -
Page 8: Noise Figure Measurements With Vector Correction (S97029A)
S97082A provides an intuitive and easy-to-use user interface for setting up mixer and converter measurements, with single or dual conversion stages. It can control external signal generators for use as LO signals. Supported external sources include the Keysight ESG, PSG, EXG, and MXG Series, as well as other SCPI-controlled signal generators. -
Page 9: Gain Compression Measurements (S97086A)
P937xA Series P500xA Series Keysight USB VNA offers a capability to extend the number of ports for your measurements by using up to two instruments. When multiple instruments are used, they are configured for multiport operation. The instruments may be identified by the firmware as one VNA by an external PC. At least one VNA instrument connected to your PC must have one S97551A license to maintain N-port capabilities with multiple instruments. -
Page 10: Material Measurements
P937xA Series P500xA Series The Keysight N1500A materials measurement suite streamlines the process of measuring complex permittivity and permeability with a vector network analyzer. Various type of measurements, such as transmission line and free space, arch reflectivity, resonant cavity, and coaxial probe are available as options. -
Page 11: Upgrading Your System
P9373AU- P9374AU- Extend analyzer’s frequency range to 26.5 GHz Find us at www.keysight.com Page 11 dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ info@datatec.de ▪ www.datatec.de... -
Page 12: Measurement Accessories
1.0 mm, and waveguide. Test port cables and a calibration kit should be added for a complete measurement system. A verification kit is used to verify corrected system performance. Cable and adapter sets Keysight offers cables in the following types: Single cables in semi-rigid and flexible •... -
Page 13: Calibration Kits
For more information about ECal modules, refer to the technical overview 5963-3743E (N4690, 85090, N4430 and N7550 Series). Waveguide measurements For waveguide measurements, Keysight offers mechanical calibration kits that include: Waveguide-to-coax adapters (X, P, K, R, Q, U, V) •... -
Page 14: For Devices With 3.5 Mm Or Sma Connectors
85052-60014 3.5 mm (m) to 3.5 mm (m) adapter • Find us at www.keysight.com Page 14 dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ info@datatec.de ▪ www.datatec.de... - Page 15 Option 150: Replaces standard storage container with a wooden box • Find us at www.keysight.com Page 15 dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ info@datatec.de ▪ www.datatec.de...
- Page 16 85052-60012 3.5 mm (f) to 3.5 mm (f) adapter 85052-60014 3.5 mm (m) to 3.5 mm (m) adapter Find us at www.keysight.com Page 16 dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ info@datatec.de ▪ www.datatec.de...
- Page 17 Special rugged female connector specifically for connecting to the network analyzer test port, but does not mate with a standard male connector. Find us at www.keysight.com Page 17 dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ info@datatec.de ▪ www.datatec.de...
-
Page 18: For Devices With Type-N Connectors
Special rugged female connector specifically for connecting to the network analyzer test port, but does not mate with a standard male connector. Find us at www.keysight.com Page 18 dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ info@datatec.de ▪ www.datatec.de... - Page 19 85054-60046 Type-N (m) fixed load • 85054-60047 Type-N (f) fixed load • Find us at www.keysight.com Page 19 dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ info@datatec.de ▪ www.datatec.de...
- Page 20 85054-60037 Type-N (f) to Type-N (f) adapter 85054-60038 Type-N (m) to Type-N (m) adapter Find us at www.keysight.com Page 20 dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ info@datatec.de ▪ www.datatec.de...
- Page 21 85054-60029 3.5 mm to Type-N (f) • 85054-60030 3.5 mm to Type-N (m) • Find us at www.keysight.com Page 21 dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ info@datatec.de ▪ www.datatec.de...
-
Page 22: For Devices With 7 Mm Connectors
X281C adapter (included in calibration kit): WR-90 to 7 mm • Find us at www.keysight.com Page 22 dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ info@datatec.de ▪ www.datatec.de... - Page 23 11644-60003 U-band 10 cm straight waveguide • 11644-60018 U-band 5 cm straight waveguide • Find us at www.keysight.com Page 23 dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ info@datatec.de ▪ www.datatec.de...
-
Page 24: Verification Kits
Ihr Spezialist für Mess- und Prüfgeräte Verification kits All Keysight verification kits include: Precision Z0 airline or match thru • Mismatched airline or mismatch thru • Fixed attenuators (except 85059V) • Traceable measured data and uncertainties • 85051B 45 MHz to 18 GHz 7 mm kit Includes attenuators, airline and mismatch airline with data on a USB drive for use in confirming calibrated system performance, traceable to national standards.
