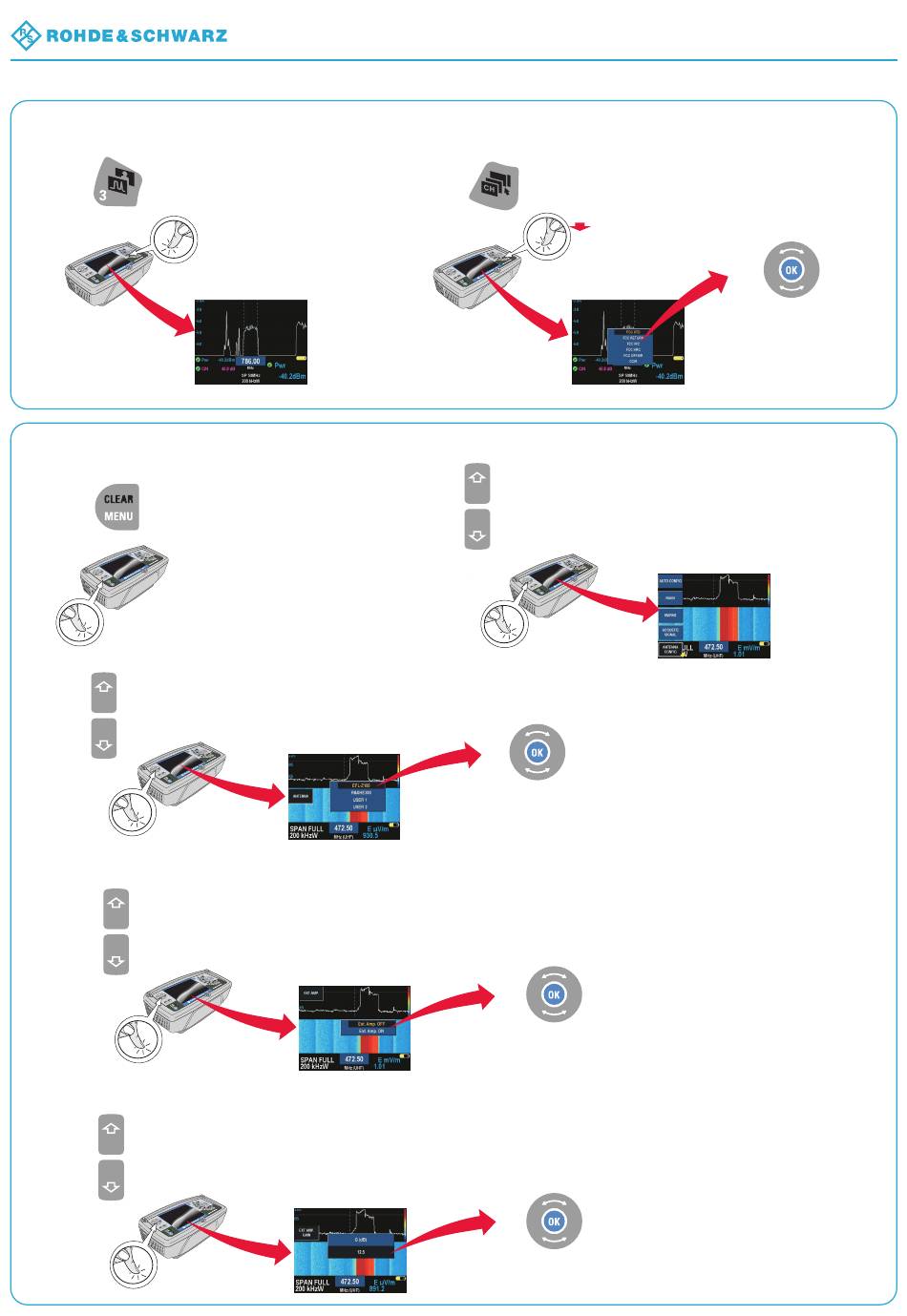

SETTING-UP THE EQUIPMENT FOR LEAKAGE FUNCTION
R&S
EFL110/210
®
R&S
(Only before first use. The
(only necessary if outside USA – default setting is FCC channel plan)
2
EFL110/210
®
will keep these settings)
2
Press
for more than one second
With
select LEAKAGE->ANTENNA CONFIG.
Use
to select your antenna from the list
Use
to select your Ext.Amp.ON from the list
Use
to select the gain of your antenna
> 1 sec.
Use
to select the channel plan
Select FCC for USA and
CCIR for Europe
R&S
EFL-Z100
®
is EXT. AMP. ON
Default for
R&S
EFL-Z100
®
is Gain=12.5dB
