Common Toolbar Control Icons

Name
Home
Back
Tools
Save
Screen Layout

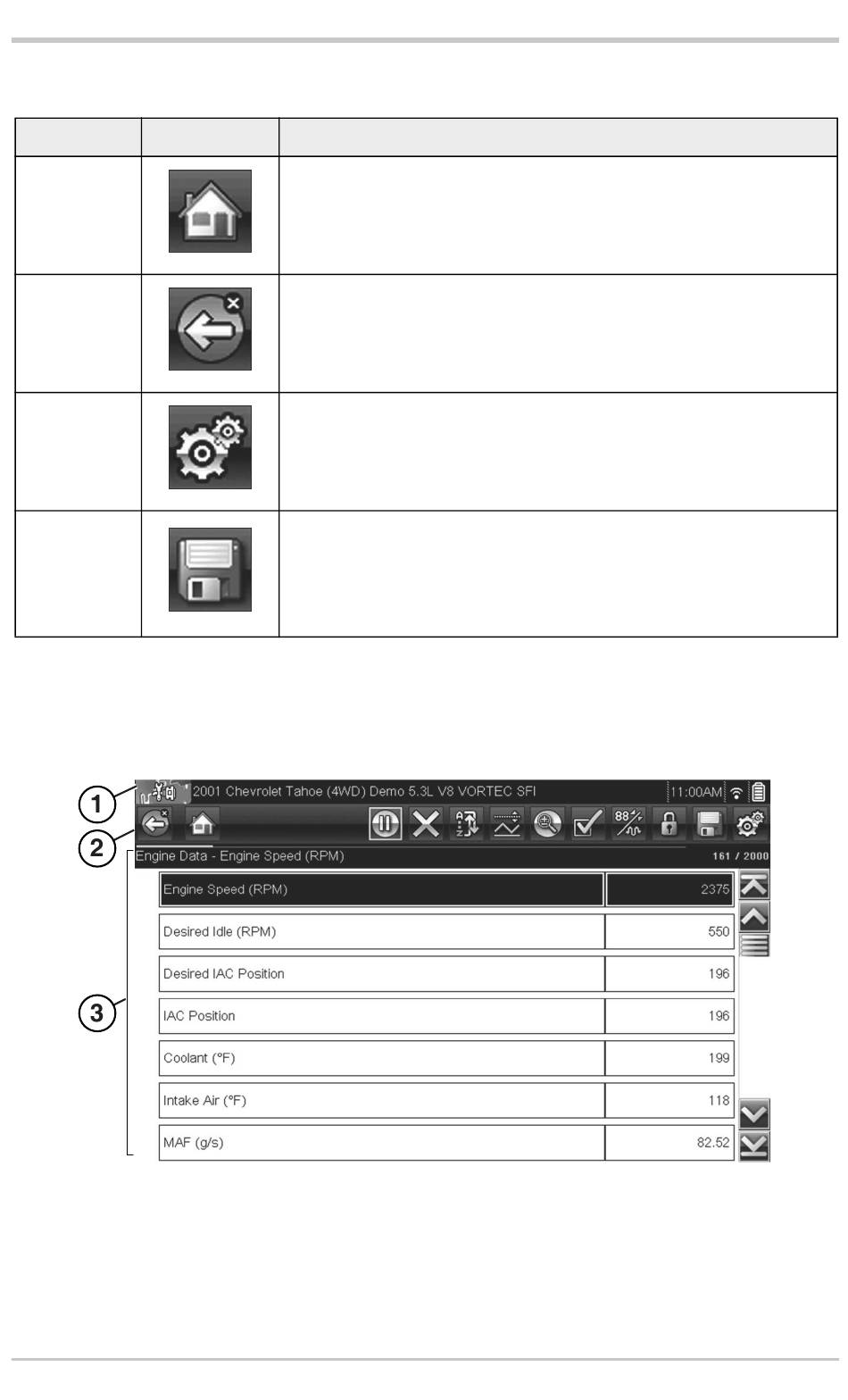

Diagnostic tool screens typically include three sections:
1) Title bar—displays information such as, active test, vehicle ID, current
time, power source indicator and vehicle communication indicator
2) Toolbar—contains test information and control icons
3) Main body—displays menus and test data. A vertical scroll bar
(right-hand edge) displays when there is additional data.
Icon
Returns to the Home screen.
Returns to the previous screen.
Opens the Tools menu.
Writes data from buffer memory to a file. The saved
"movie" file can be accessed for future reference by
selecting Previous Vehicles and Data > View Saved
Data.
Common Toolbar Control Icons
Description
