Service Manual
FROMM
FROMM
Manual battery Robot FR3xx/FR4xx
Stretch Wrapping machine's
Version 01 Machines
Version 01 List
Website : www.fromm-stretch.com
It is forbidden to duplicate this manual or parts of it in any way or any form without written permission of the author © 2010
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Fromm FR3 Series
Summary of Contents for Fromm FR3 Series
- Page 1 Manual battery Robot FR3xx/FR4xx Stretch Wrapping machine’s Version 01 Machines Version 01 List Website : www.fromm-stretch.com It is forbidden to duplicate this manual or parts of it in any way or any form without written permission of the author © 2010...
-
Page 11: Operating Principle

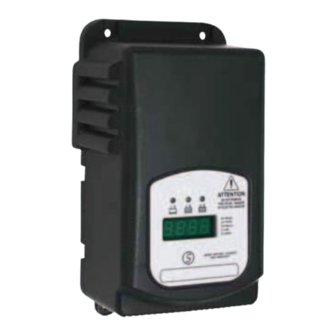

FROMM MANUAL-FR3.0014_EN_V01 TECHNICAL FEATURES OF THE CBHF1-SM SERIES (Robot FR3xx/FR4xx) The innovative characteristics of the CBHF1-SM range of battery charger are the following: Advanced Mosfet technology with high frequency and insulation transformer. Charging process fully controlled by microprocessor. Visualization on a lit display of the charging current, of the battery voltage, of the charging time, of the electric charge supplied in Ah’s and of the electric energy absorbed in KWh’s. - Page 12 FROMM MANUAL-FR3.0014_EN_V01 Technical remarks When the maximum voltage admissible for a specific battery is reached (value given by the manufacturer) the error message „E01‟ is displayed, and the process is terminated. By using an internal thermostat, the charging can be interrupted in case of excessive battery charger over-temperature.
- Page 13 FROMM MANUAL-FR3.0014_EN_V01 CBHF1-SM DIP SWITCH CONFIGURATION In the following tables you can find meaning of all different position of dipswitch for programming CBHF1-SM battery chargers. DIP6 DIP7 DIP8 DIP1 DIP2 DIP3 DIP4 DIP5 4 for the selection of the CHARGING CURVE...
- Page 14 FROMM MANUAL-FR3.0014_EN_V01 PRE-PROGRAMMED CURVES FOR CBHF1-SM Tab.1 CURVE CURVE TYPE DIPSWITCH DP1-DP2-DP3-DP4 IUa SO (IUa + float charge 2,30VPC) = IUUo ON-ON-ON-ON Technology for charging DRYFIT TRACTION BLOCK (TRACTION GEL batteries). In compliance with the DIN 41773 regulations. IUIa Lead-Acid OFF-ON-ON-ON Technology for charging TRACTION Lead-Acid batteries.
- Page 15 The tension between the two batteries must be the same, if isn’t so, the battery that has less voltage has a part in “short-circuit”. Should the problem persist, contact the Customer After-Sales Service of Manufacturer. FROMM Stretch Wrapping Division IT-37013 Caprino V.se (VR), ITALY www.fromm-stretch.com E-mail...
